Replacement of Bearing

IF NECESSARY, REPLACE REAR BEARING OUTER RACE
a. Remove the outer race from the extension housing.

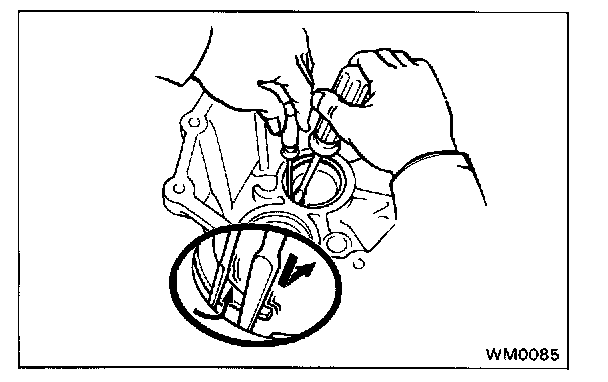

1. Using two screwdrivers, remove the snap ring.

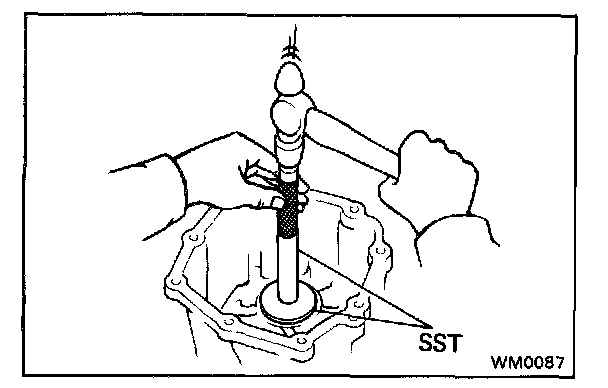

2. Using SST and a hammer, tap out the outer race.
SST 09608-12010 (09608-00020, 09608-00050)
b. Install the bearing outer race.




1. Using SST, install a new outer race.
SST 09608-35014 (09608-06020, 09608-06100)

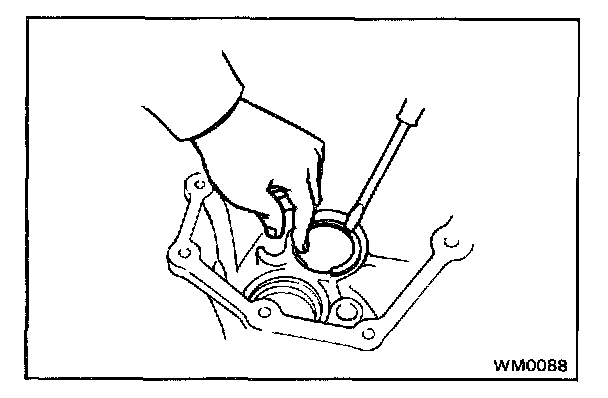

2. Using a screwdriver, install the snap ring.
