Replacement of Oil Seals

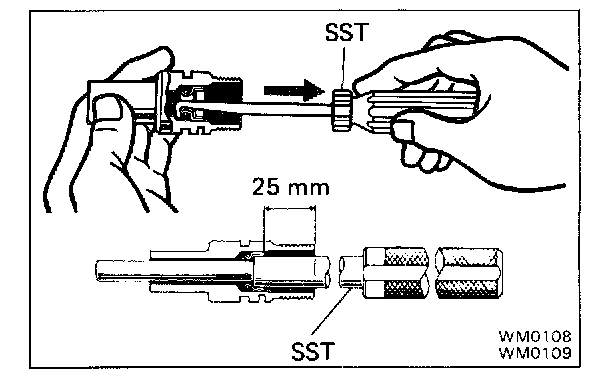

1. IF NECESSARY, REPLACE SPEEDOMETER GEAR OIL SEAL
a. Using SST, remove the oil seal.
SST 09921-00010
b. Using SST, install a new oil seal.
SST 09201-60011

Oil seal depth: 25 mm (0.98 in.)

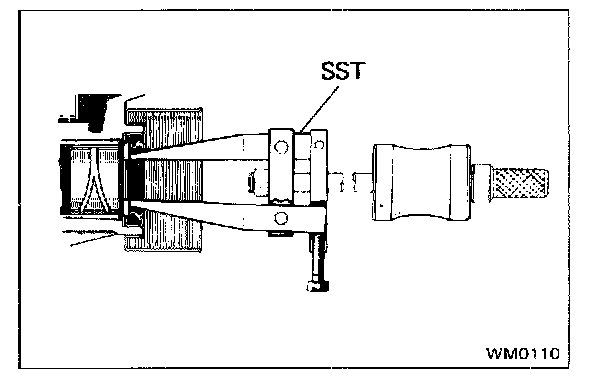

2. IF NECESSARY, REPLACE OIL SEAL




a. Using SST, remove the oil seal.
SST 09308-00010 or
09308-10010 w/ output shaft installed




b. Using SST, drive in a new oil seal.
SST 09325-20010
