Replacement of Oil Seal

IF NECESSARY, REPLACE FRONT BEARING RETAINER OIL SEAL

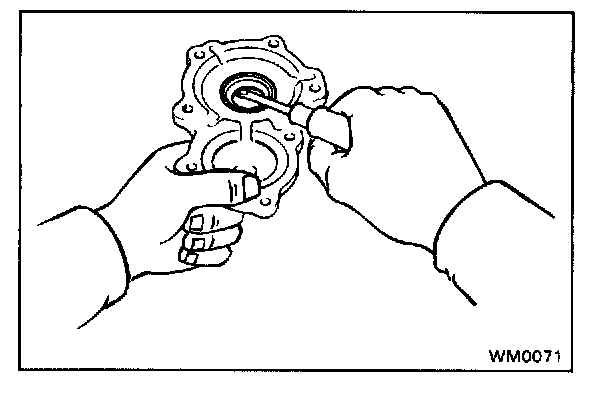

a. Using a screwdriver, pry out the oil seal.

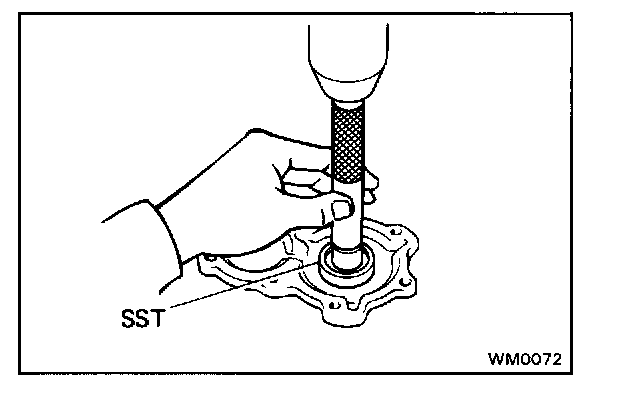

b. Using SST and a press, install a new oil seal.
SST 09608-20012 (09608-03020, 09608-00080)

Drive in depth: 11.4 - 12.0 mm (0.449 - 0.472 in.) from retainer end
