Replacement of Bearing

IF NECESSARY, REPLACE INPUT SHAFT BEARING

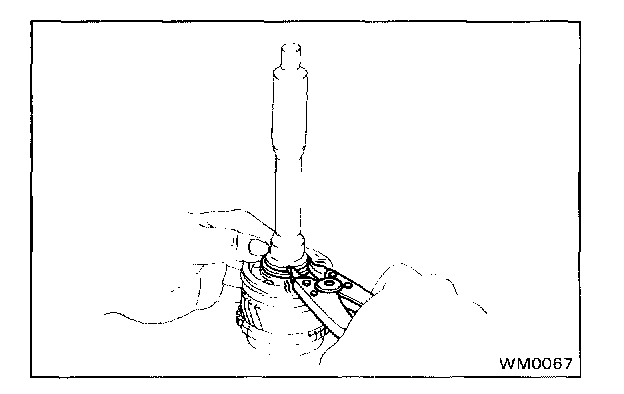

a. Using snap ring pliers, remove the snap ring.

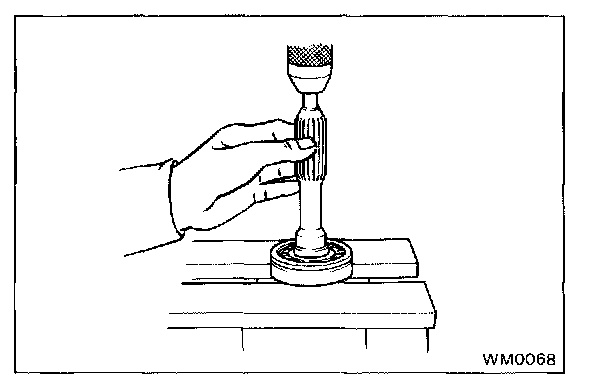

b. Using a press, remove the bearing.

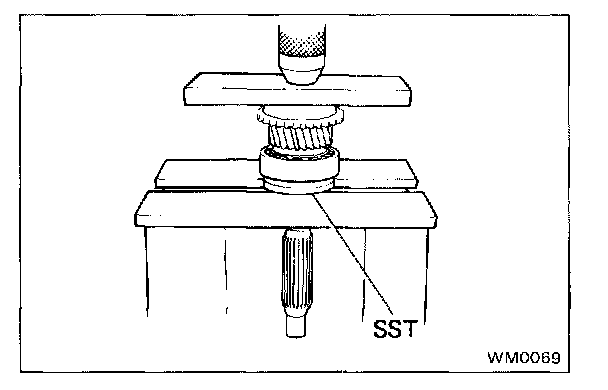

c. Using a press and SST, install a new bearing.
SST 09506-35010

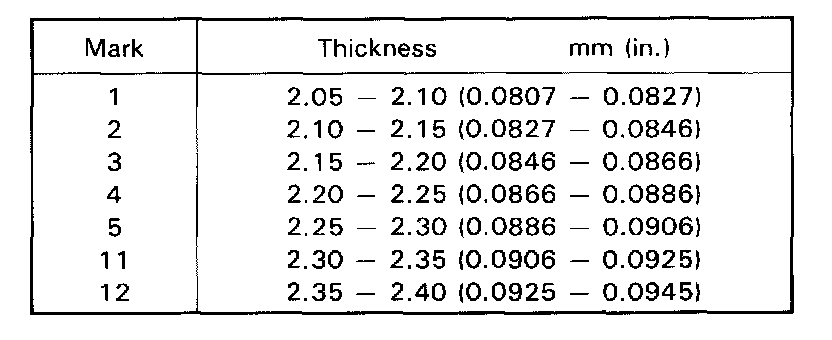

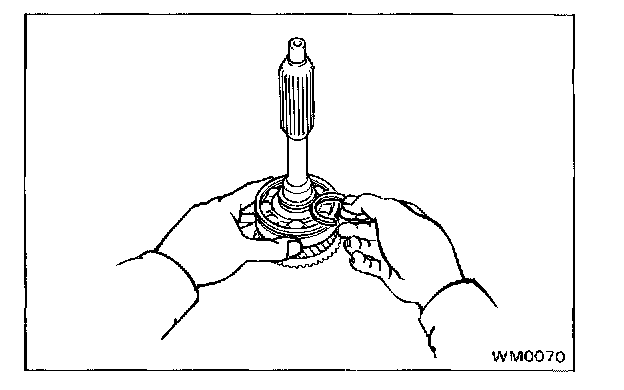

d. Select a snap ring that will allow minimum axial play and install it on the shaft.
