DTC 15

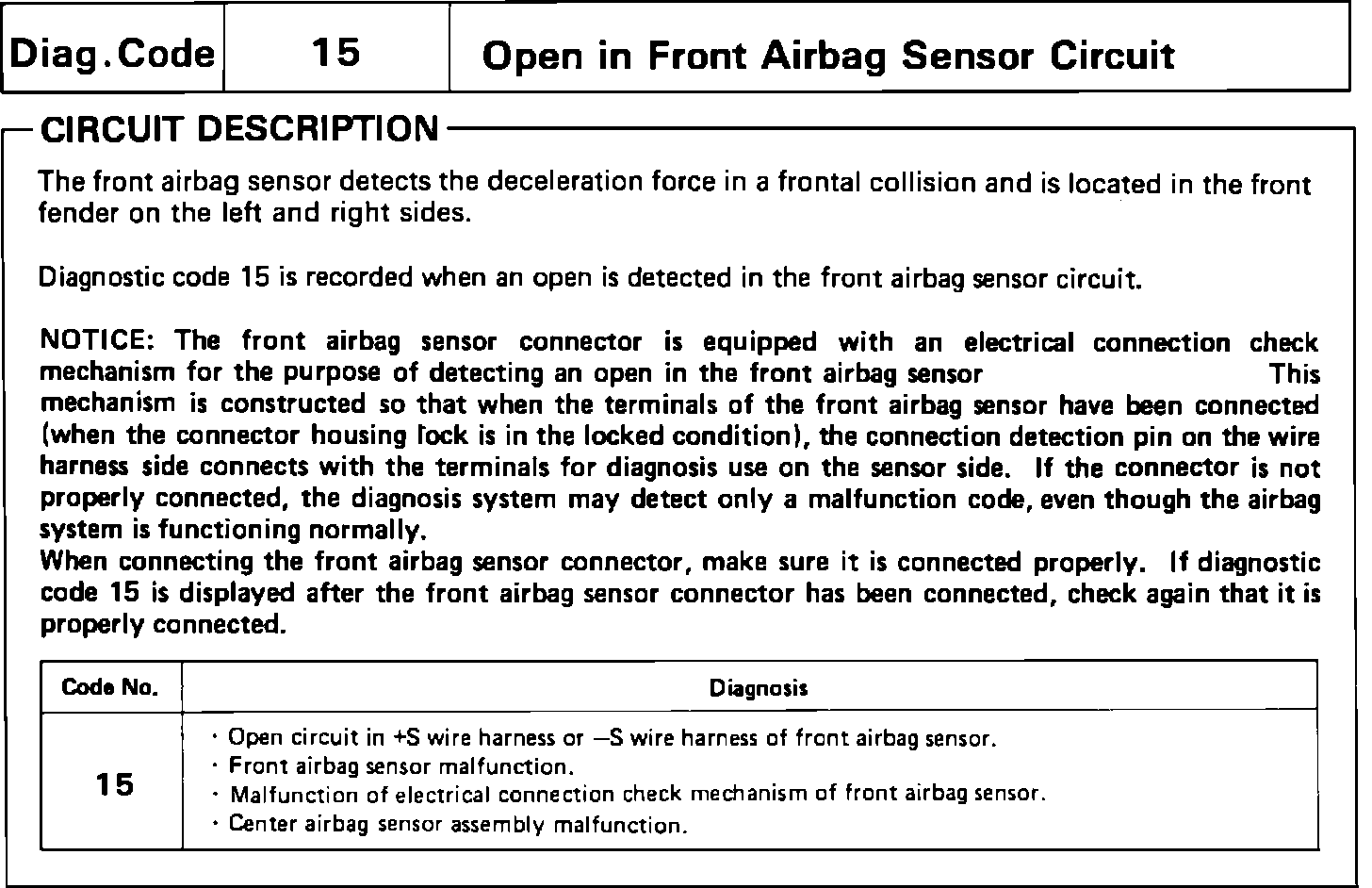

Fig. 31 Diagnostic Code 15 (Open In Front Airbag Sensor Circuit, Part 1 Of 5). Celica, MR2 & Supra:

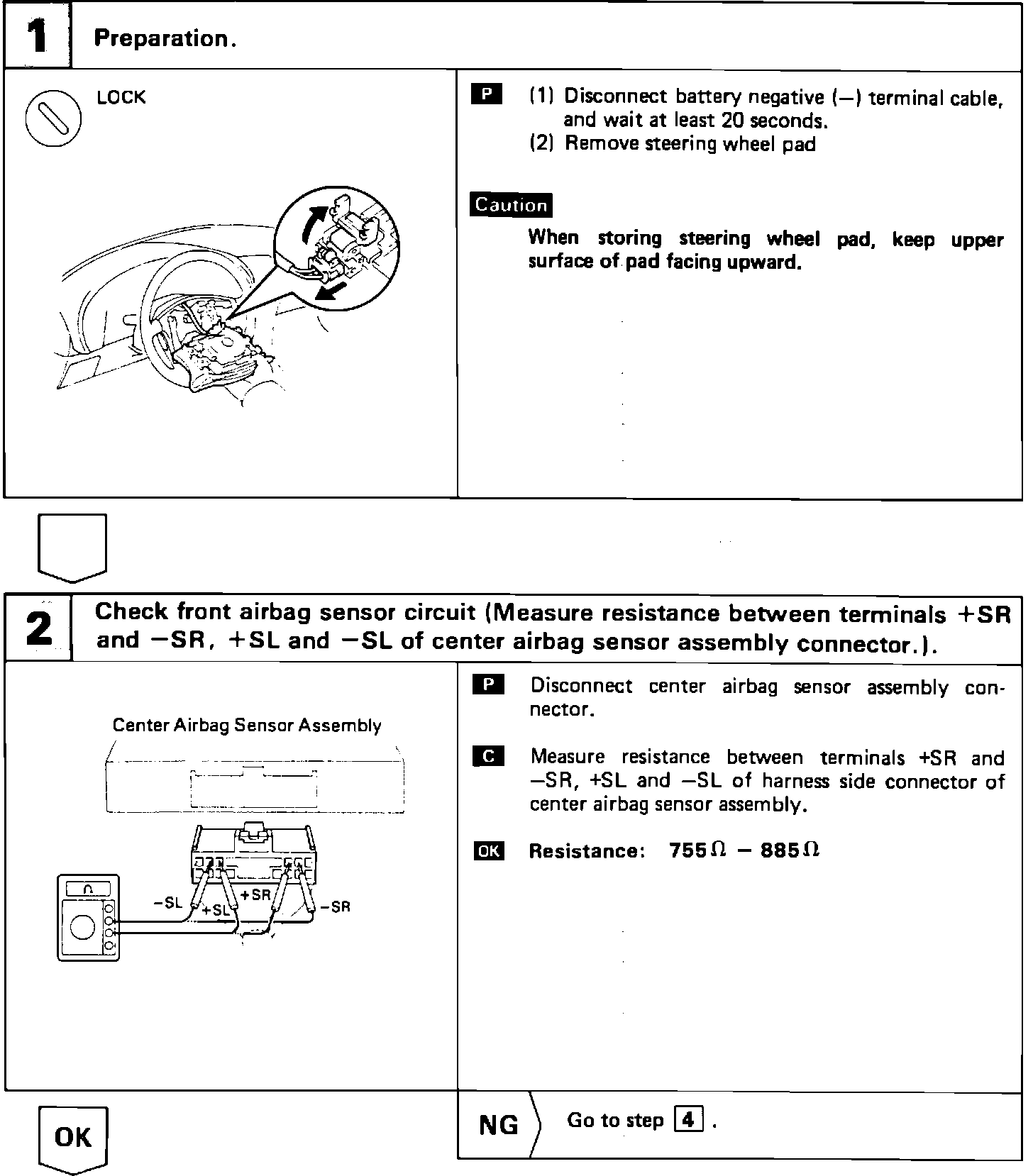

Fig. 31 Diagnostic Code 15 (Open In Front Airbag Sensor Circuit, Part 2 Of 5). Celica, MR2 & Supra:

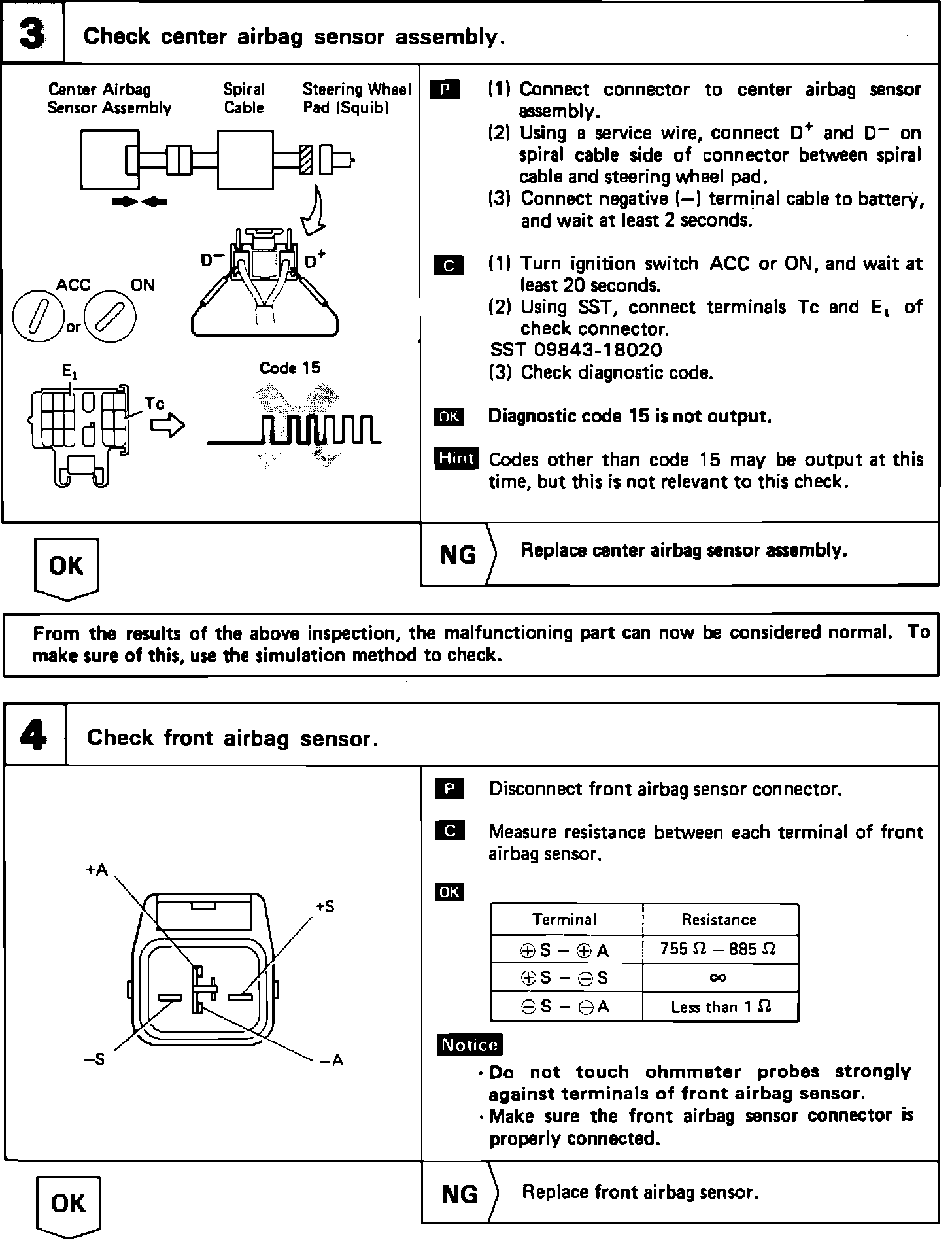

Fig. 31 Diagnostic Code 15 (Open In Front Airbag Sensor Circuit, Part 3 Of 5). Celica & Supra:

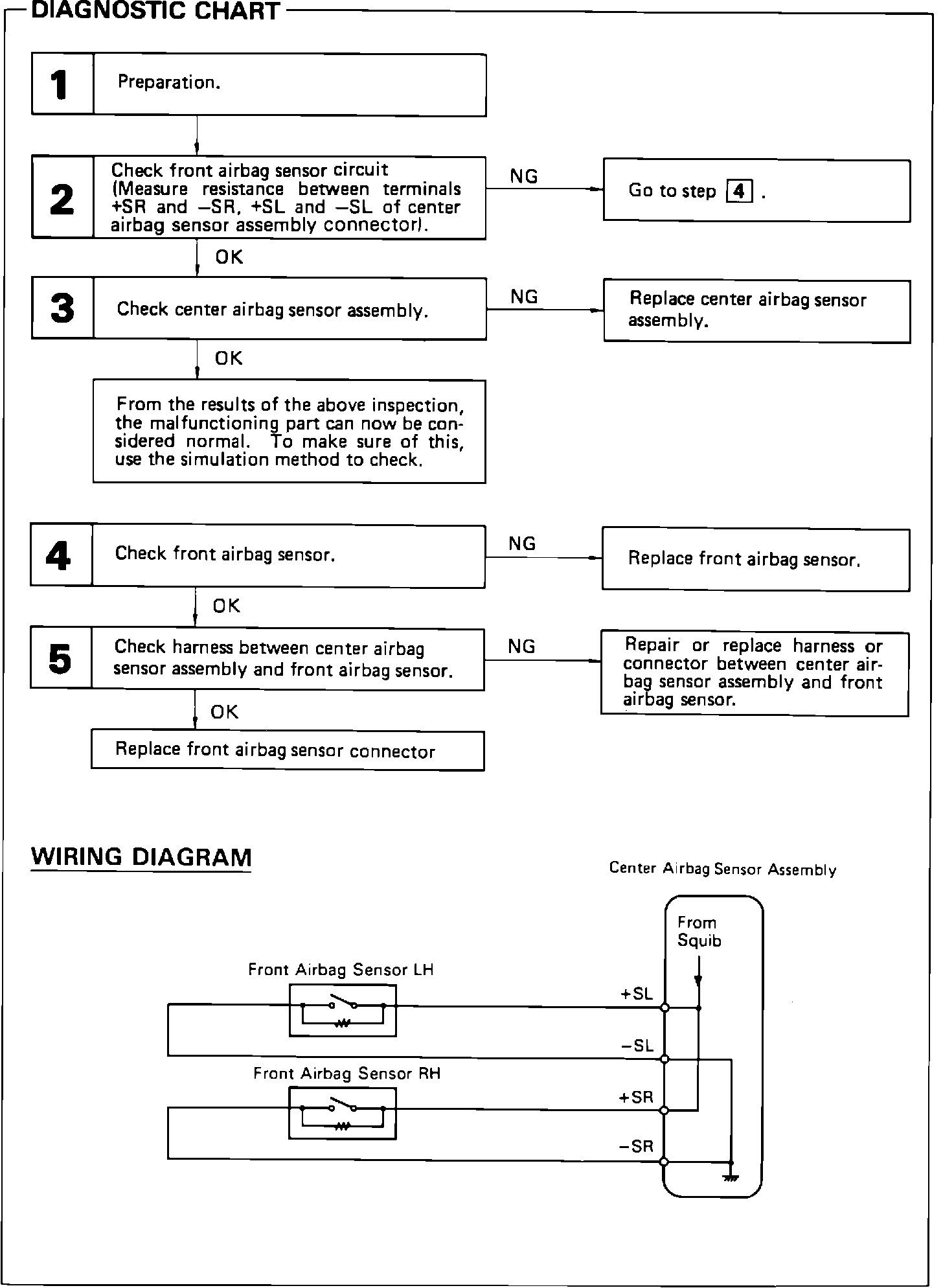

Fig. 31 Diagnostic Code 15 (Open In Front Airbag Sensor Circuit, Part 4 Of 5). Celica, MR2 & Supra:

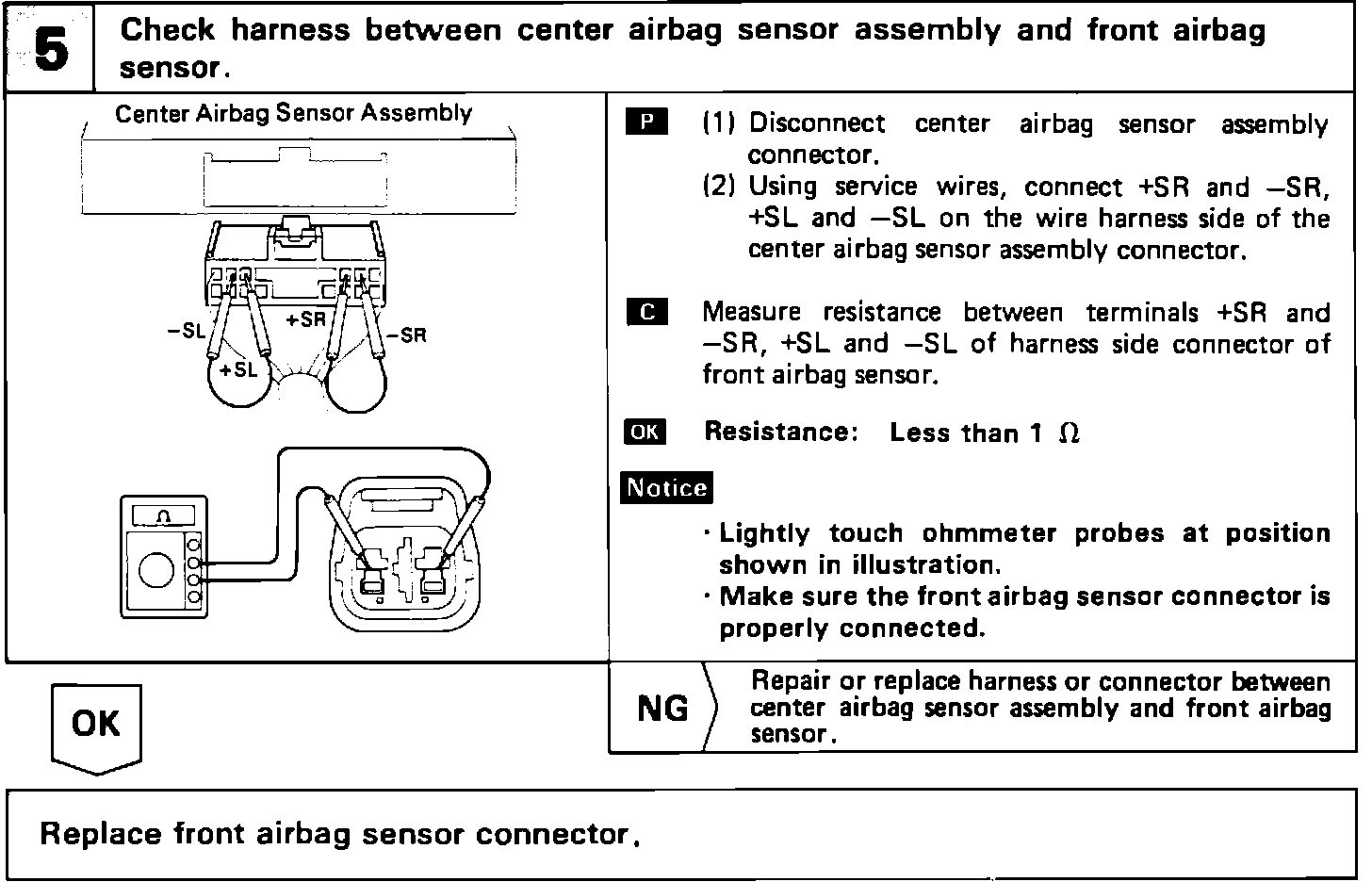

Fig. 31 Diagnostic Code 15 (Open In Front Airbag Sensor Circuit, Part 5 Of 5). Celica & Supra:
