DTC 41

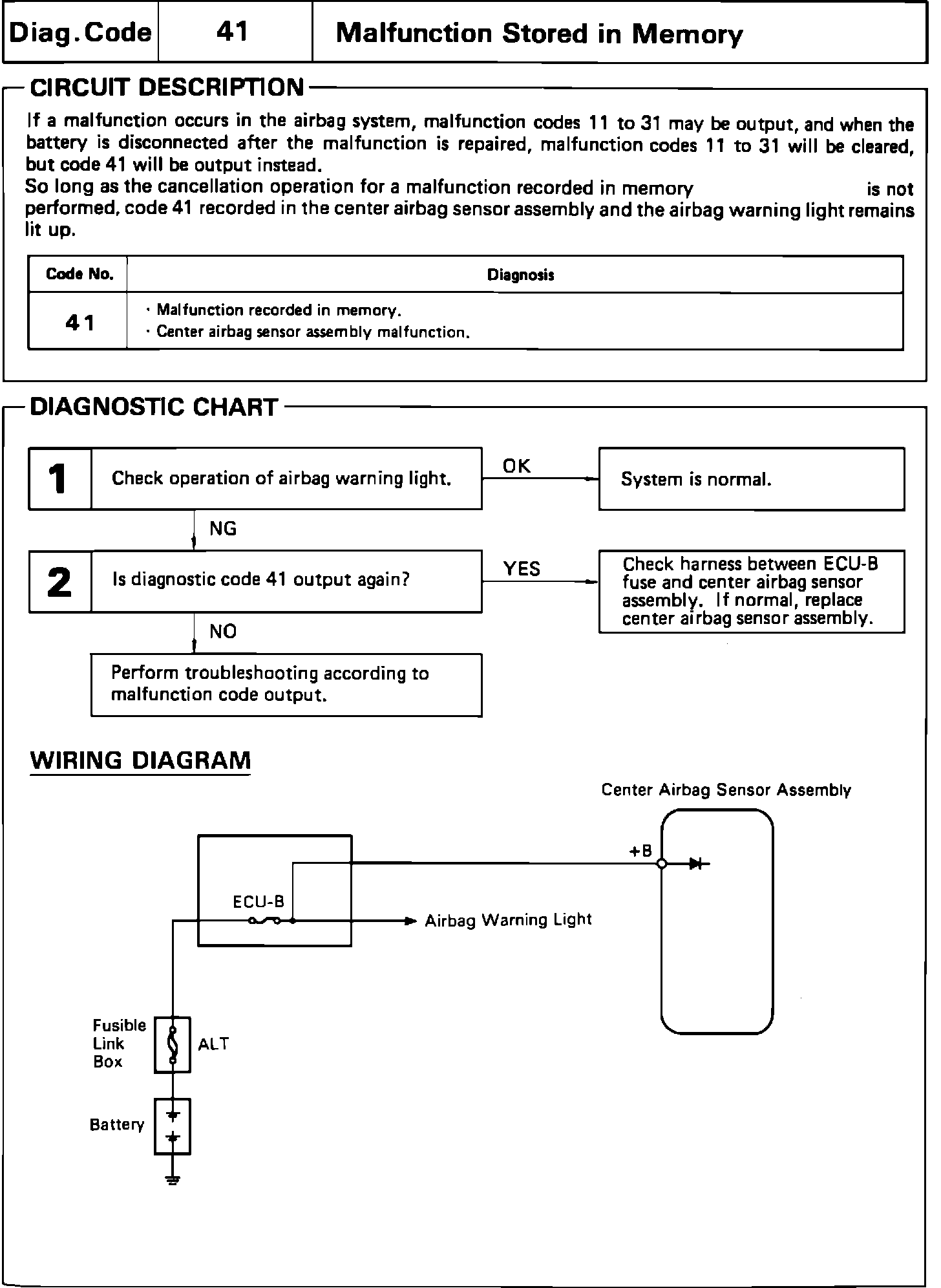

Fig. 34 Diagnostic Code 41 (Malfunction Stored In Memory, Part 1 Of 2). Celica, MR2 & Supra:

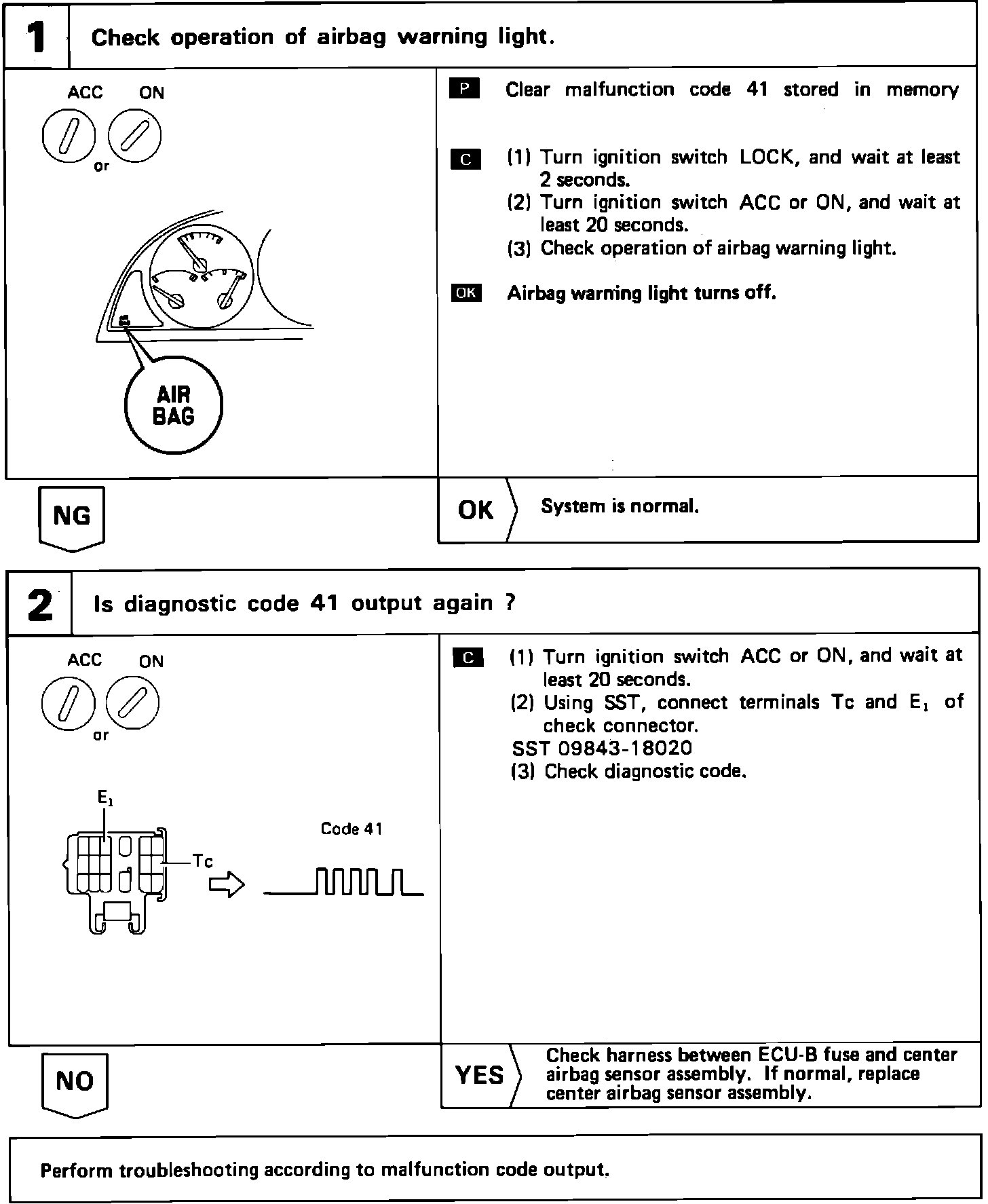

Fig. 34 Diagnostic Code 41 (Malfunction Stored In Memory, Part 2 Of 2). Celica, MR2 & Supra:
