Computers and Control Systems

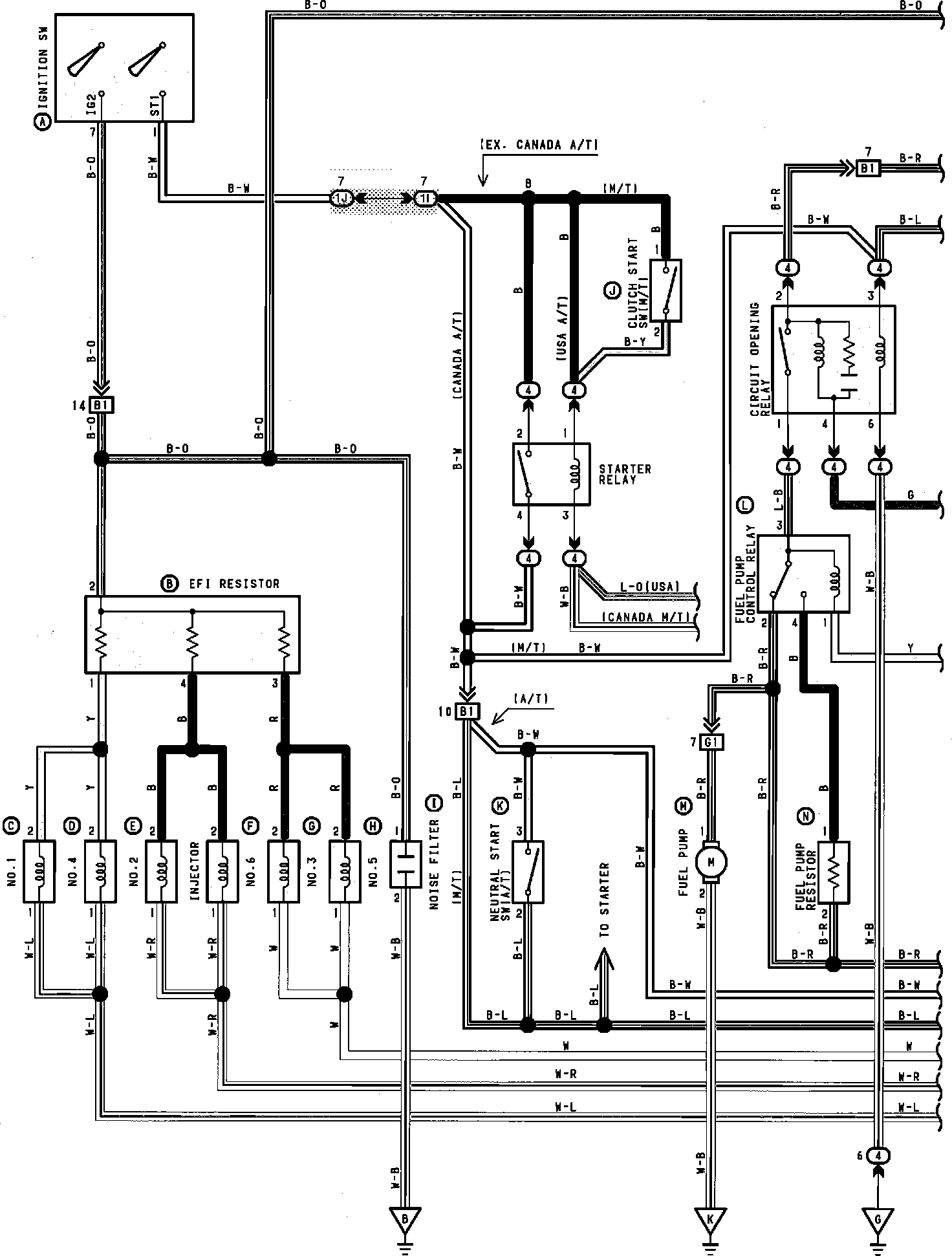

Engine Controls (7M-GTE Engine):

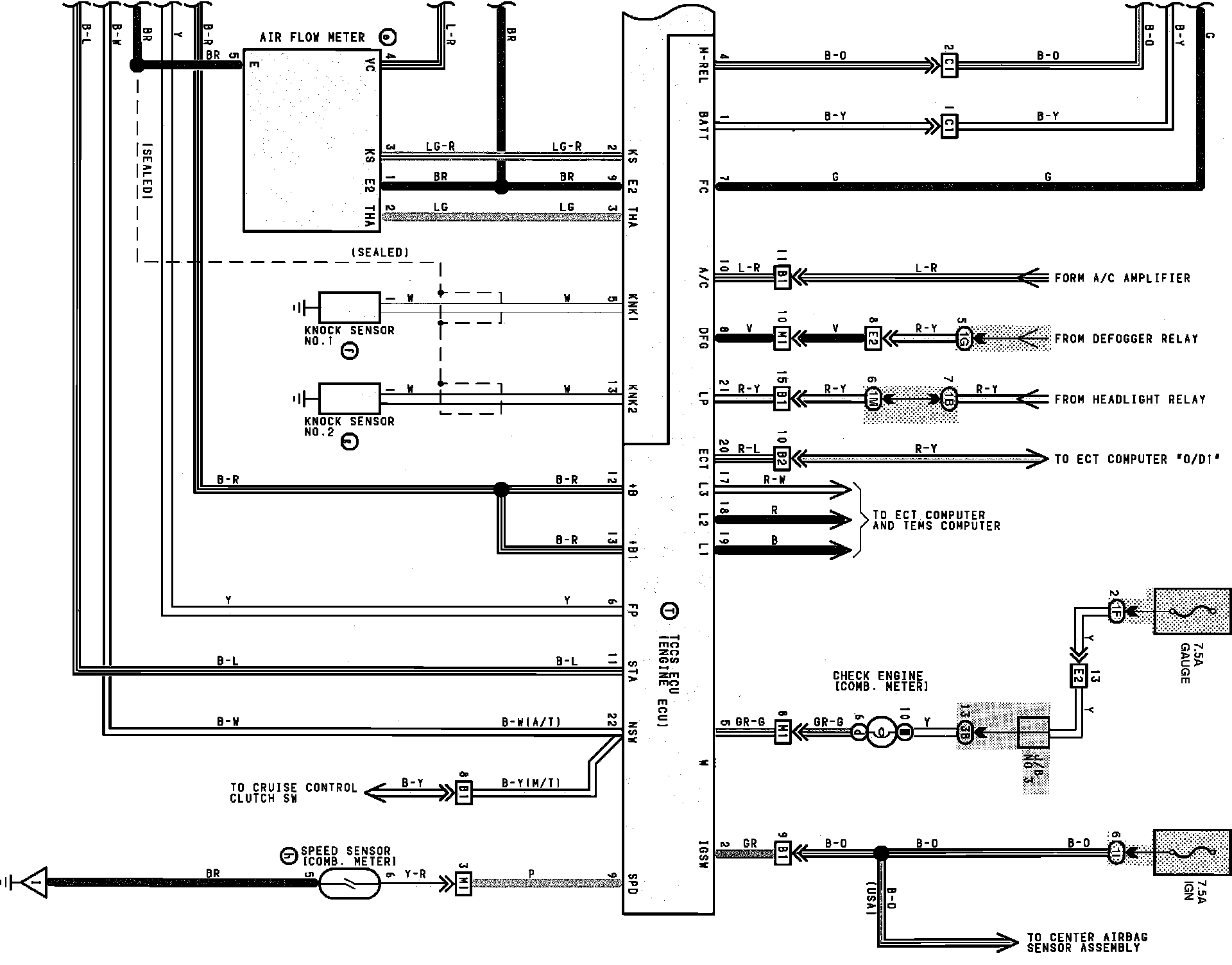

Engine Controls (7M-GTE Engine):

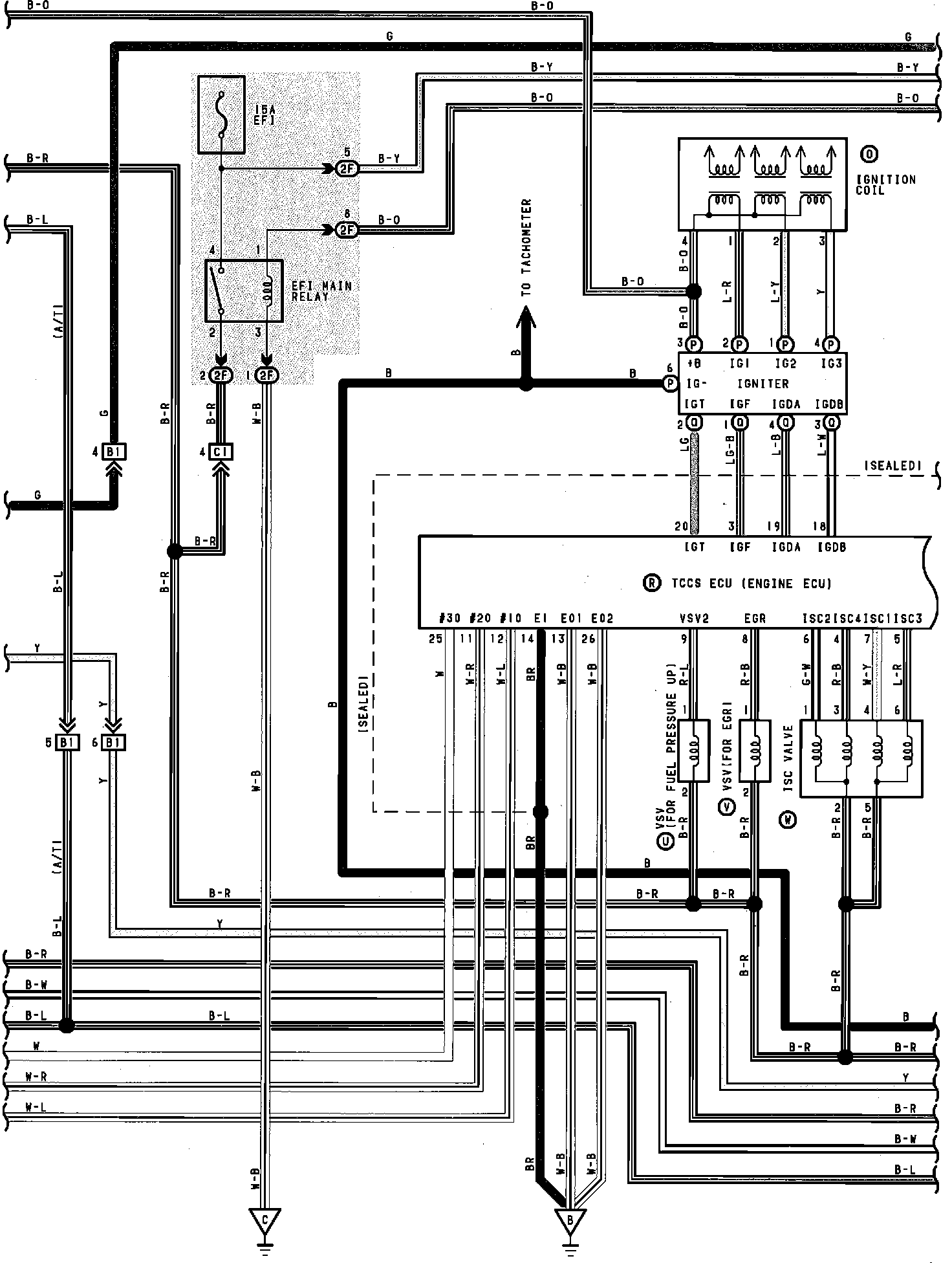

Engine Controls (7M-GTE Engine):



Engine Controls (7M-GTE Engine):
