Supra L6-3.0L DOHC Turbo (7M-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>

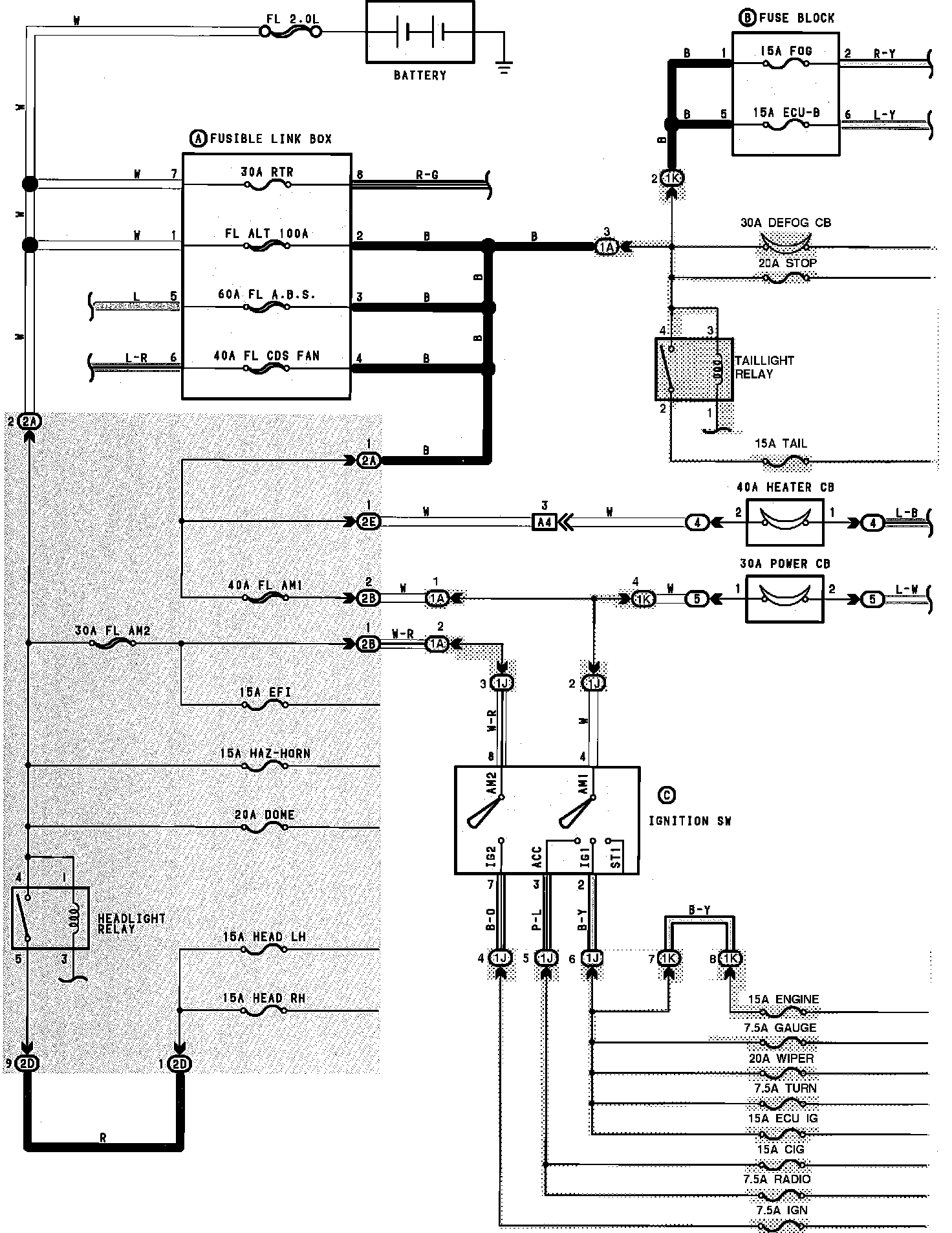

Power Source
Power Source
Power Source:
