Suspension Control ( Automatic - Electronic )
Suspension Control ( Automatic - Electronic )

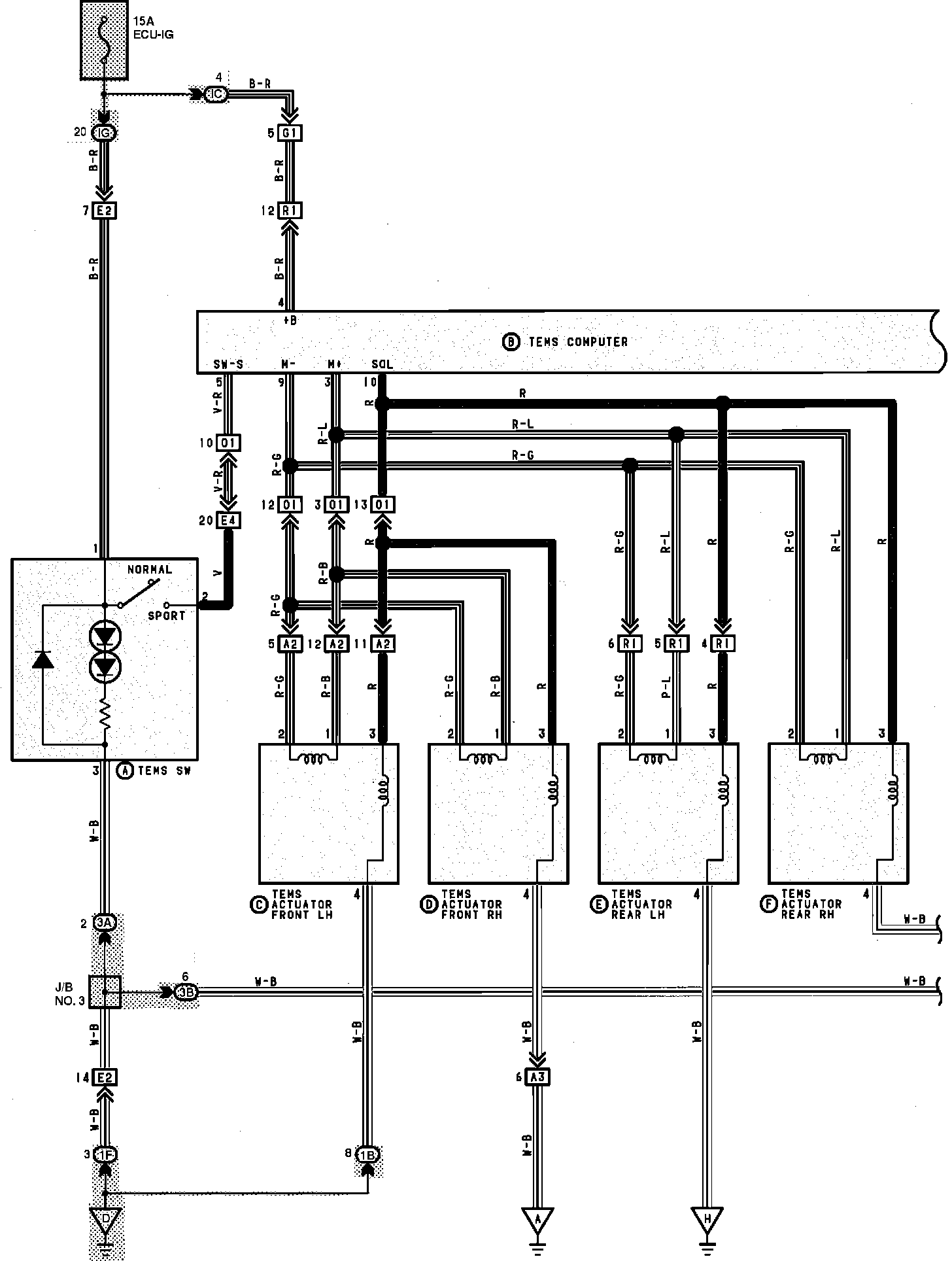

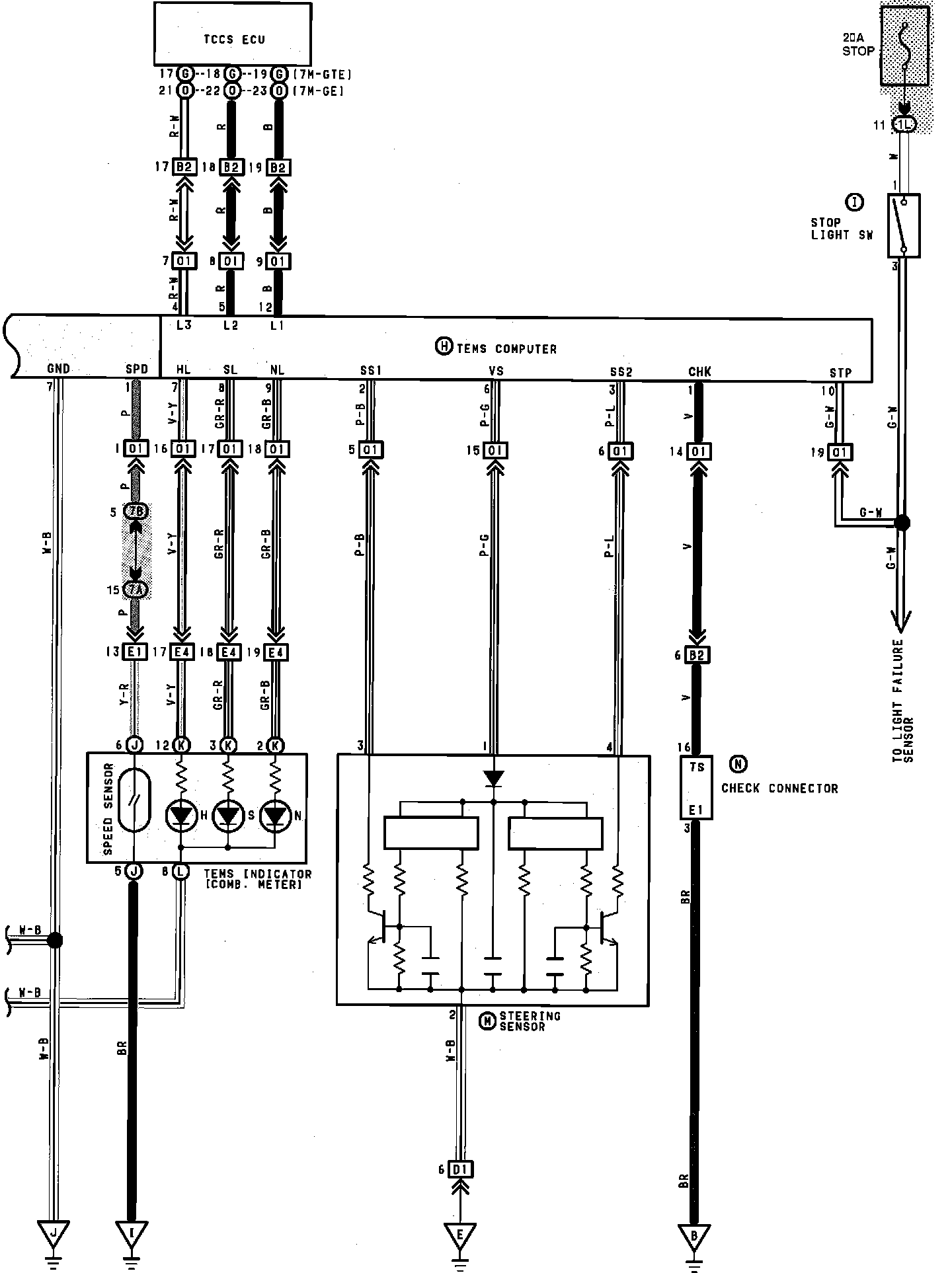

Toyota Electronic Modulated Suspension (TEMS):
Toyota Electronic Modulated Suspension (TEMS):
