Illumination

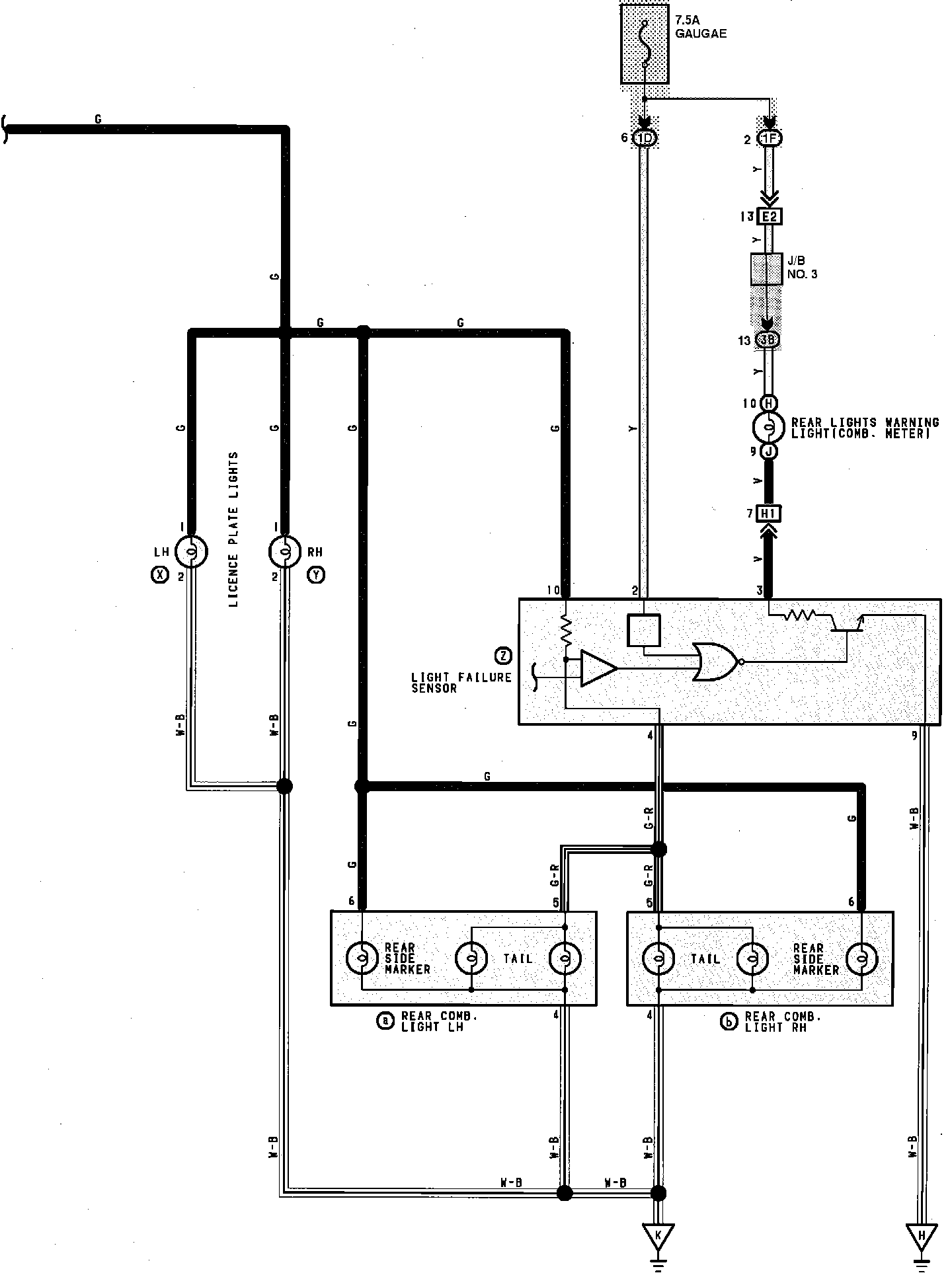

Taillights And Illumination:

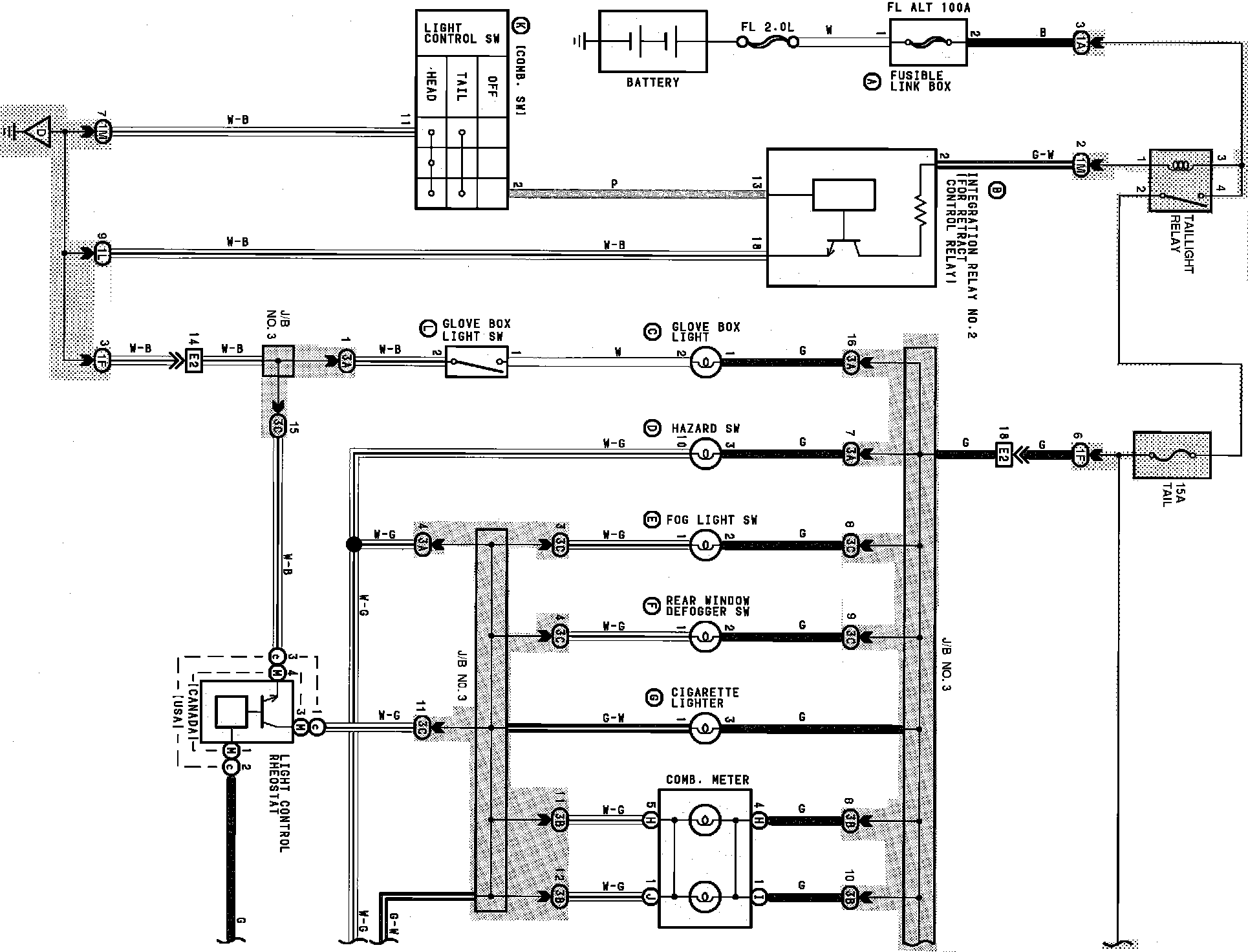

Taillights And Illumination:



Taillights And Illumination:
