Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Supra L6-3.0L DOHC Turbo (7M-GTE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>

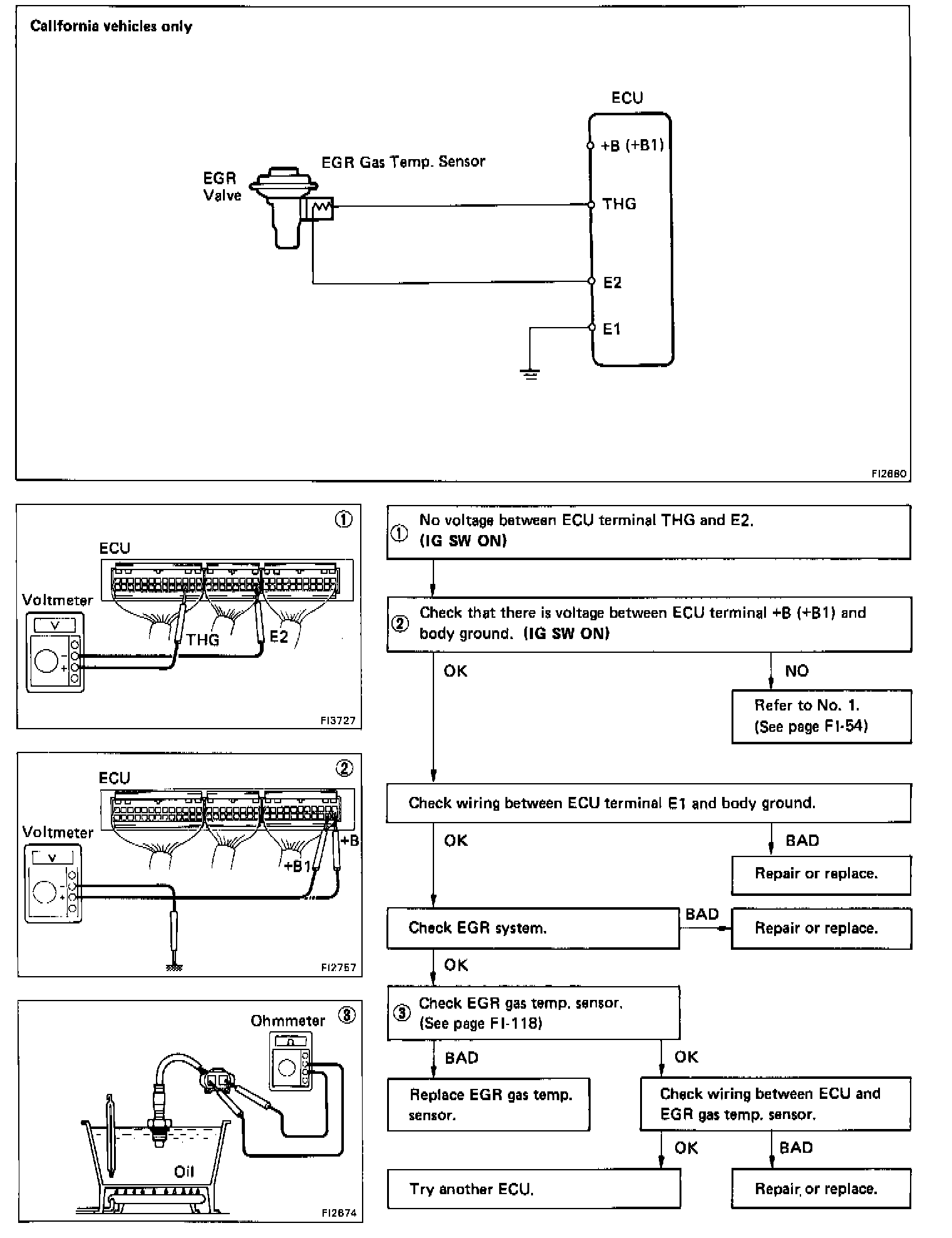

EGR Test (California)
EGR Test (California)
