Fuel Injector Resistor: Testing and Inspection

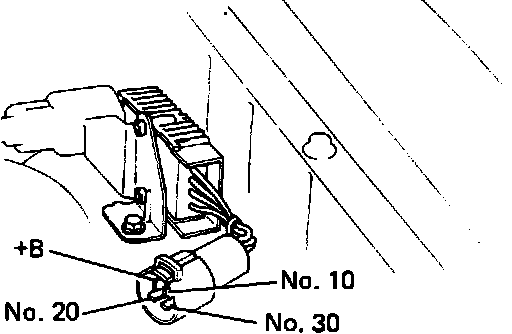

1. Unplug the Solenoid Resistor, located on the LH side of the engine compartment.
2. Using an Ohmmeter, measure the resistance between terminal +B and the other three terminals.

Injector Solenoid Resistor:

Resistance: 3 Ohms each

3. If not as specified, replace the Solenoid Resistor.
4. Reconnect Solenoid Resistor plug.
