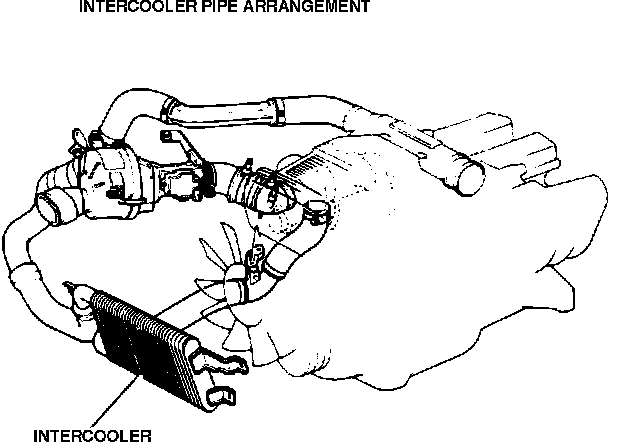

Intercooler

1. Visually inspect the Intercooler for structural damage.
2. Disconnect the two air hose clamps, remove the four mounting bolts and remove the Intercooler from the front grill.

Intercooler:

3. Using compressed air, blow through Intercooler air inlet and ensure that no restrictions exist.
4. If a problem is found and the Intercooler cannot be repaired, replace the Intercooler.
5. Reinstall the Intercooler in the engine compartment.
