D/F Technical Data

Rear Differential, Pinion Preload/Side Gear Thickness:

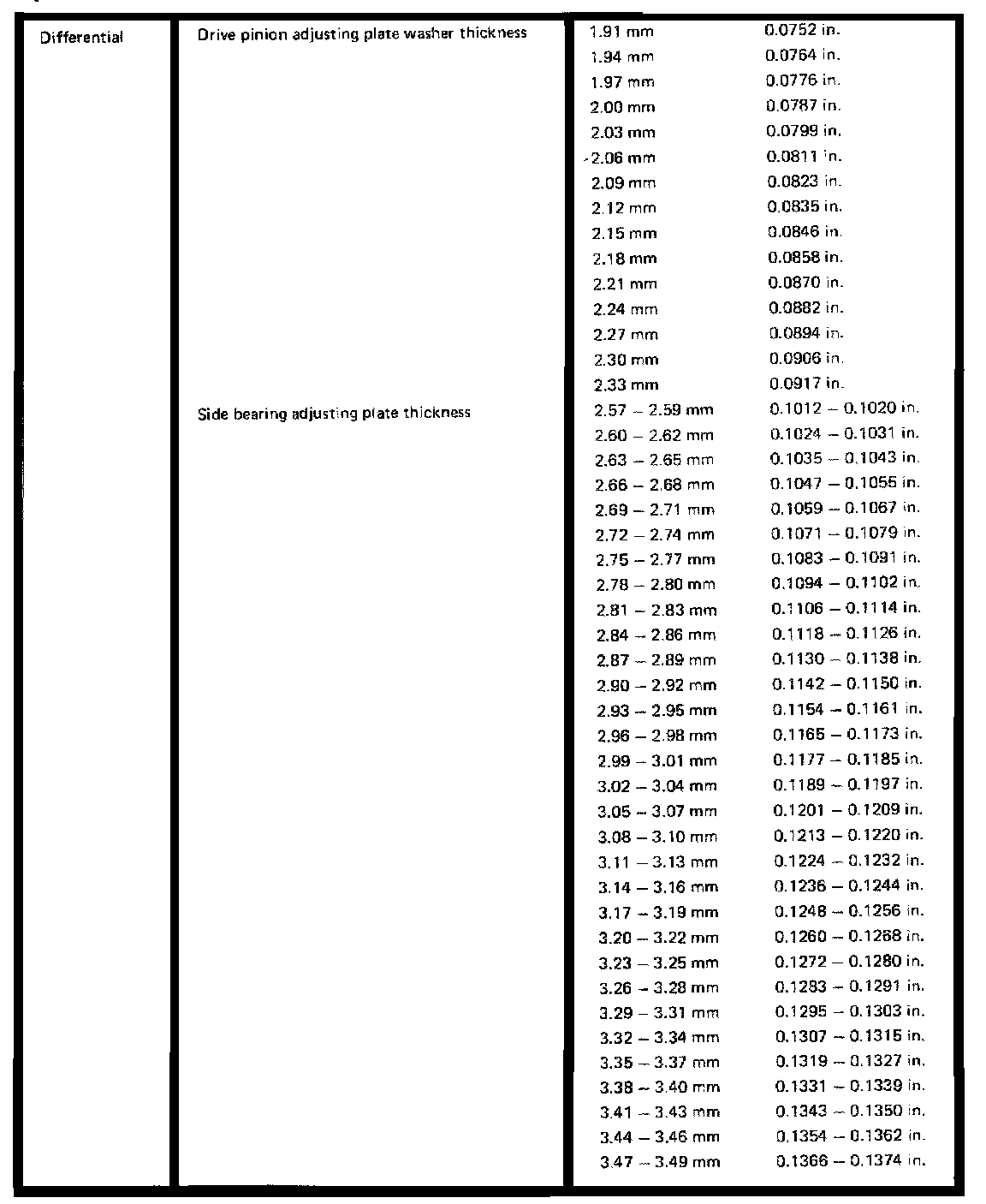

Rear Differential, Drive Pinion/Side Bearing Thickness:
