Removal and Installation

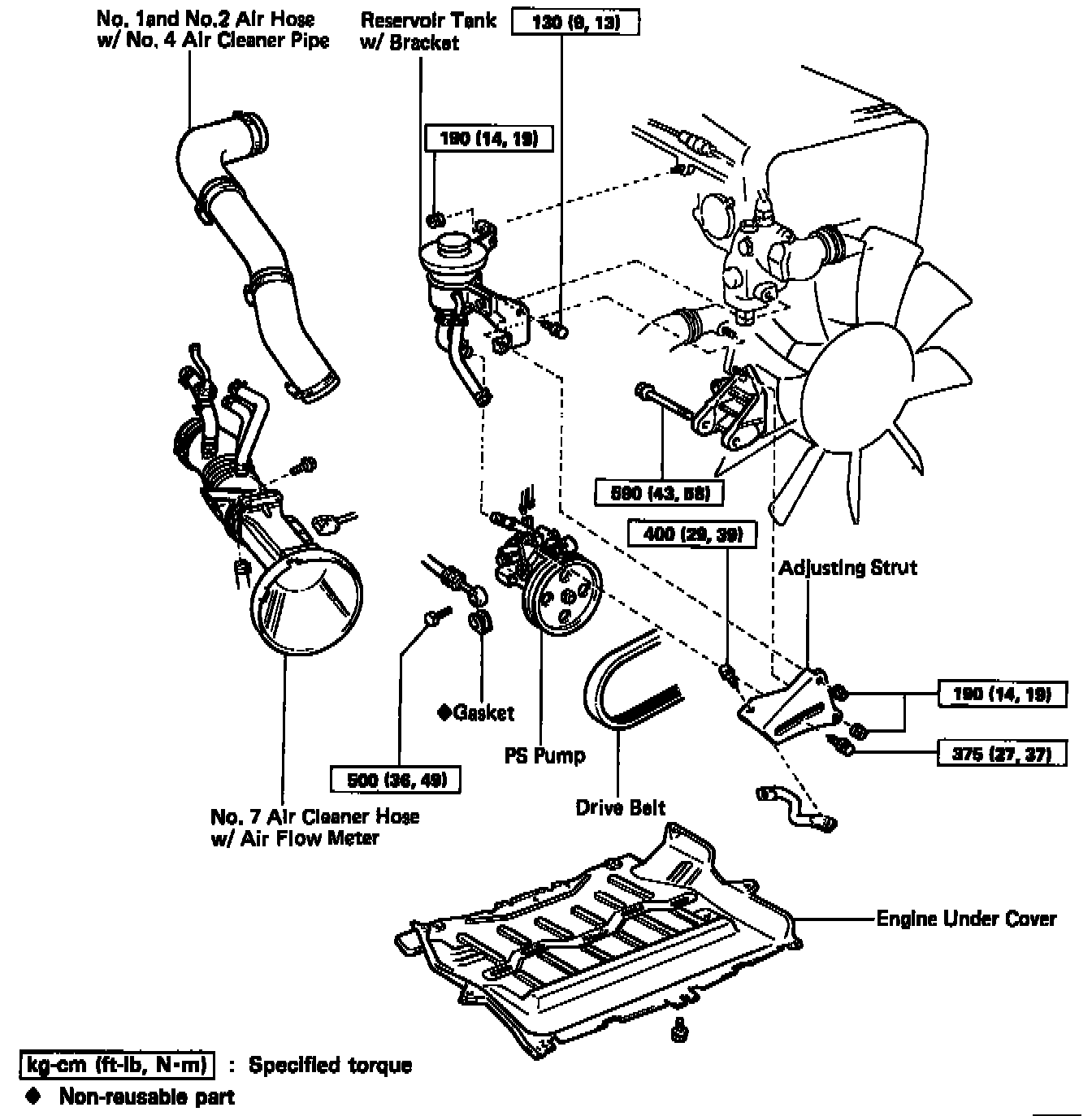

Power Steering Pump (7m-gte):

1. Remove drive belt and pulley
a. Using SST, to hold the pulley, loosen the pulley set nut.
SST 09278-54012
b. Remove the drive belt, pulley installation nut, pulley and woodruff key
2. Adjust drive belt tension after installing ps pump
3. Bleed power steering system
