Solenoid Valve

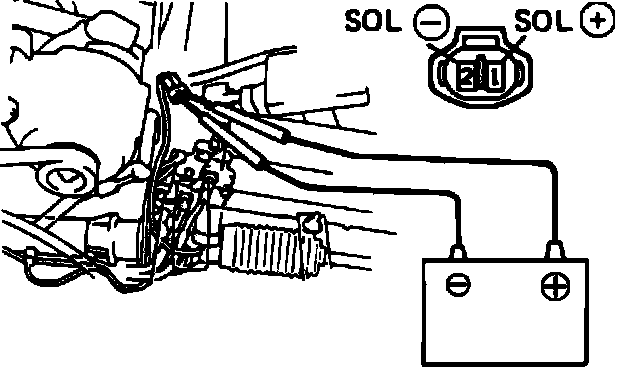

Fig. 44 Solenoid Valve Inspection. Supra:

1. Disconnect solenoid electrical connector.
2. Measure resistance between terminals SOL+ and SOL -, Fig. 44, resistance should be 6.0-11.0 ohms.
3. Reconnect electrical connector.
