With Progressive Power Steering (PPS) System

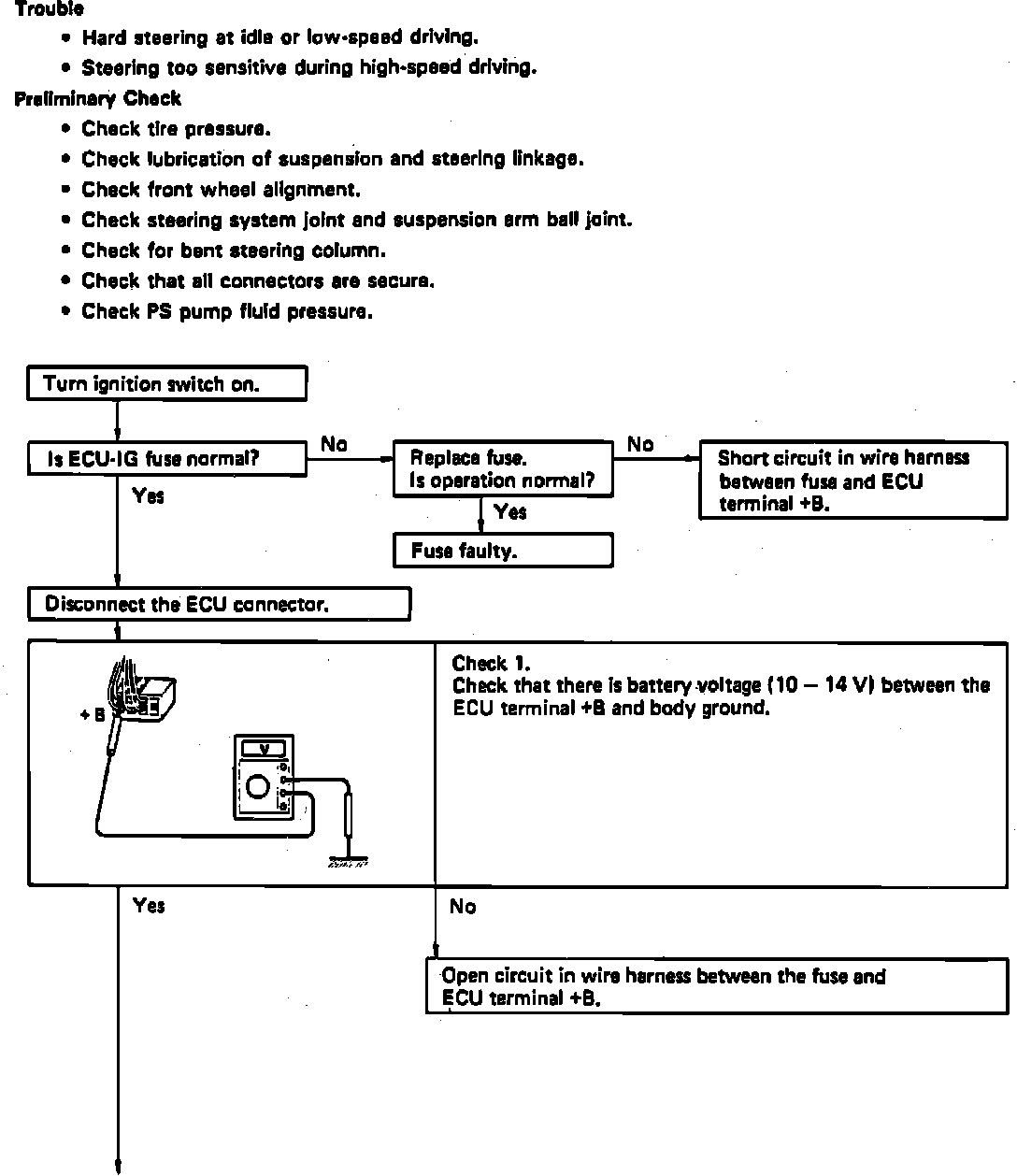

Fig. 43 PPS Troubleshooting (Part 1 Of 3). Supra:

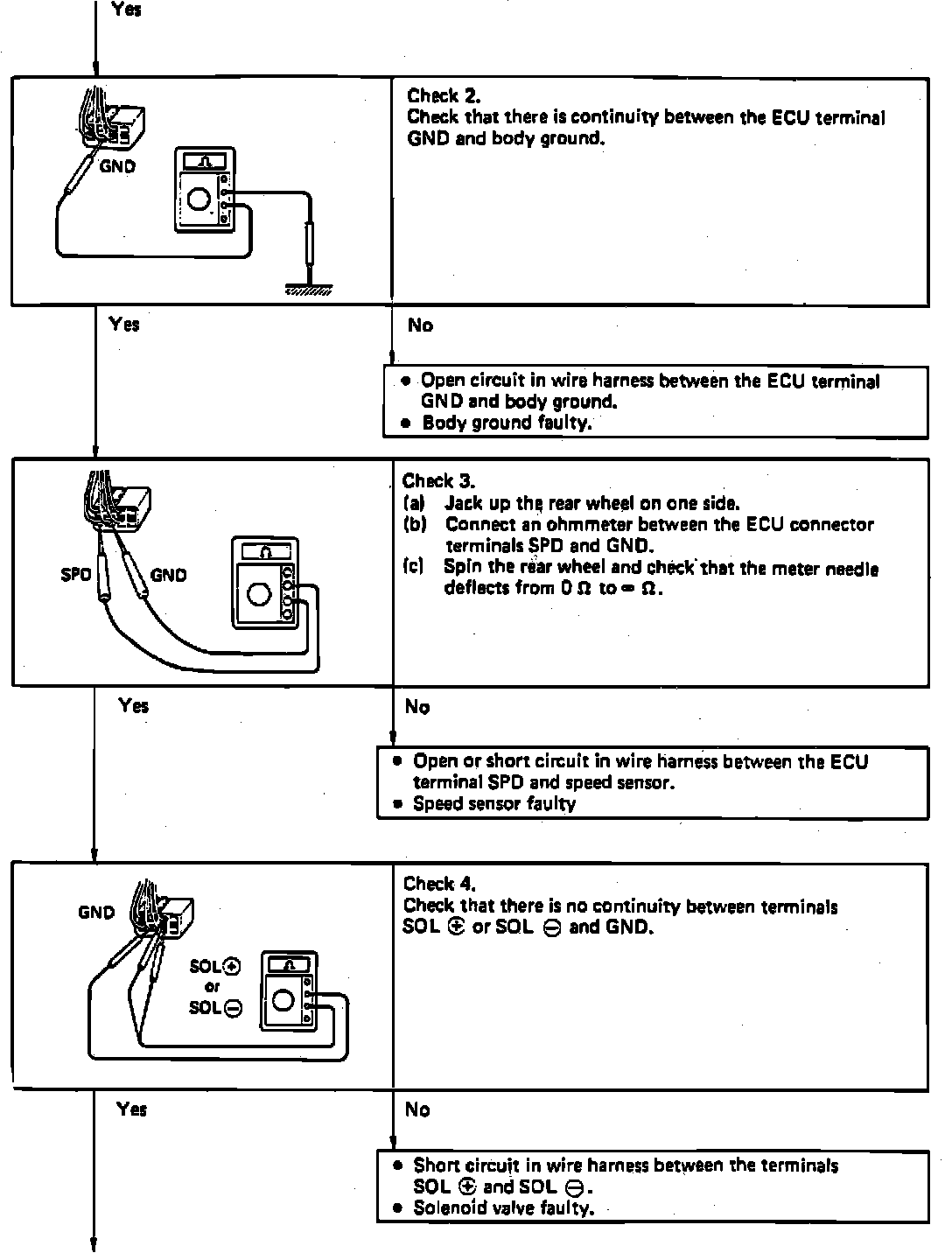

Fig. 43 PPS Troubleshooting (Part 2 Of 3). Supra:

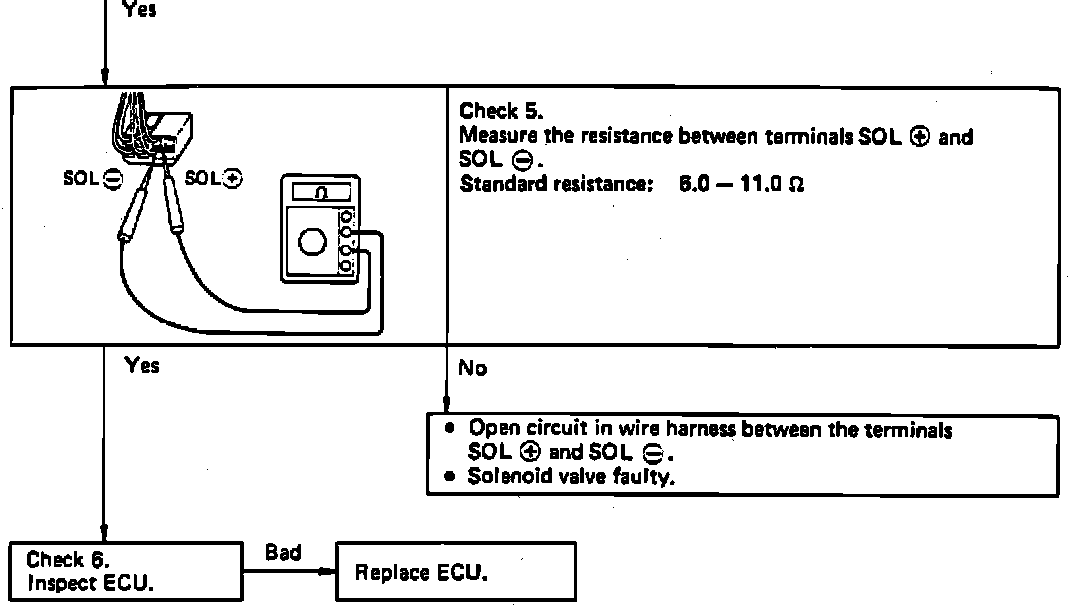

Fig. 43 PPS Troubleshooting (Part 3 Of 3). Supra:

Refer to Fig. 43, for troubleshooting procedures.
