Assembly of Valve Body

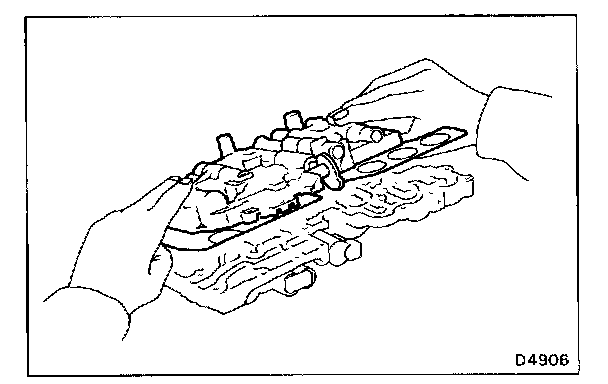

1. POSITION NEW NO.1 GASKET ON UPPER VALVE BODY
Align a new No.1 gasket at each bolt hole.

2. POSITION VALVE BODY PLATE ON NO.1 GASKET

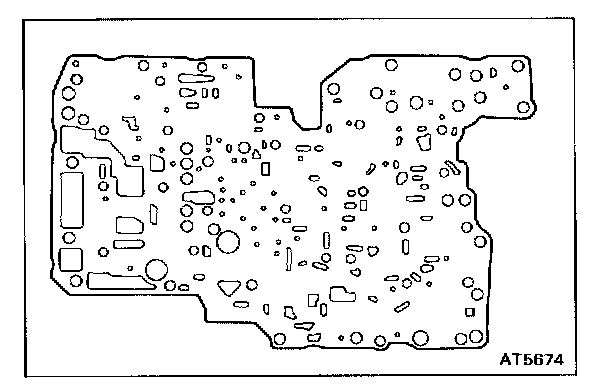

Align the plate at each bolt hole.




3. POSITION NEW NO.2 GASKET ON PLATE
Align a new No.2 gasket at each bolt hole.




4. PLACE UPPER VALVE BODY WITH PLATE AND GASKETS ON TOP OF LOWER VALVE BODY
Align each bolt hole and gasket in the valve body.




5. INSTALL THE TWENTY-FIVE BOLTS TO UPPER VALVE BODY

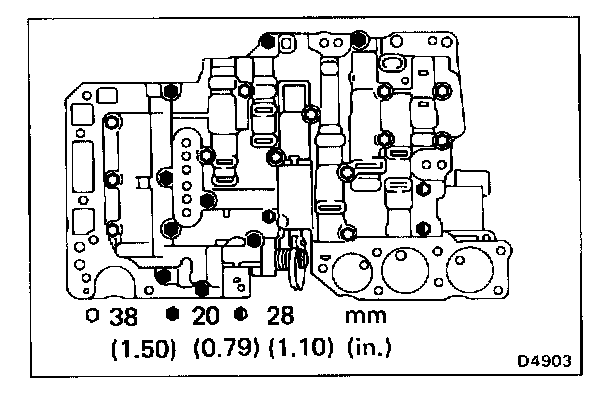

HINT: Each bolt length (mm, in.) is indicated in the figure.

Torque: 65 kg-cm (56 in.-lb, 6.4 N.m)




6. INSTALL MANUAL VALVE

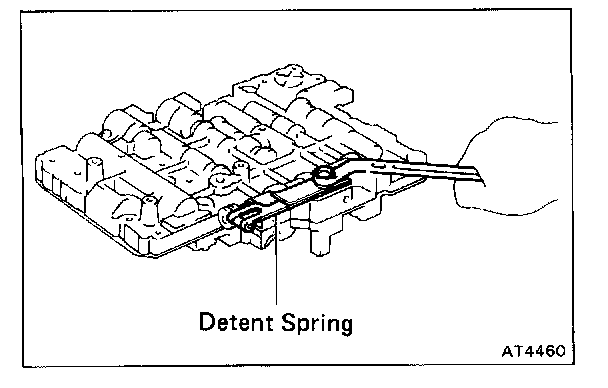

7. INSTALL DETENT SPRING

Torque: 100 kg-cm (7 ft-lb. 10 N.m)
