Replacement of Oil Seal

1. IF NECESSARY, REPLACE EXTENSION HOUSING OIL SEAL




a. Remove the dust deflector.

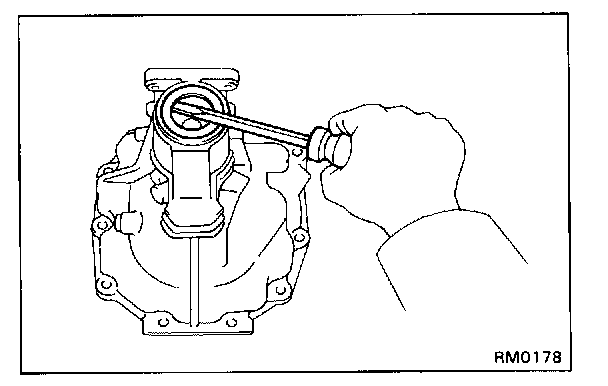

b. Using a screwdriver, pry out the oil seal.

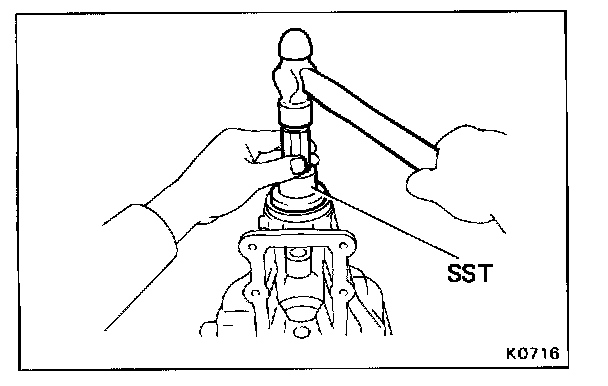

c. Using SST and a hammer, drive in a new oil seal.
SST 09325-40010
d. Install the dust deflector.
2. IF NECESSARY, REPLACE SPEEDOMETER DRIVEN GEAR OIL SEAL

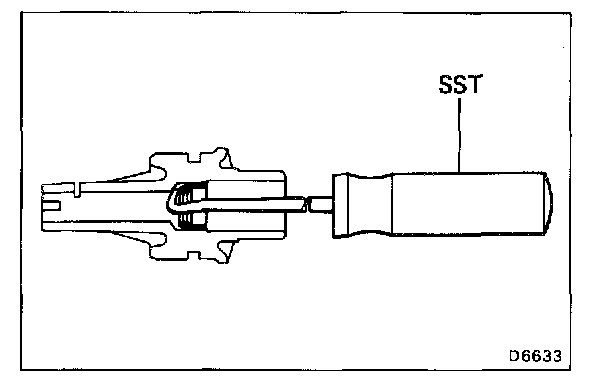

a. Using SST, pull out the oil seal.
SST 09921-00010

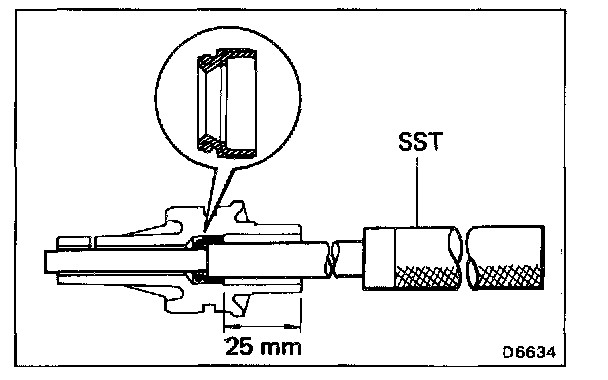

b. Using SST, drive in a new oil seal into the sleeve.
SST 09201-60011

Drive in depth: 25 mm (0.98 in.)
