Replacement of Oil Seal

IF NECESSARY, REPLACE FRONT BEARING RETAINER OIL SEAL

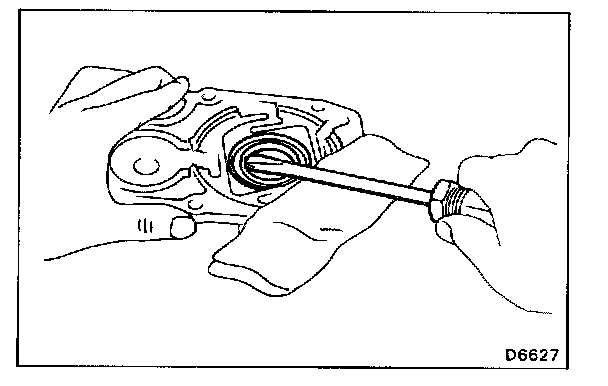

a. Using a screwdriver, pry out the oil seal.

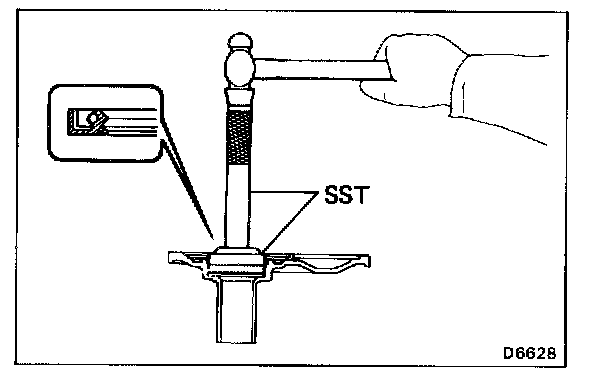

b. Using SST and a hammer, drive in a new oil seal.
SST 09608-35014 (09608-06020, 09608-06090)

Drive in depth: 11.2 - 12.2 mm (0.441 - 0.480 in.) Transmission case installation surface
