Tercel Hatchback L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

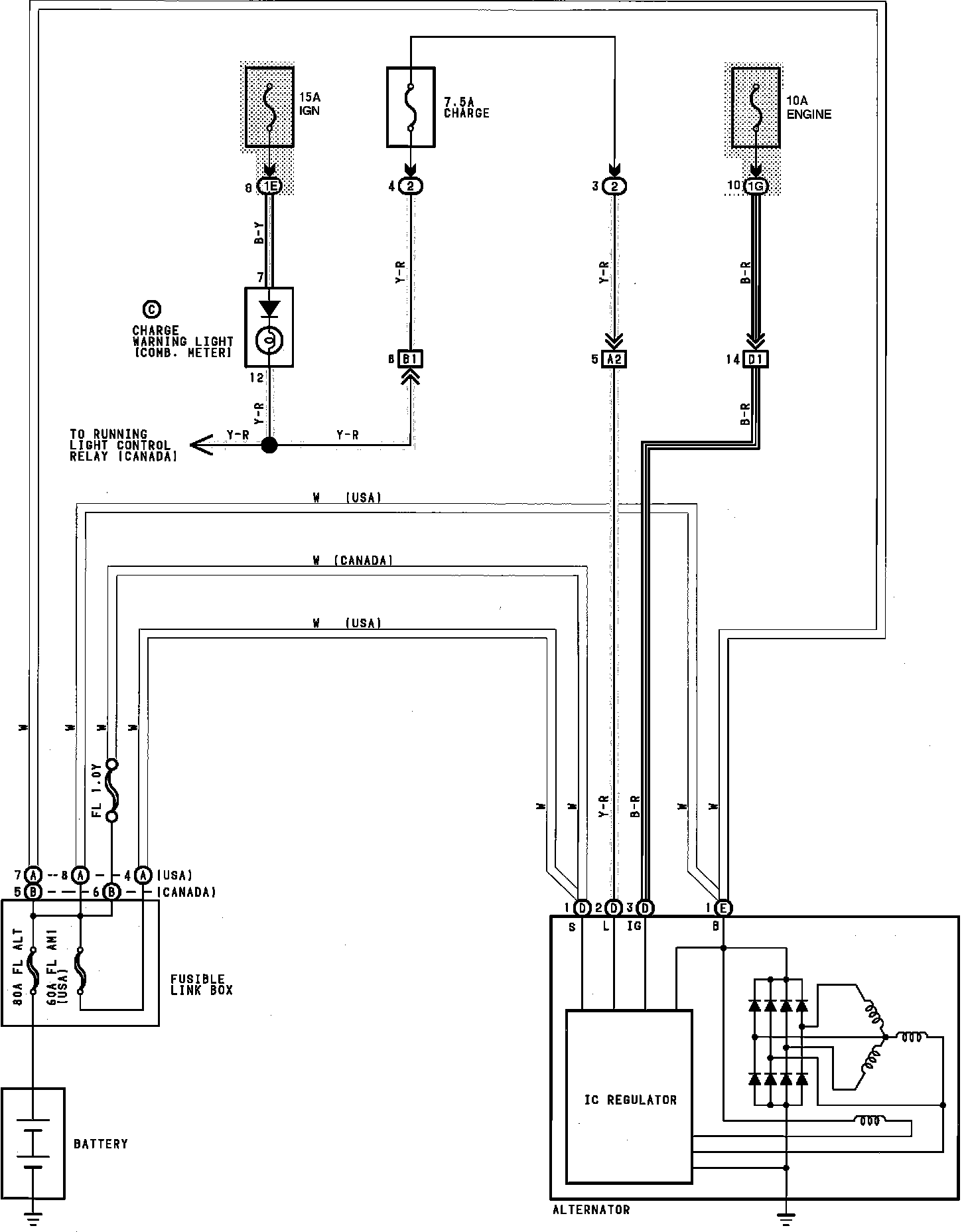

Charging System
Charging System
Charging:
