Toyota
>>
1990
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior
>>
Less Theft Deterrent System
Less Theft Deterrent System

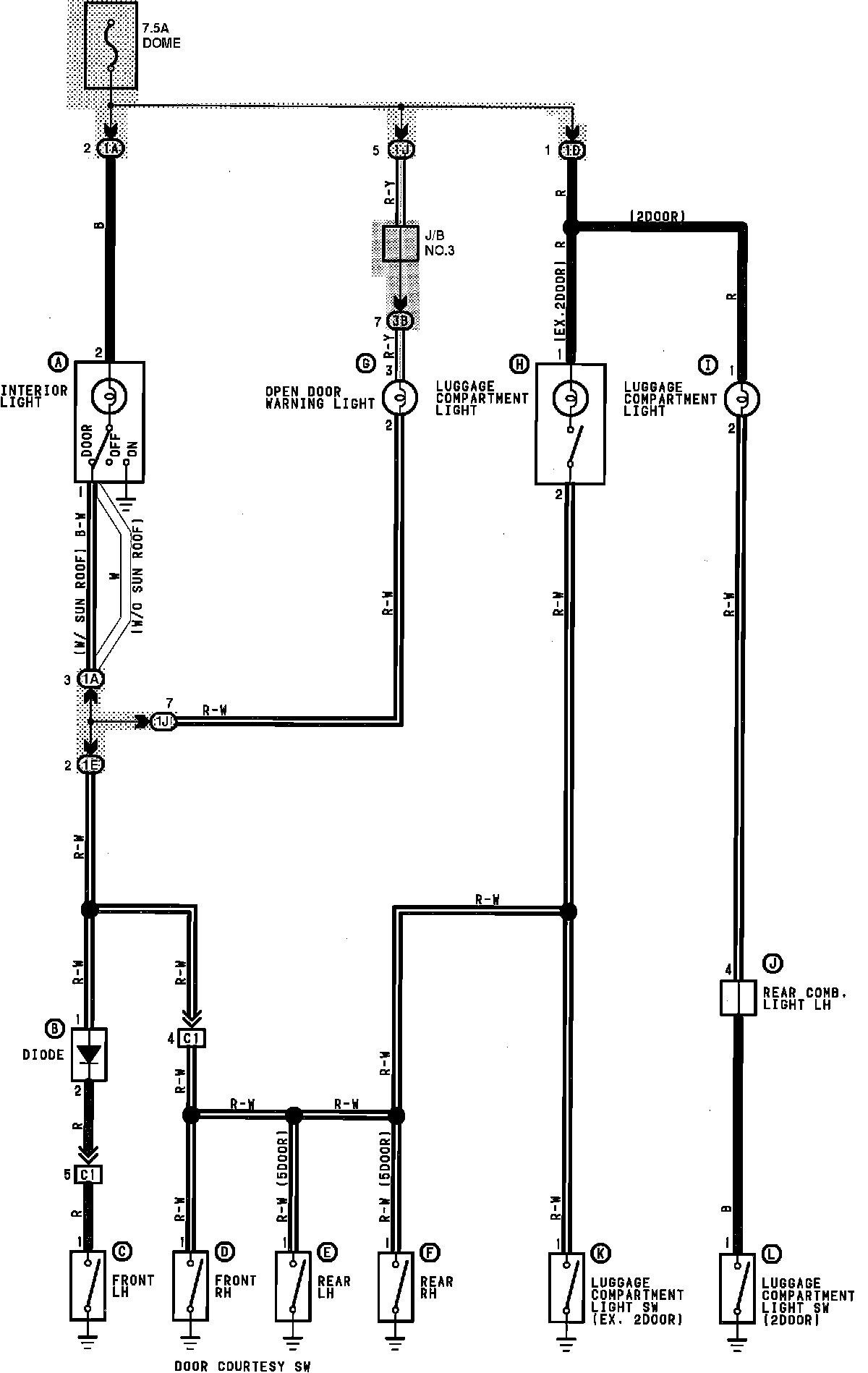

Interior Lights Less Theft Deterrent:
