Home
>>
Toyota
>>
1990
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Junction Block
>>
Number 1
Number 1
Fuse Panel Junction Block: No. 1 (Left Kick Panel):

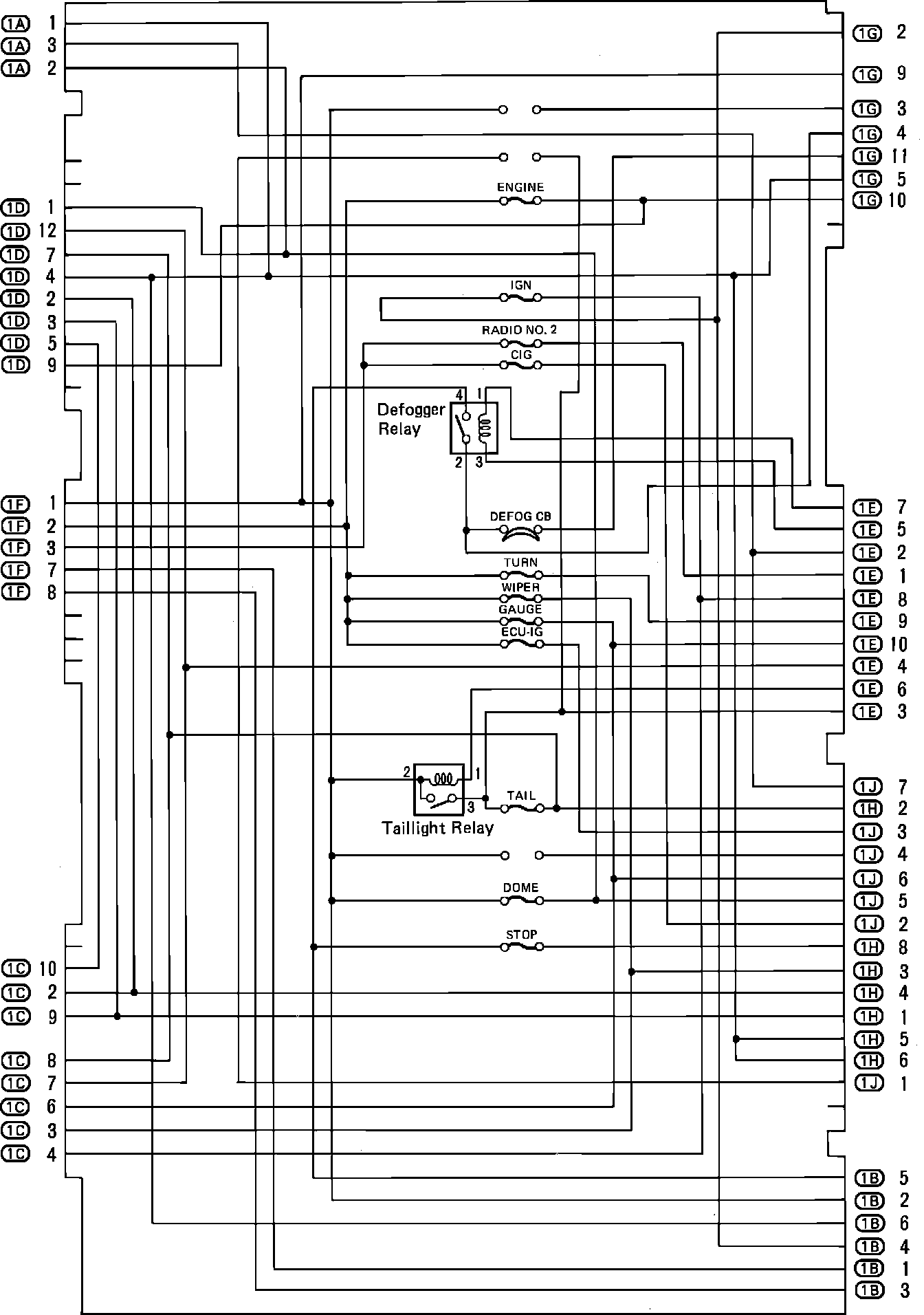

Fuse Panel Junction Block: No. 1 (Inner Circuit):
