Distributor: Service and Repair

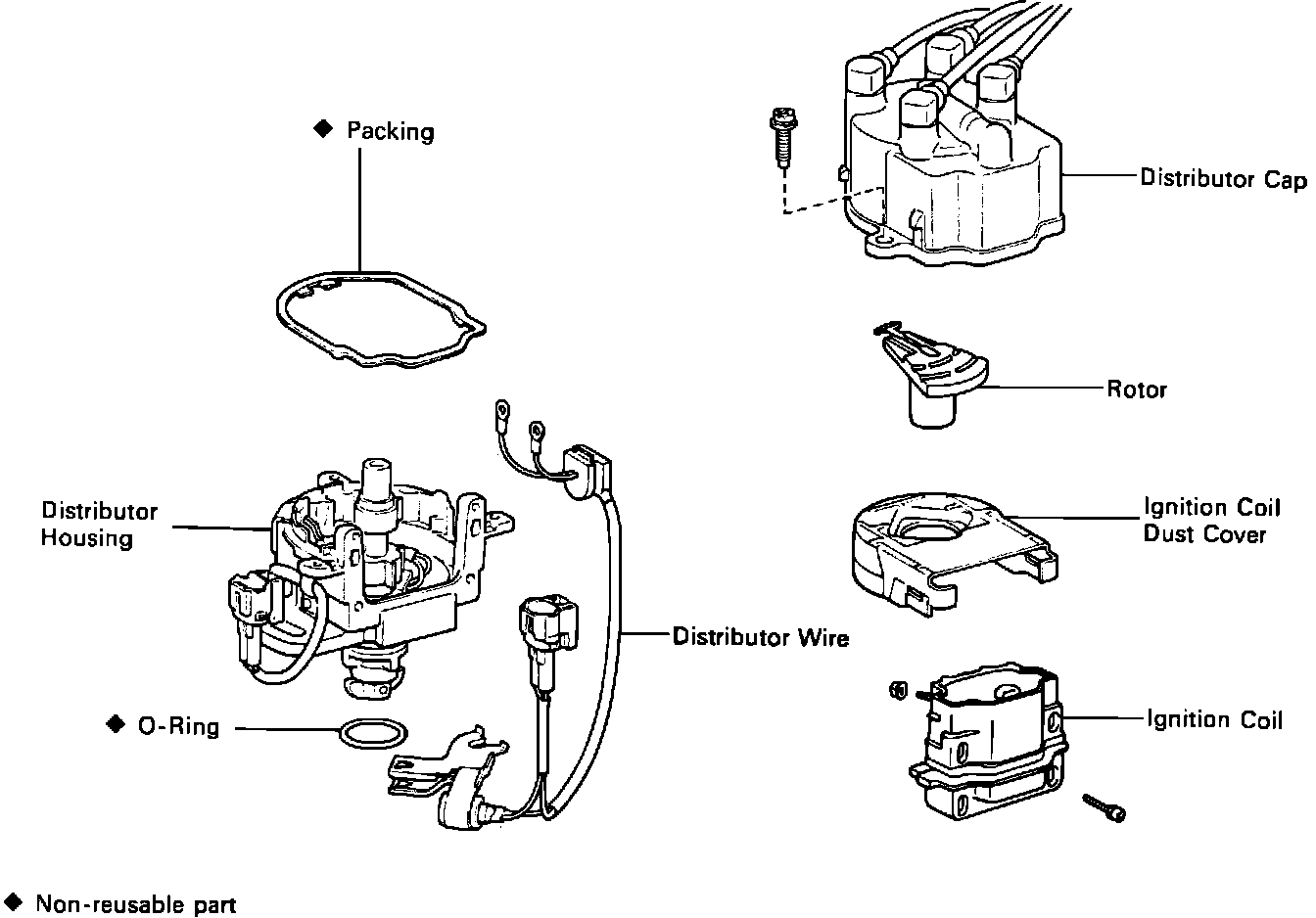

Exploded View Distributor:

REMOVAL:

1. Disconnect negative battery terminal.

2. Disconnect the primary distributor connectors.

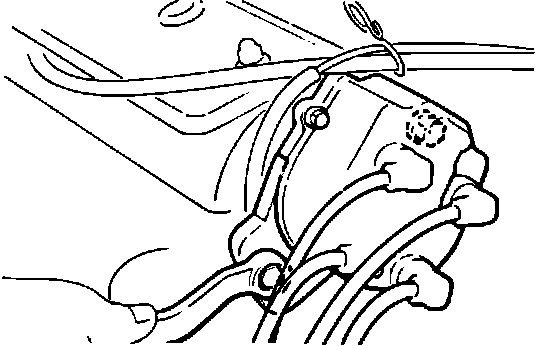

3. Disconnect the spark plug wires from the spark plugs.

Distributor Hold Down Bolt, Remove And Install:

4. Remove the two hold down bolts and remove the distributor.

INSTALLATION:

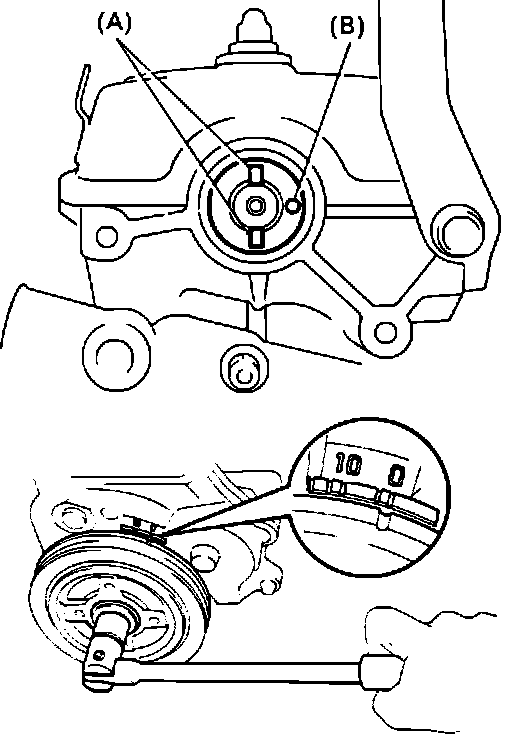

TDC Timing Marks:

1. Rotate the crankshaft clockwise, ensure #1 cylinder is at TDC compression stroke. Position the slits (A) vertically, and slit (B) perpendicular to slits (A).

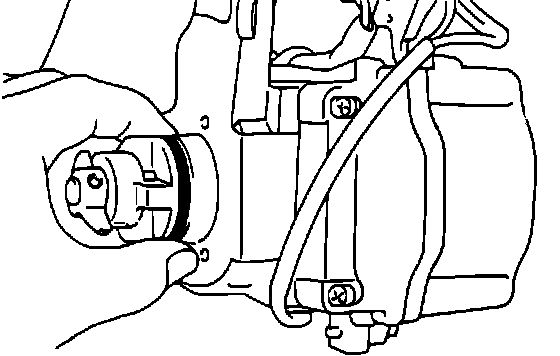

Distributor O-ring:

2. Install a new O-ring to the distributor housing and apply a light coat of engine oil.

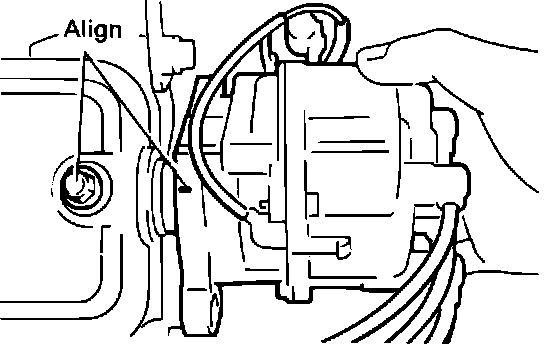

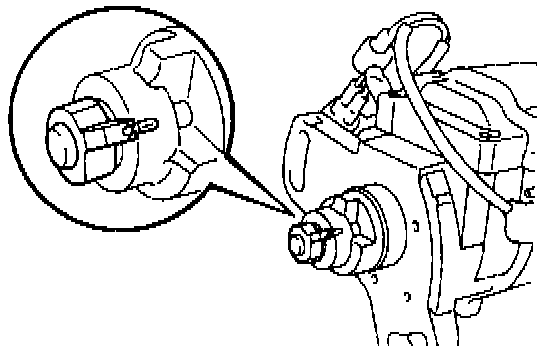

3. Align the protrusion on the housing with the groove of the coupling side.

Distributor Installation:

4. Install the distributor and lightly tighten hold down bolts.

5. Connect the spark plug wires to the proper spark plugs.

Firing Order: 1 - 3 - 4 - 2

6. Reconnect primary distributor connectors and reconnect negative battery terminal.

7. To adjust ignition timing refer to ADJUSTMENT PROCEDURES.

8. Torque distributor hold down bolts.

Torque Value: 9 ftlb (13 Nm)
