Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

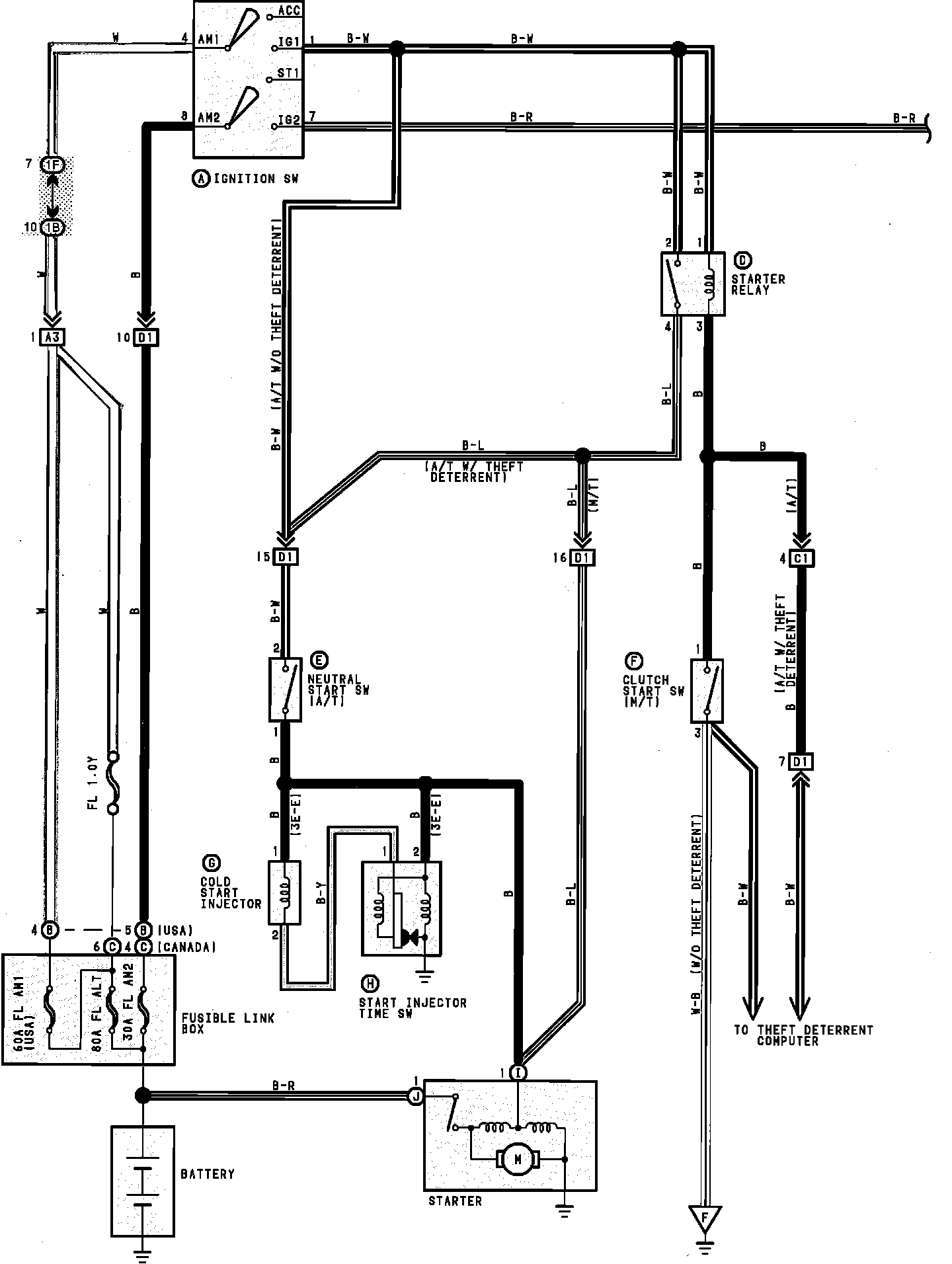

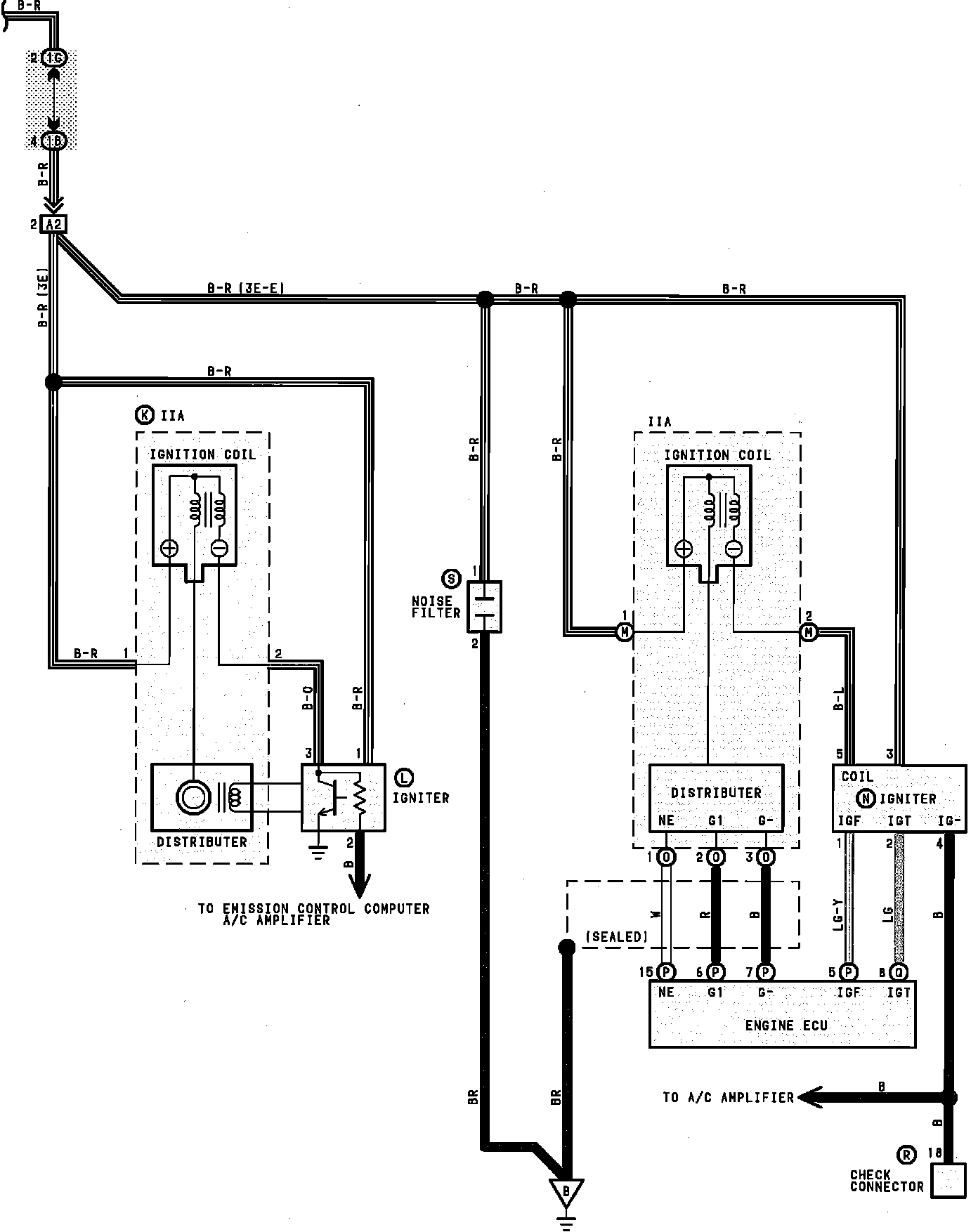

Starting And Ignition Systems:
Starting And Ignition Systems:
