First and Reverse Brake

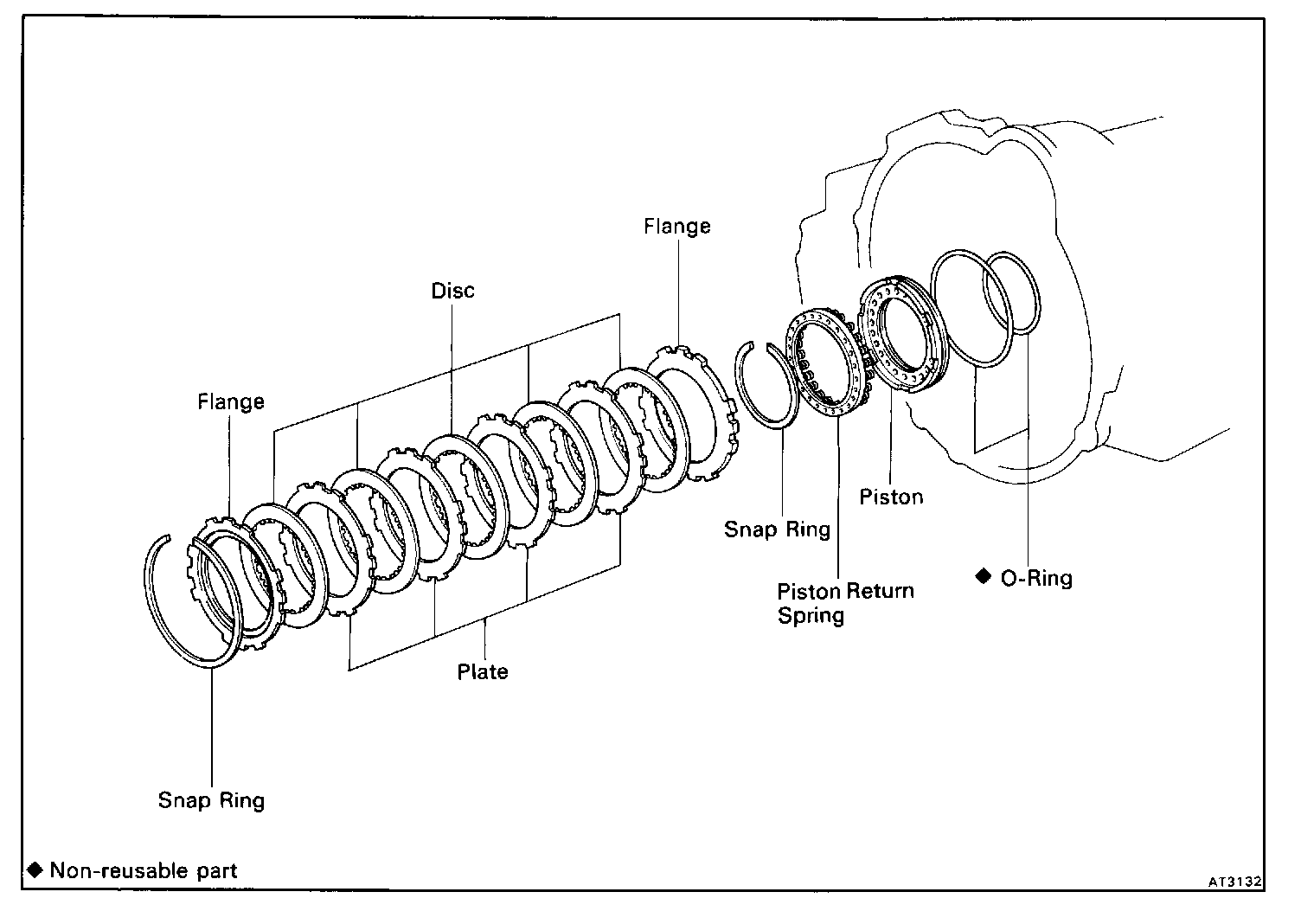

COMPONENTS

INSPECTION OF FIRST AND REVERSE BRAKE COMPONENT

INSPECT DISCS, PLATES AND FLANGES




Check if the sliding surfaces of the discs, plates and flanges are worn or burnt. If necessary, replace them.

HINT:

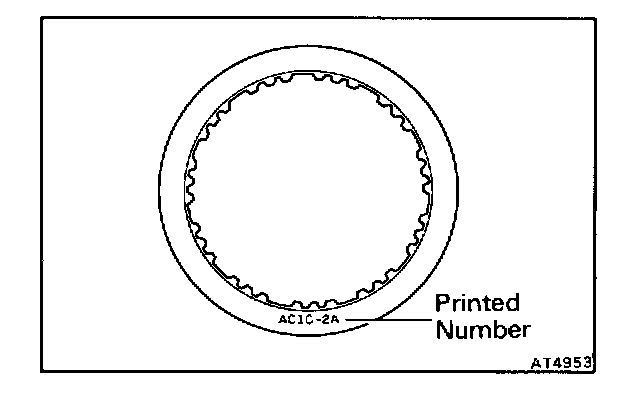

- If the lining of the disc is exfoliated or discolored, or even a part of the printed number is defaced, replace all discs.
- Before assembling new discs, soak them in ATF for at least two hours.
