Intermediate Shaft

COMPONENTS

DISASSEMBLY OF INTERMEDIATE SHAFT

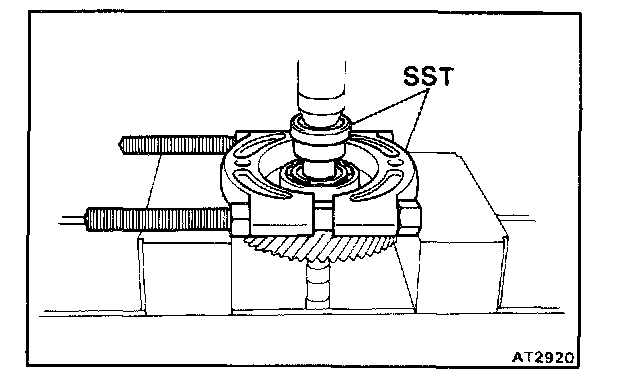

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING Using SST, press out the bearing.
SST 09950-00020

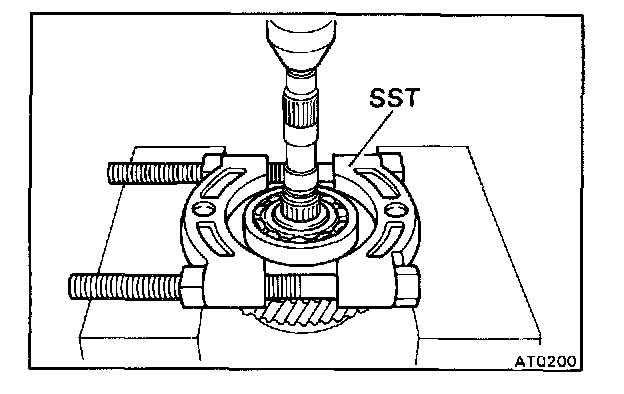

2. REMOVE INTERMEDIATE SHAFT REAR BEARING Using SST, press out the bearing.
SST 09350-32014 (09351-32090), 09950-00020

ASSEMBLY OF INTERMEDIATE SHAFT

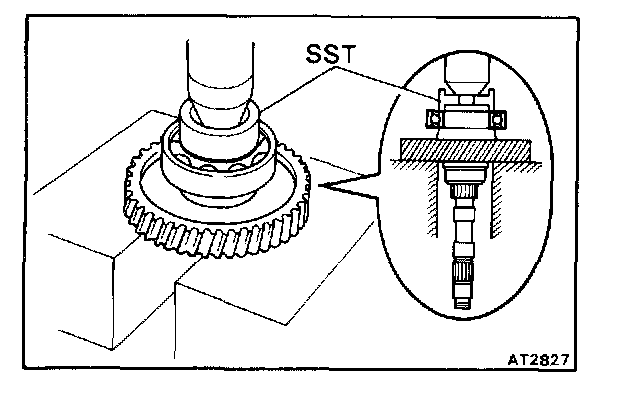

1. INSTALL INTERMEDIATE SHAFT REAR BEARING Using SST, press in a new bearing.
SST 09350-32014 (09351-32150)

2. INSTALL INTERMEDIATE SHAFT FRONT BEARING

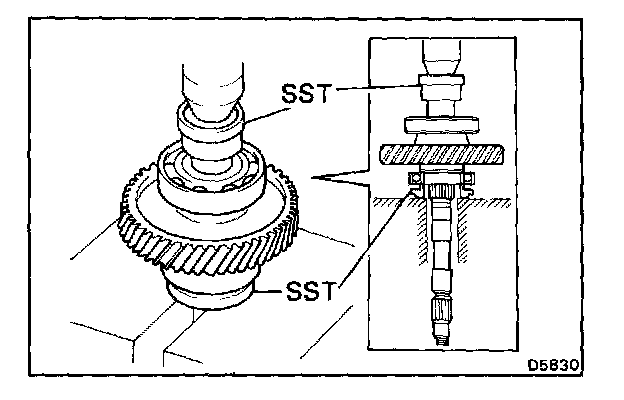

a. Using SST, press in a new bearing.
SST 09350-32014 (09351-32090, 09351-32120)

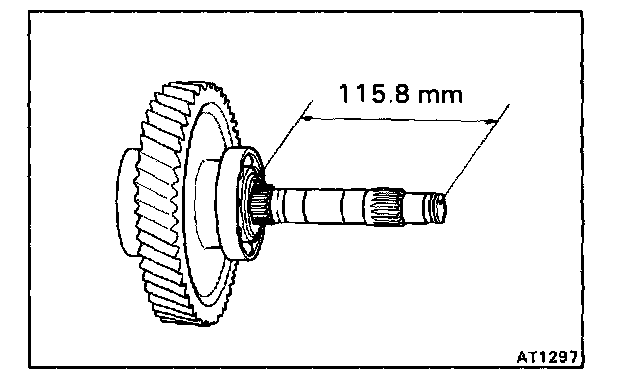

b. Check that the distance from the gear flange end to the intermediate shaft end is 115.8 mm (4.559 in.).
