Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 24
>>
Circuit Test
Circuit Test

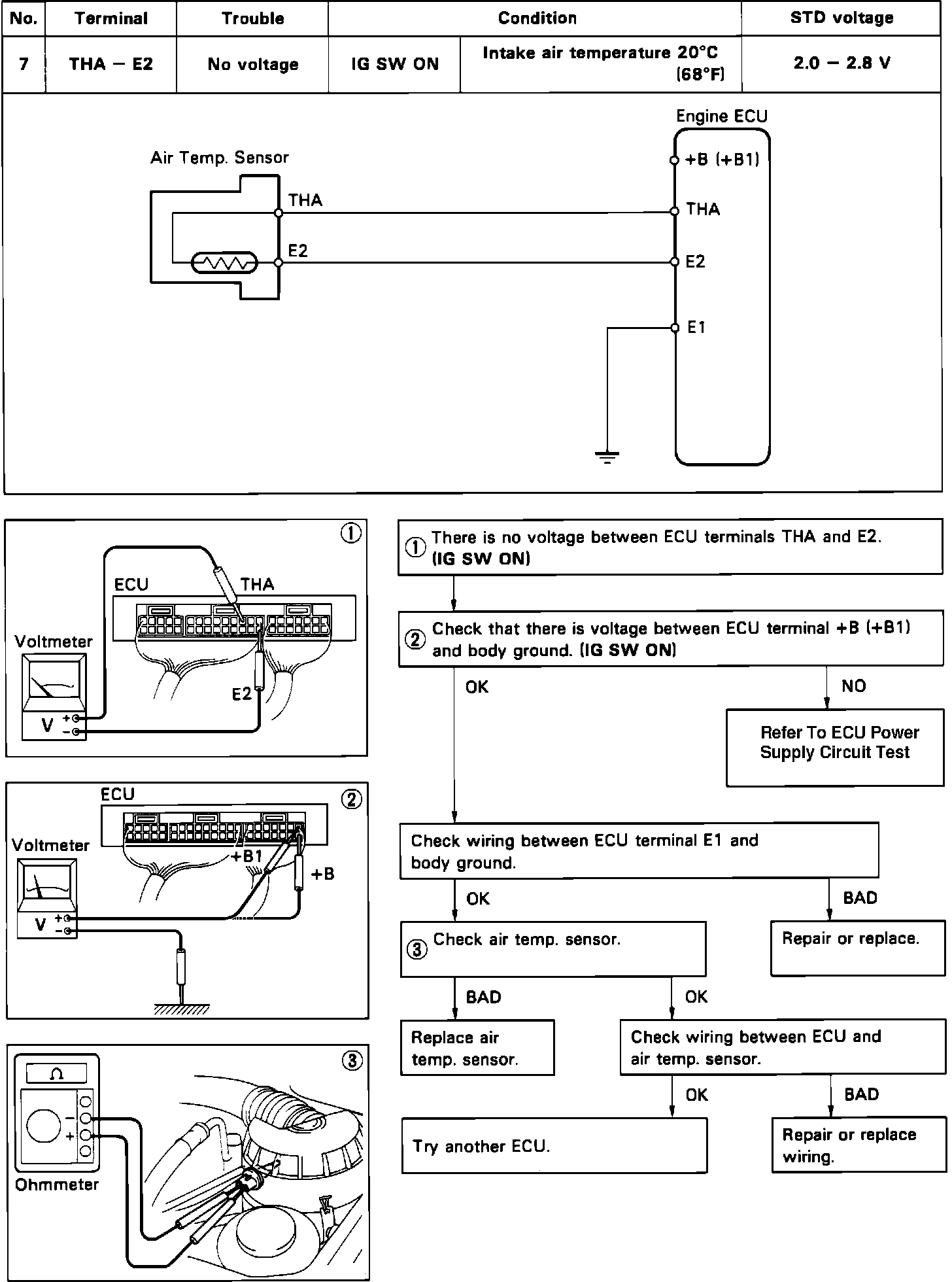

Intake Air Temperature Sensor Circuit Test:
