Home >> Toyota >> 1990 >> Tercel Sedan L4-1456cc 1.5L SOHC (3E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> Radiator Cooling Fan Motor >> Less Power Steering

Less Power Steering

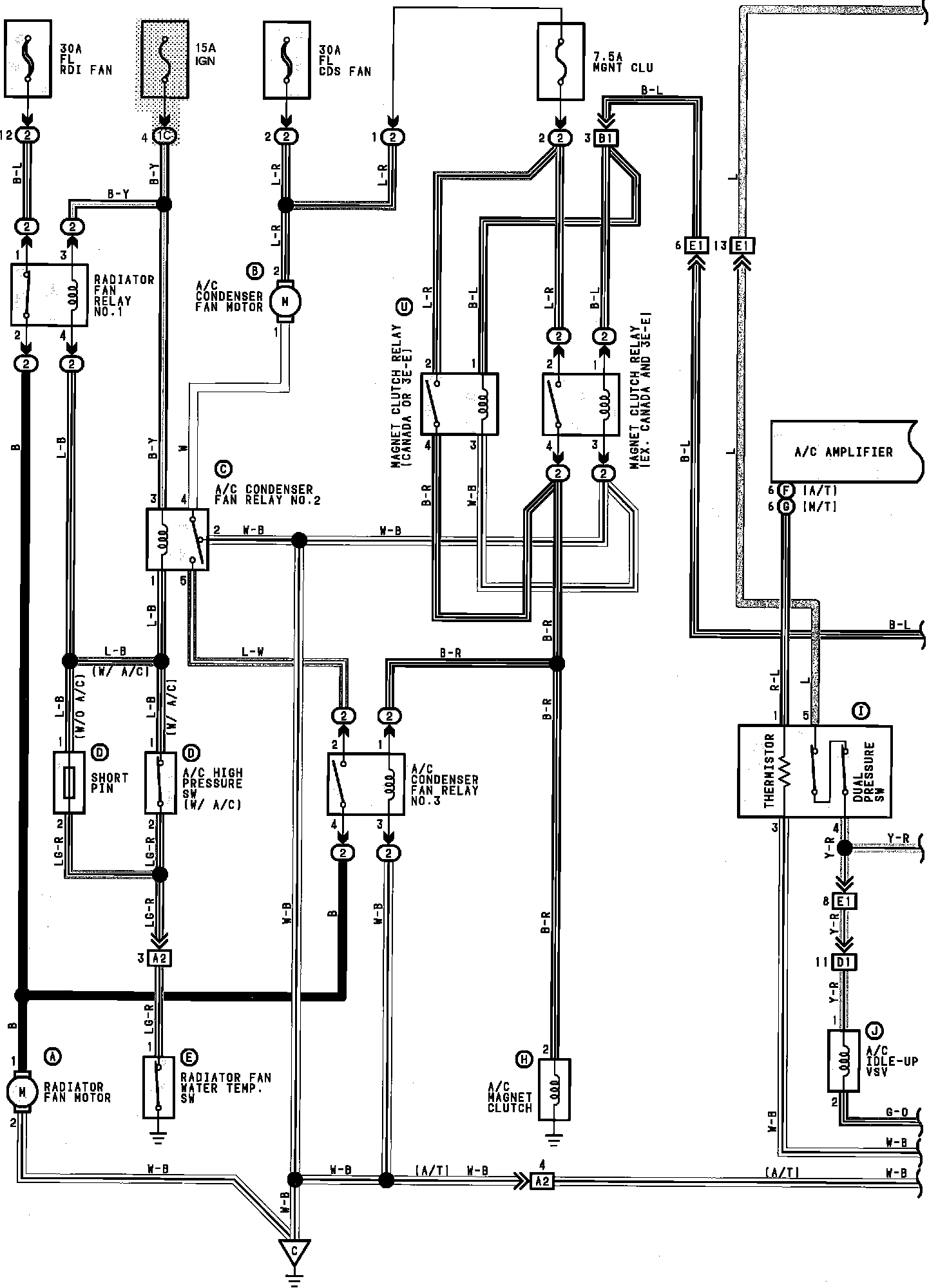

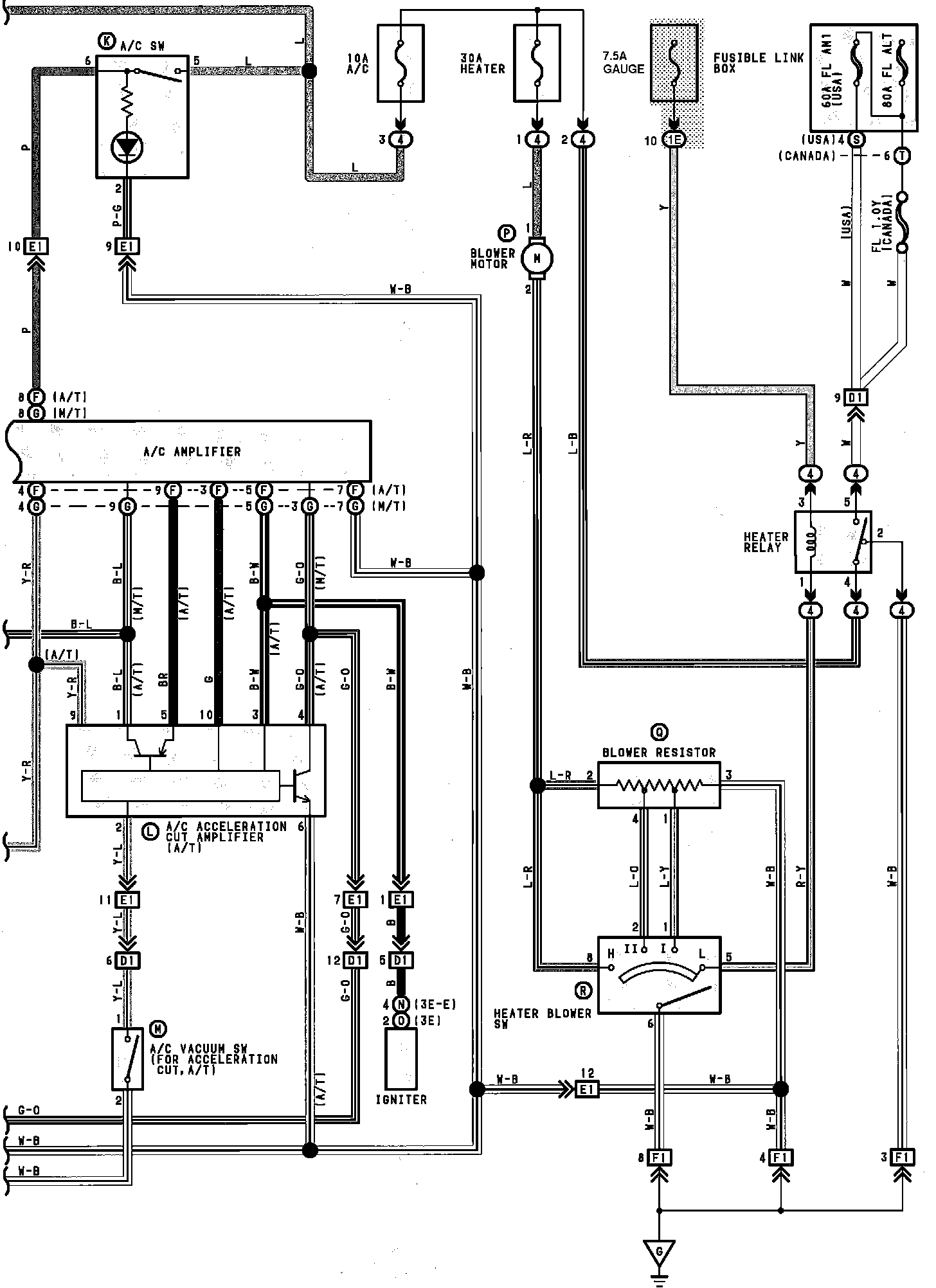

Radiator Fan And Air Conditioning Without Power Steering:



Radiator Fan And Air Conditioning Without Power Steering:
