Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

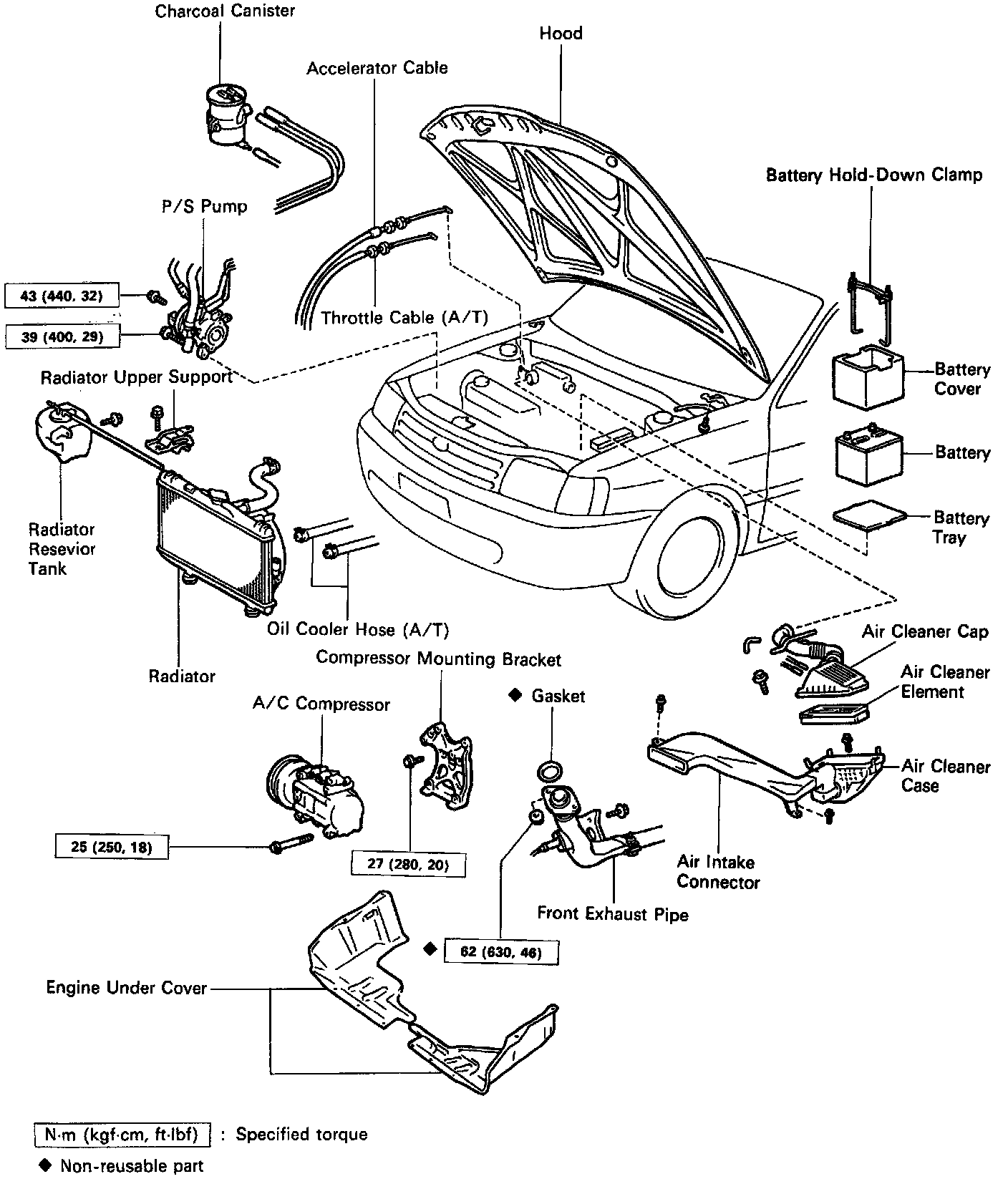

Components For Cylinder Block Removal And Installation (1 Of 2):

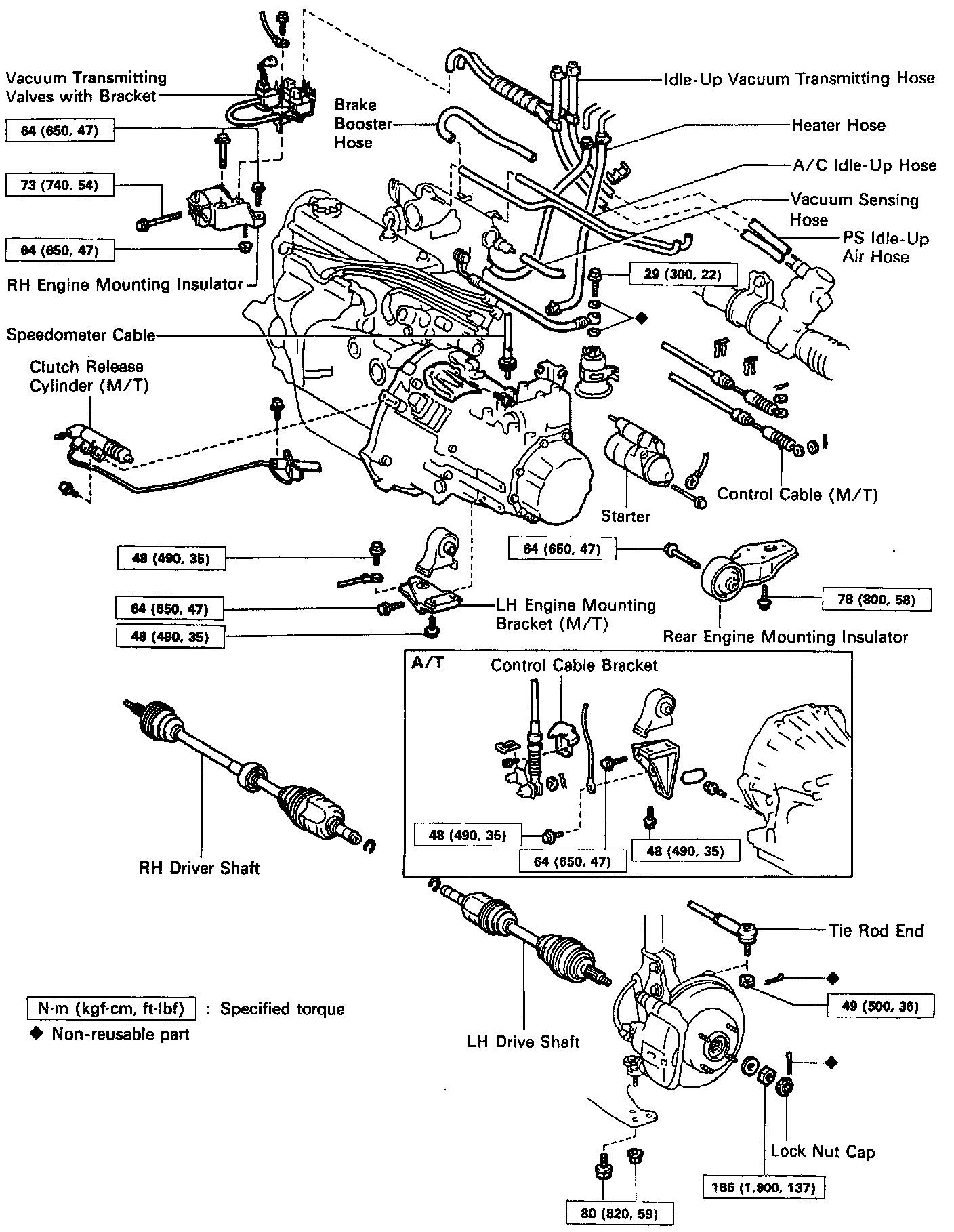

Components For Cylinder Block Removal And Installation (2 Of 2):
