Cylinder Head Removal

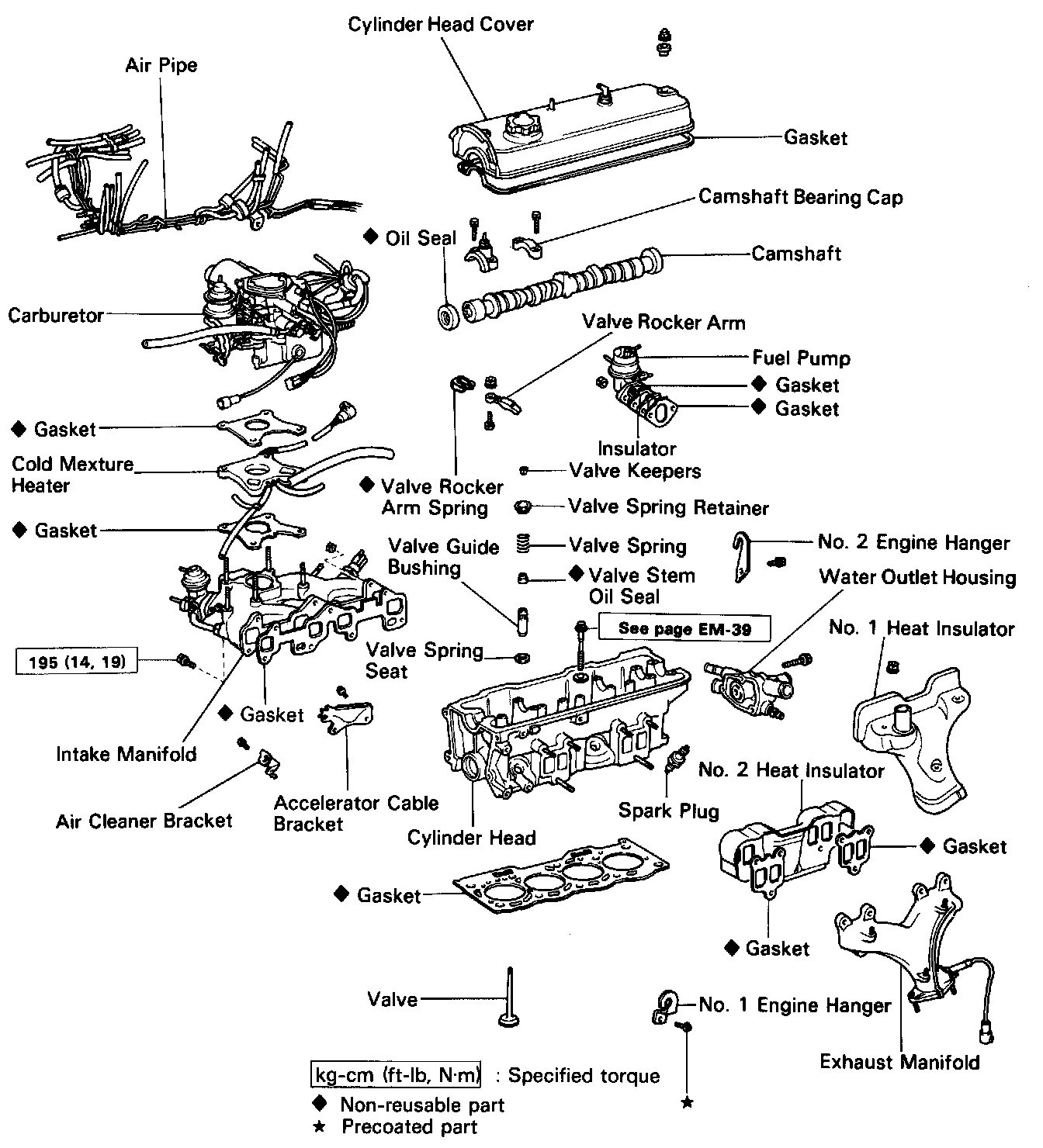

CYLINDER HEAD
REMOVAL OF CYLINDER HEAD
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
2. REMOVE RH ENGINE UNDER COVER
3. DRAIN COOLANT






4. (w/PS) REMOVE PS PUMP AND BRACKET
5. (with A/C and W/O PS) REMOVE IDLER PULLEY BRACKET
6. DISCONNECT RADIATOR HOSES
7. DISCONNECT ACCELERATOR CABLE. Disconnect the accelerator cable from the bracket.


8. (A/T).
DISCONNECT THROTTLE CABLE. Disconnect the throttle cable from the bracket.
9. REMOVE TIMING BELT AND CAMSHAFT TIMING PULLEY

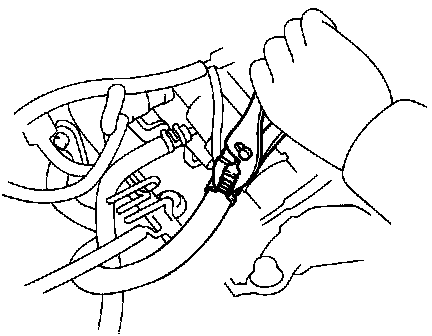

10. DISCONNECT HEATER INLET HOSE

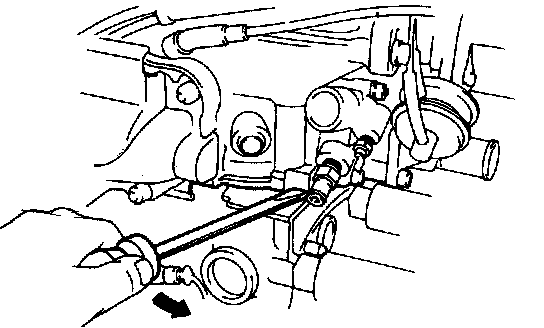

11. DISCONNECT FUEL HOSES. Disconnect the fuel hoses from the fuel pump and plug the hose end.
12. (Federal and Canada) REMOVE AS HOSE AND VALVE
(Calif..) REMOVE AS HOSE
13. DISCONNECT BRAKE BOOSTER HOSE FROM INTAKE MANIFOLD

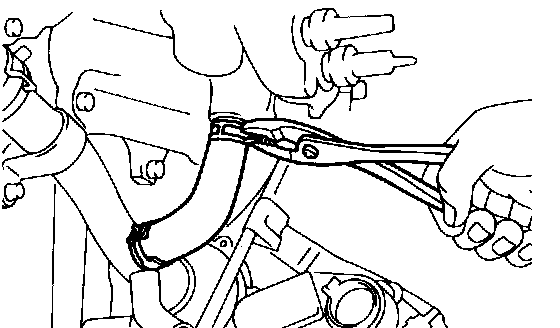

14. DISCONNECT WATER INLET HOSE






15. DISCONNECT INTAKE MANIFOLD WATER HOSE FROM INTAKE MANIFOLD
16. DISCONNECT FOLLOWING WIRES:
(a) Distributor wire
(b) Water temp. switch wire
(c) Water temp. sender gauge wire
(d) Oxygen sensor wire
(e) VSV wires (for EVAP and No.2 cold enrichment breaker system)
(f) FBCV wire
(g) VSV wire(for TP)
(h) Fuel heater and CMH wire
(i) Solenoid valve wire
17. DISCONNECT FOLLOWING HOSES:
(a) (Federal) HAC hoses
(b) (with A/C) VSV hoses
(c) Vacuum switch hoses
(d) PS air hoses
(e) EVAP purge hose
(f) OVCV hose

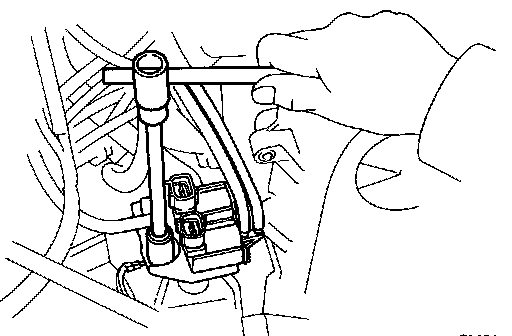

18. REMOVE EVAP VSV AND NO.2 COLD ENRICHMENT BREAKER VSV






19. DISCONNECT WATER BY-PASS HOSES FROM CARBURETOR

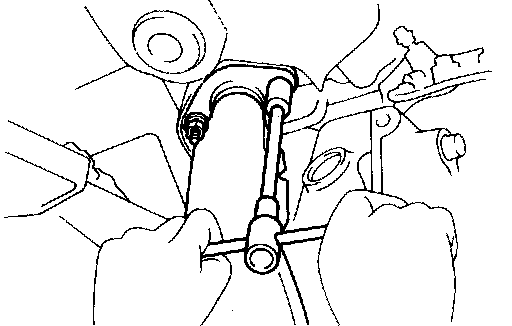

20. DISCONNECT EXHAUST PIPE

(a) Remove the two nuts and disconnect exhaust pipe from the exhaust manifold.
(b) Remove the gasket from exhaust pipe.

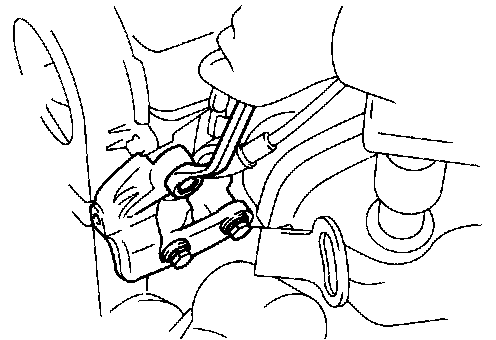

21. REMOVE INTAKE MANIFOLD STAY AND GROUND STRAP
Remove the bolt, nut, ground strap and intake manifold stay.

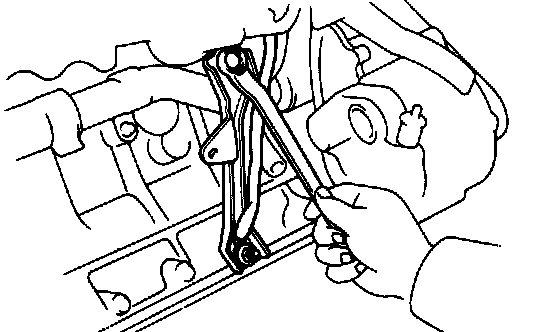

22. REMOVE WIRE HARNESS CLAMP BOLT FROM INTAKE MANIFOLD






23. MEASURE CAMSHAFT THRUST CLEARANCE

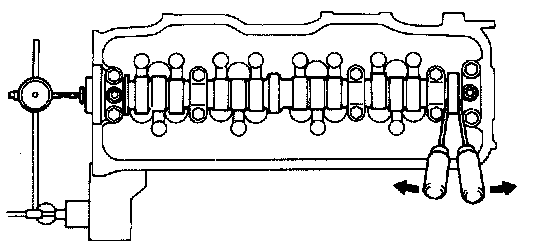

Using a dial gauge, measure thrust clearance while moving the camshaft back and forth.
Standard thrust clearance: 0.08-0.18 mm (0.0031 - 0.0071in)
Maximum thrust clearance: 0.25 mm (0.0098 in.)
If clearance is greater than maximum, replace the head and/or camshaft.






24. REMOVE CYLINDER HEAD

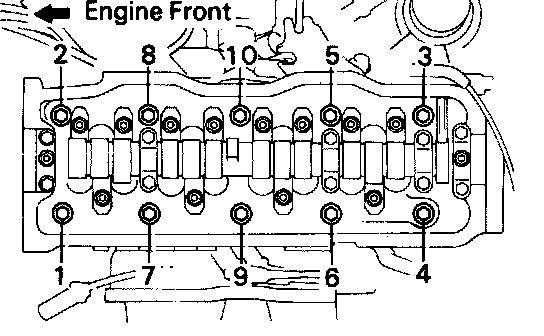

(a) Remove and loosen the head bolts gradually in three passes in the numerical order shown.

CAUTION: Head warpage or cracking could result from removing the head bolts out order.

NOTE: Some engines have head bolts with smoothly ground head surfaces.

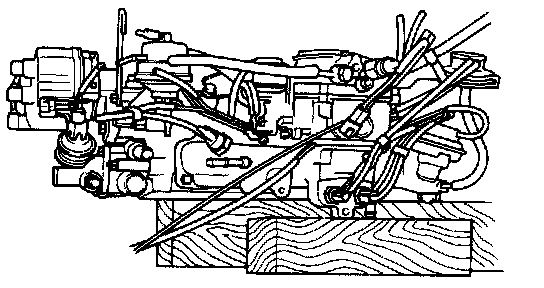

(b) Lift the head from the dowels on the cylinder block and place it on the wooden blocks on a each.






If the cylinder head is difficult to lift off, pry with a bar between the head and block projection.

NOTE: Be careful not to damage the cylinder block or cylinder head contact surfaces.

(c) Remove the cylinder head gasket.
