Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Malfunction Indicator Lamp
>>
Testing and Inspection
>>
3E Engine (Carbureted)
>>

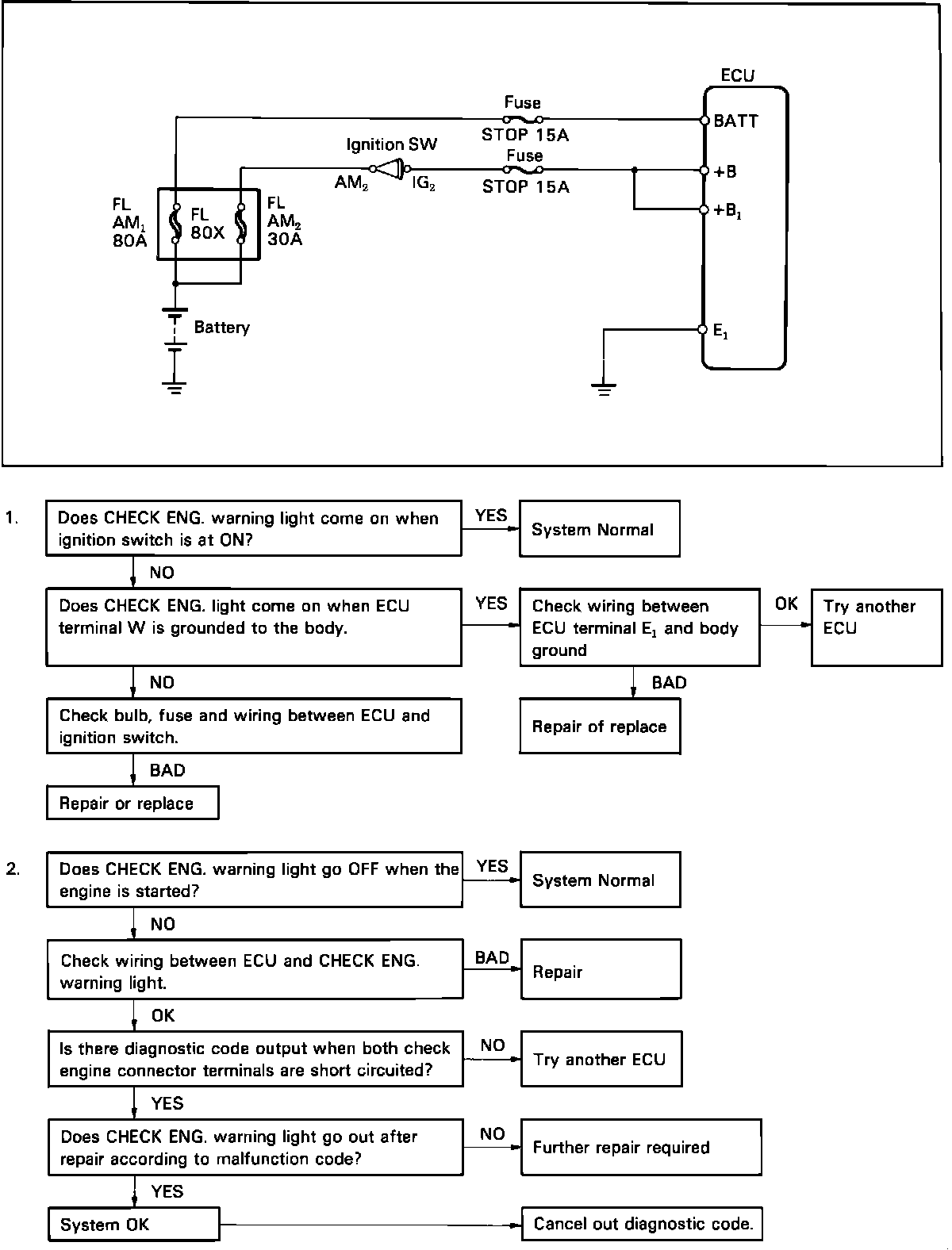

System Circuit Test
System Circuit Test
On-Board Diagnostic Circuit Test:
