Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Maintenance
>>
Service Reminder Indicators
>>
Malfunction Indicator Lamp
>>
Testing and Inspection
>>
3E-E Engine (Fuel Injected)
>>
System Circuit Test
System Circuit Test

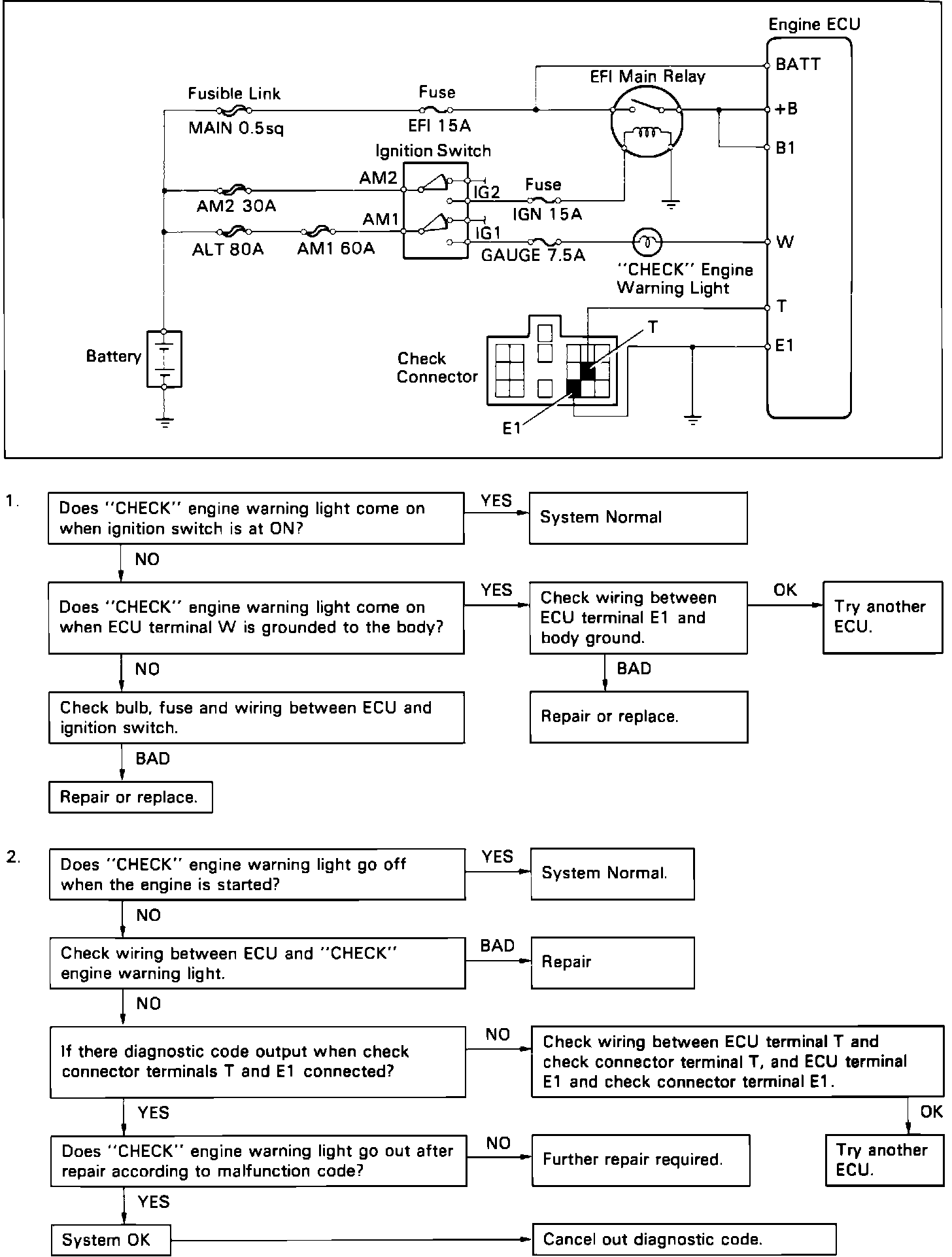

On-Board Diagnostic Circuit Test:
