Home
>>
Toyota
>>
1990
>>
Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Speed/Throttle Actuator - Mechanical
>>
Idle Speed Vacuum Solenoid Valve
>>
Testing and Inspection
>>
Circuit Test
Circuit Test

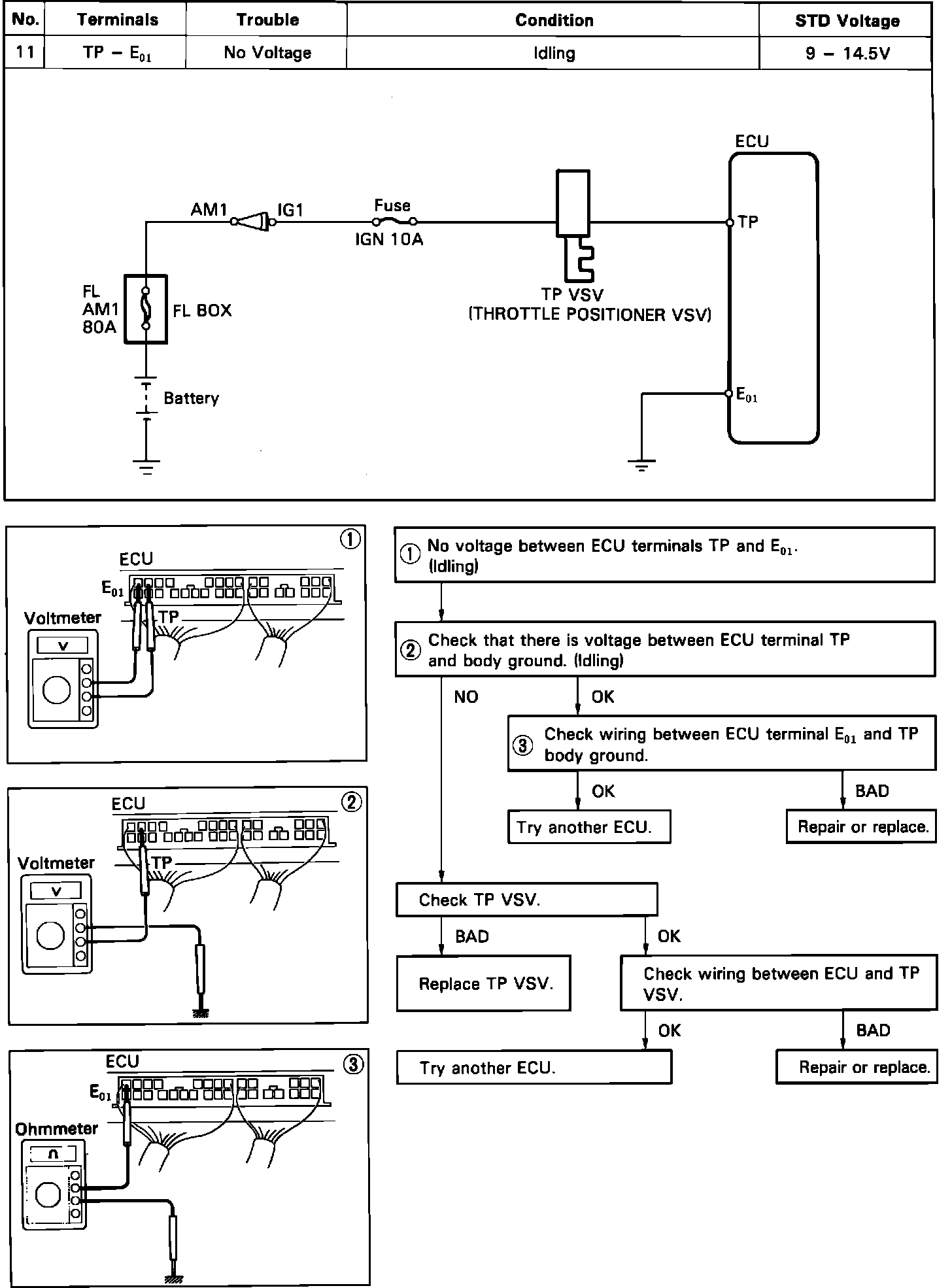

Throttle Positioner VSV Circuit Test:
