California Models

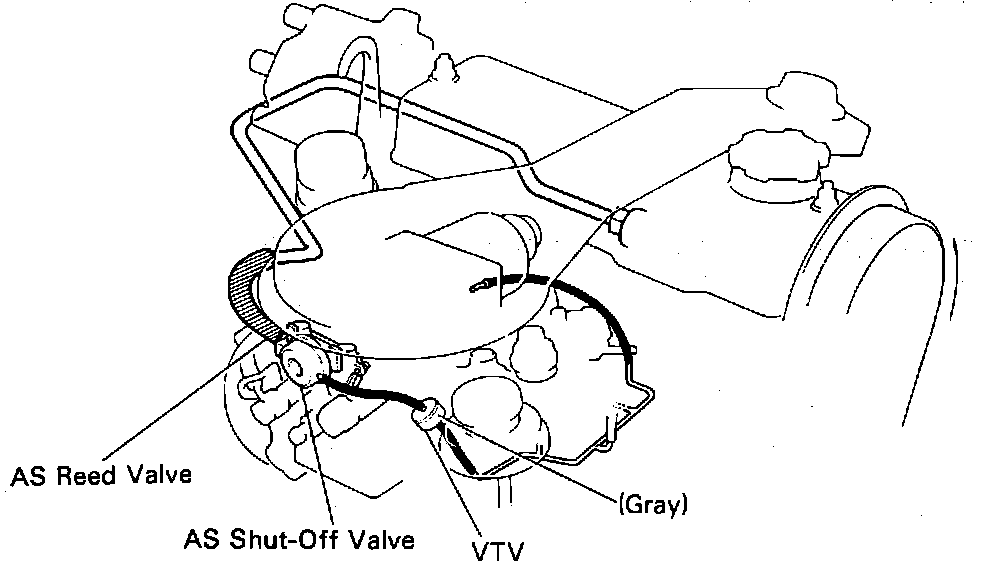

Air Suction System:

Reed Valve: RH side of air cleaner housing
Shut-Off Valve: RH side of air cleaner housing
Vacuum Transmitting Valve (VTV): In vacuum hose between shut-off valve and intake manifold
