Ignition Coil: Service and Repair

Distributor, Exploded View:

REMOVAL:

1. Remove distributor from vehicle refer to REMOVAL AND INSTALLATION.

2. Remove the distributor cap from the distributor.

3. Remove the ignition rotor, and dust cover.

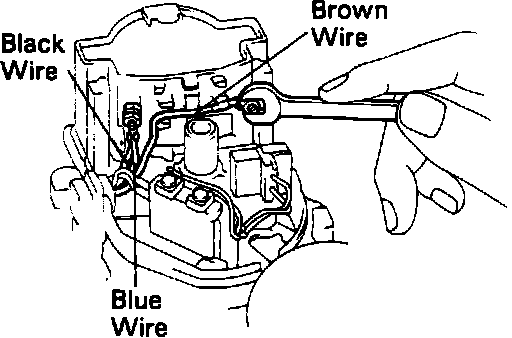

Primary Coil Wire Removal:

4. Disconnect the three wires from the terminals of the ignition coil.

Ignition Coil Removal:

5. Remove the four retaining screws. Remove ignition coil and dust proof packing.

INSTALLATION:

1. Reinstall coil and packing. Tighten coil retaining screws evenly.

CAUTION: Do not use impact or air tools on ignition coil retaining screws.

2. Reconnect the three wires to the terminals of the ignition coil.

Primary Ignition Wire Routing:

NOTE: Ensure the wires are properly inserted into their grooves, located on the side of the ignition coil. Ensure that the wires don't contact the signal rotor or distributor housing.

3. Install the ignition rotor, dust cover, and distributor cap.

4. Install distributor in vehicle. Refer to REMOVAL AND INSTALLATION.
