Steering Column: Service and Repair

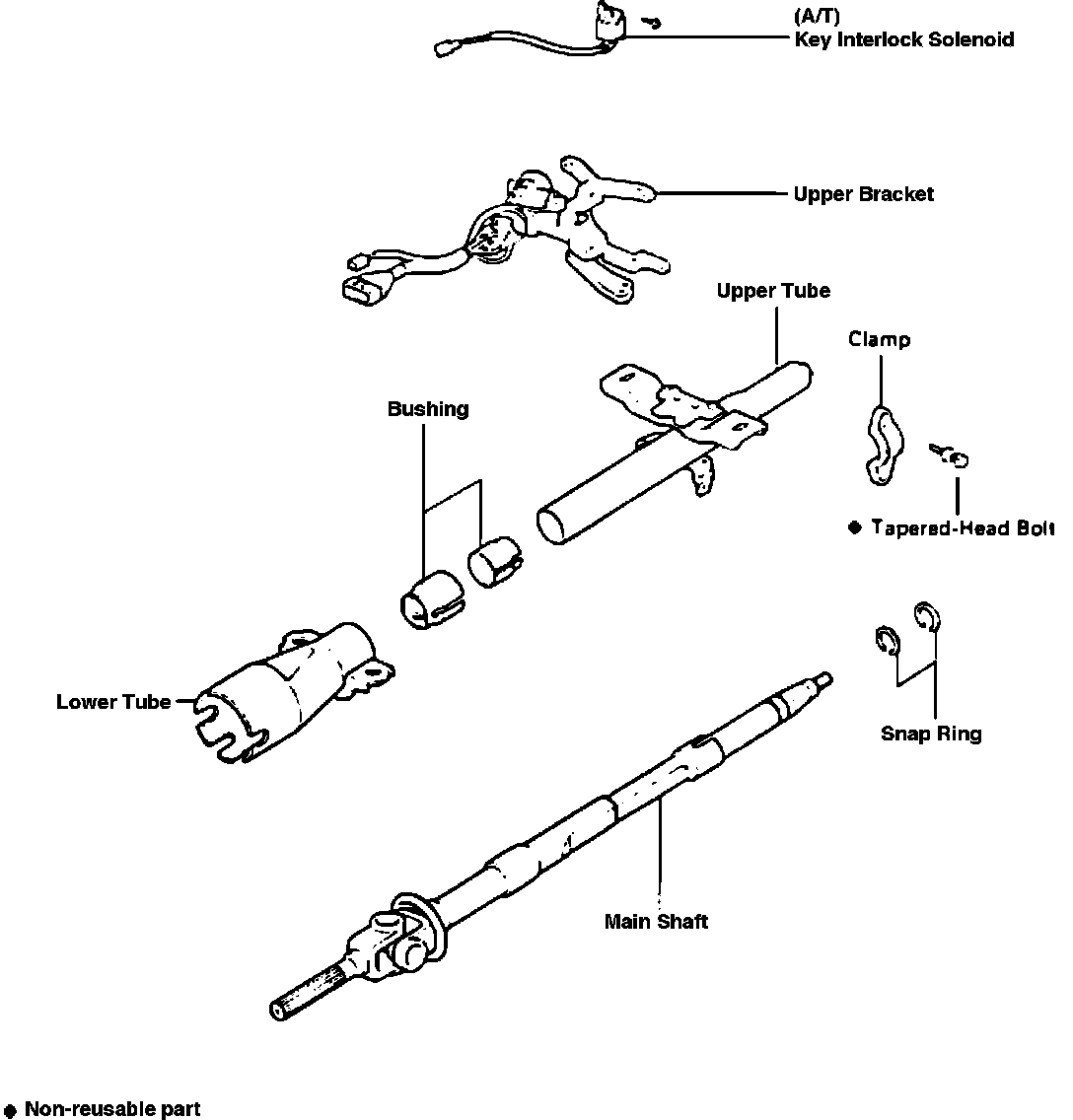

Fig. 32 Exploded View Of Steering Column. 1990 Tercel Less Tilt Column:
