Speedometer Driven Gear

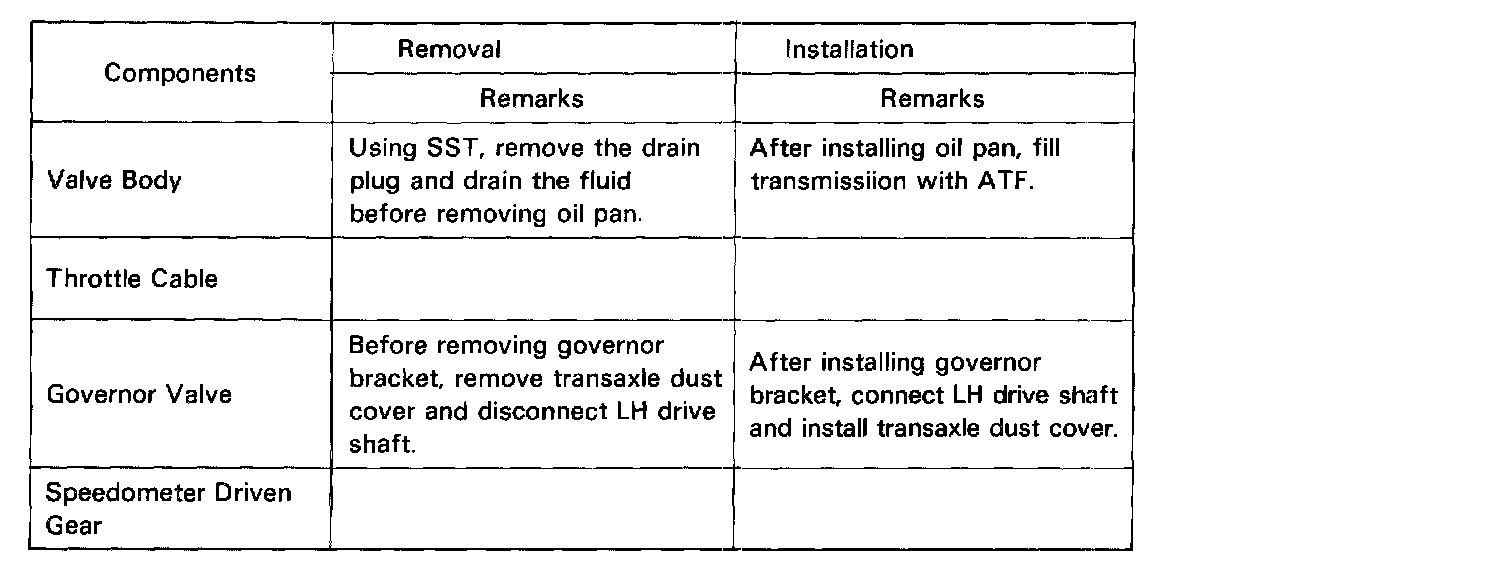

HINT: The components mentionedcan be replaced on the vehicle as they are without any necessity for removal of the transmission. For the respective operating procedures refer to the following:

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL




1. REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, pull out the oil seal.
SST 09921-00010

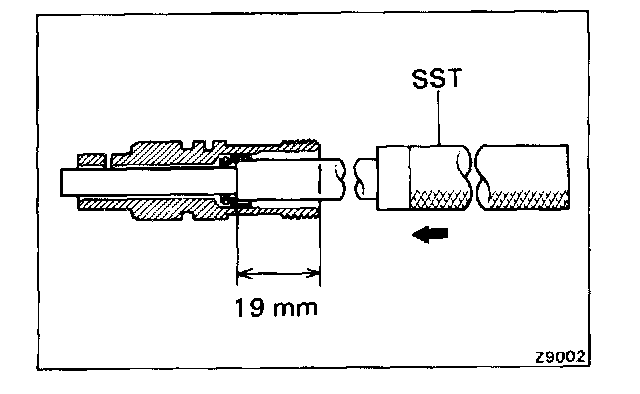

2. INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL
SST 09201-60011

Drive in depth: 19 mm (0.75 in.)
