Removal and Installation

REMOVAL

�A2 :

Remove and install the parts as shown.

INSTALLATION




1. INSTALL TORQUE CONVERTER IN TRANSMISSION

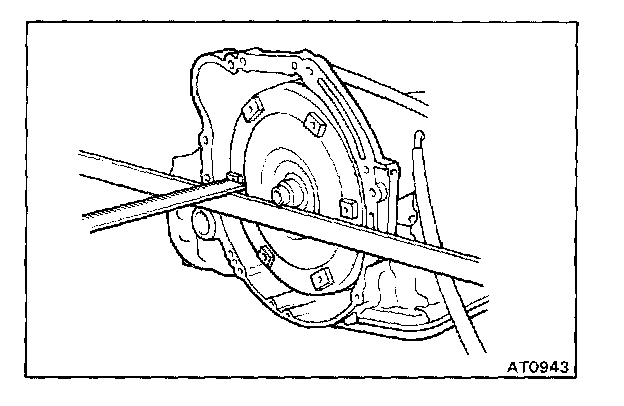

2. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the installed surface to the front surface of the transmission housing.

Correct distance: More than 13.4 mm (0.528 in.)
