Air Outlet Servomotor

INSPECTION

1. REMOVE AIR OUTLET SERVOMOTOR
a. Remove the instrument panel.
b. Disconnect the connector.

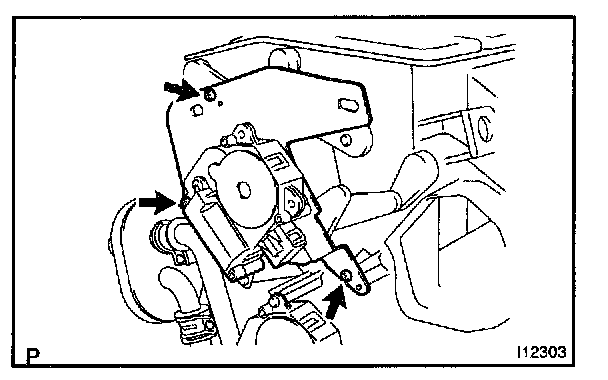

c. Remove the 3 screws and servomotor.

2. INSPECT AIR OUTLET DAMPER POSITION SENSOR CIRCUIT
3. INSPECT AIR OUTLET DAMPER CONTROL SERVO- MOTOR CIRCUIT

4. INSTALL AIR OUTLET SERVOMOTOR
a. Install the 3 screws with the 3 screws.
b. Connect the connector.
c. Install the instrument panel.
