B1211

DTC B1211 Driver Door ECU Communication Stop

CIRCUIT DESCRIPTION

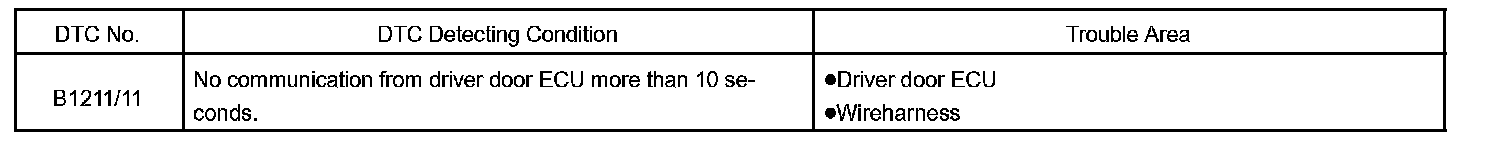

DTC Detecting Condition:

This DTC is output when communication stops between driver door ECU and body ECU.

Wiring Diagram:

Step 1 - 2:

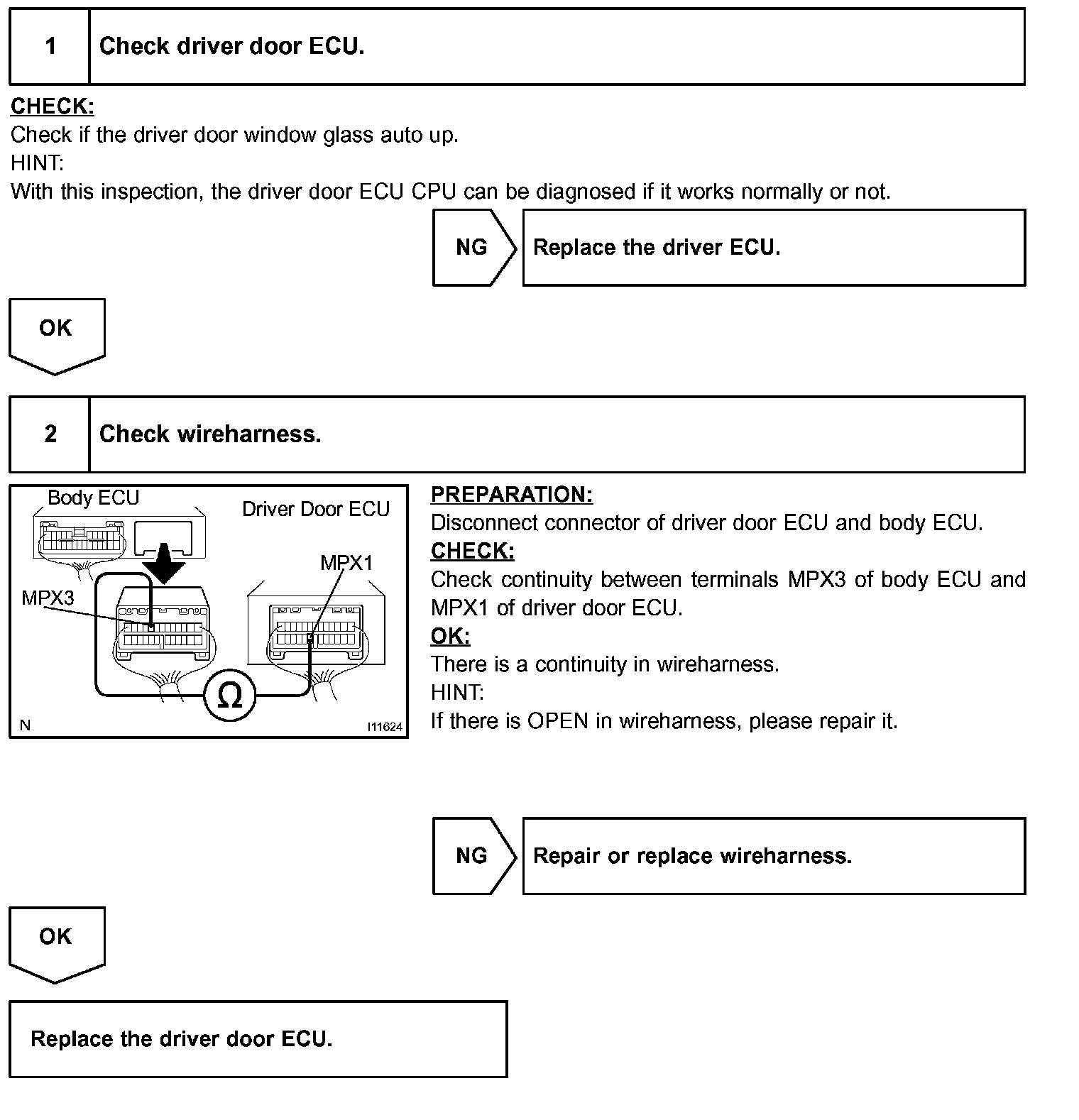

INSPECTION PROCEDURE
