B1242

DTC B1242 Wireless Door Lock Receiver Circuit Malfunction

CIRCUIT DESCRIPTION

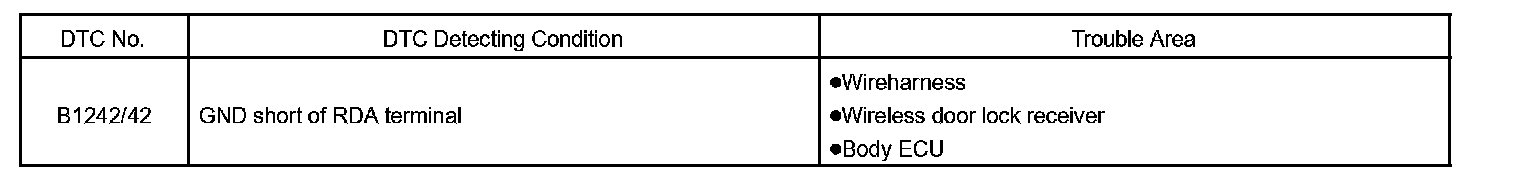

DTC Detecting Condition:

This DTC is output when GND short of RDA terminal is detected.

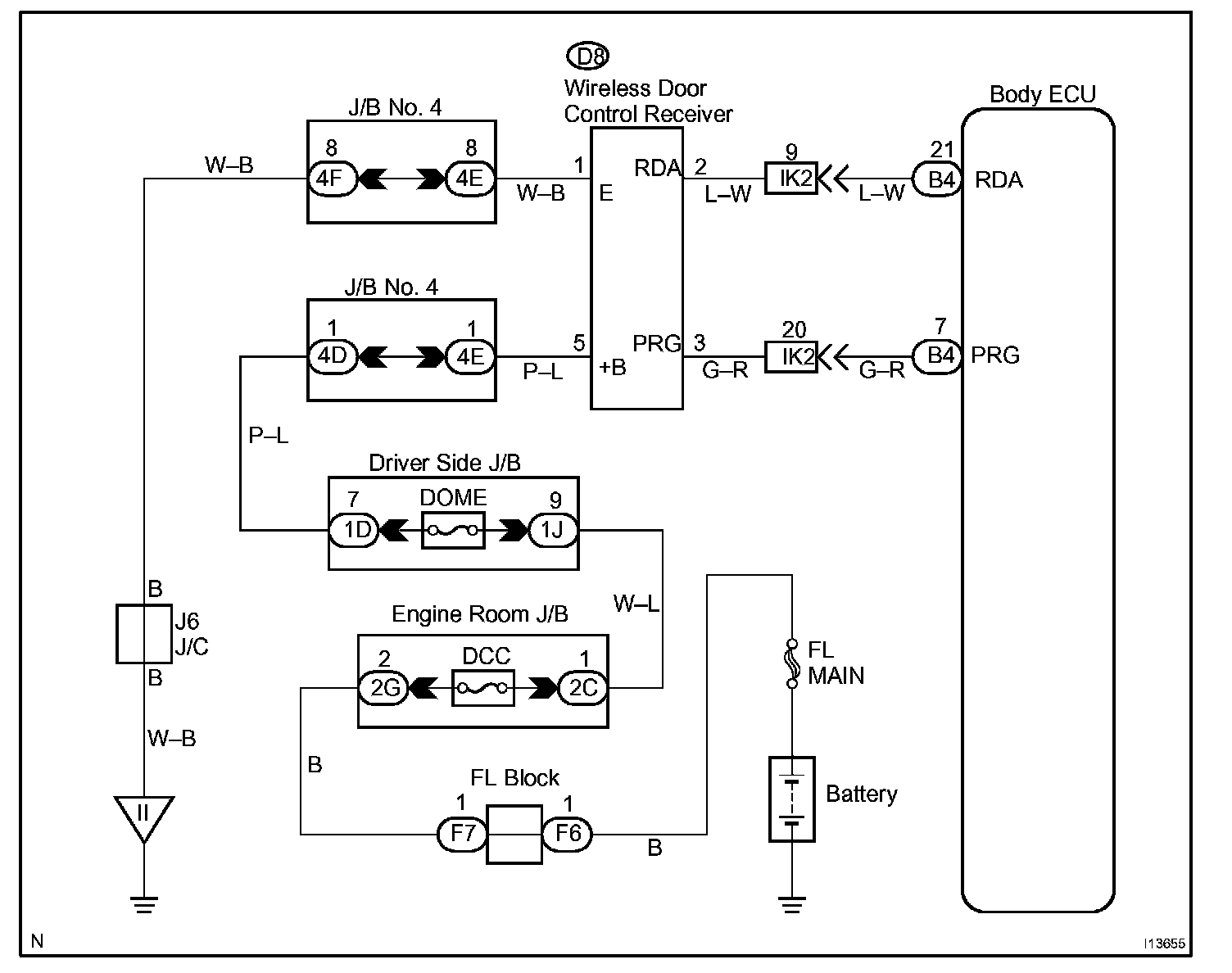

Wiring Diagram:

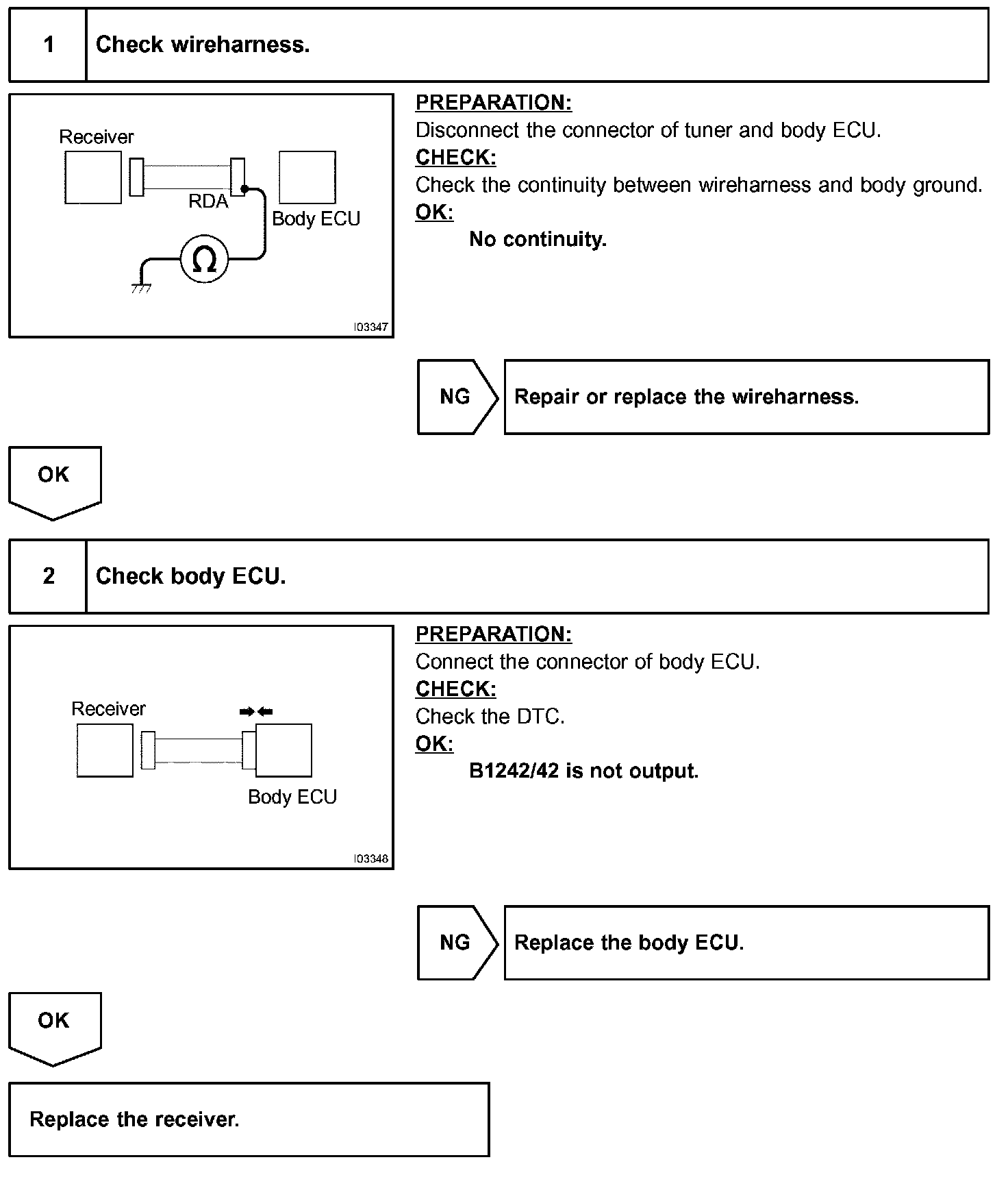

Step 1 - 2:

INSPECTION PROCEDURE
