B1244

DTC B1244 Light Sensor Circuit Malfunction

CIRCUIT DESCRIPTION

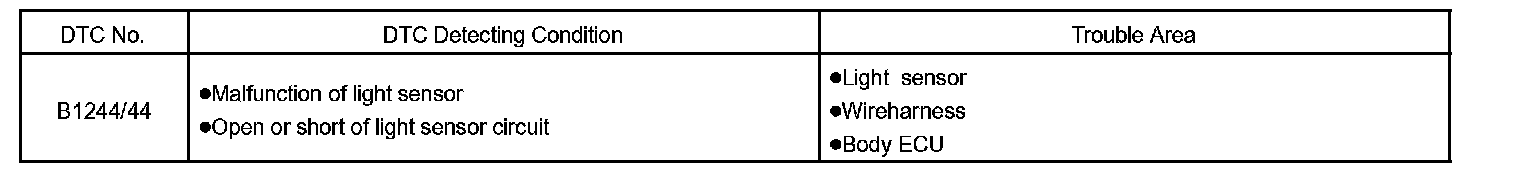

DTC Detecting Condition:

This DTC's output when failure of light sensor circuit is detected.

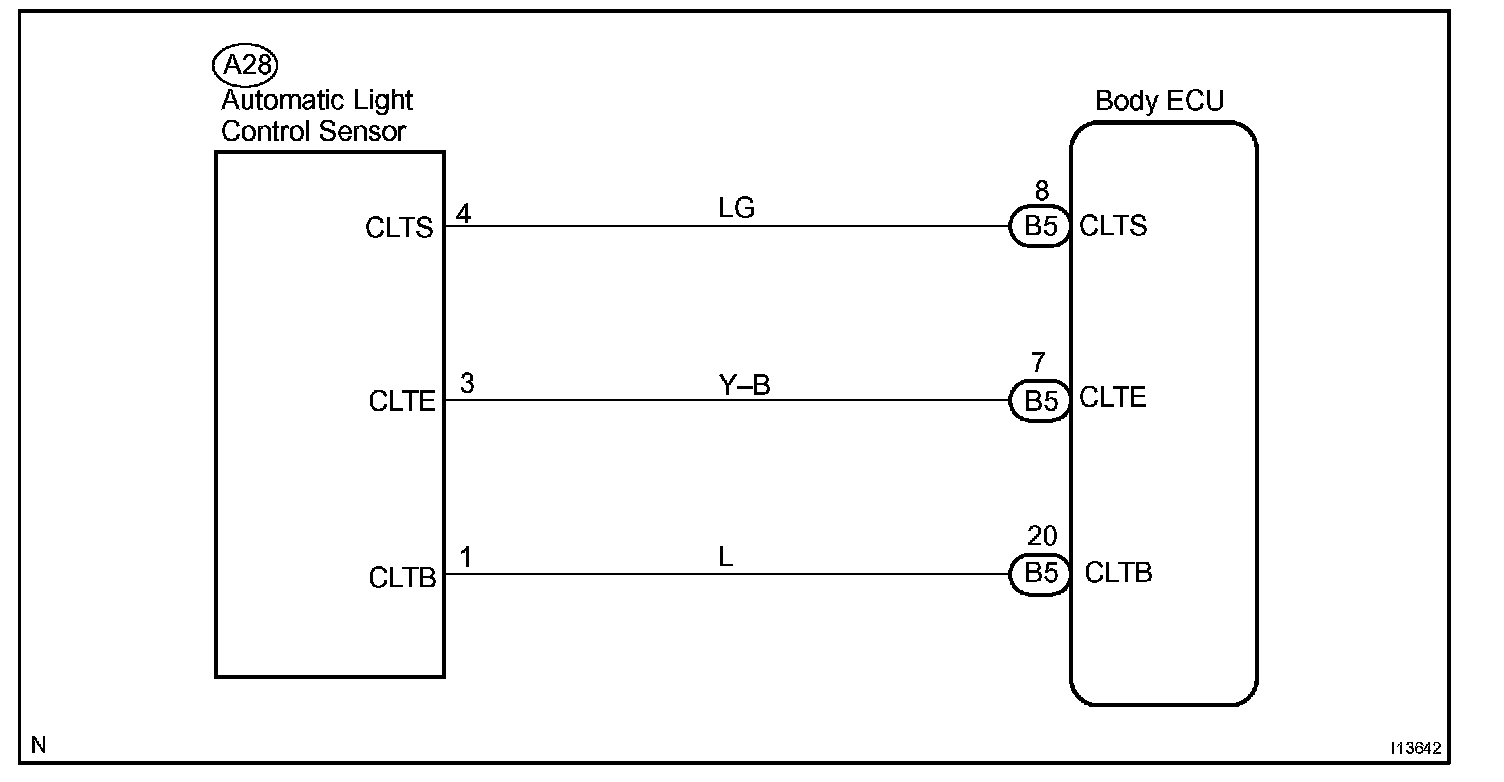

Wiring Diagram:

Step 1 - 2:

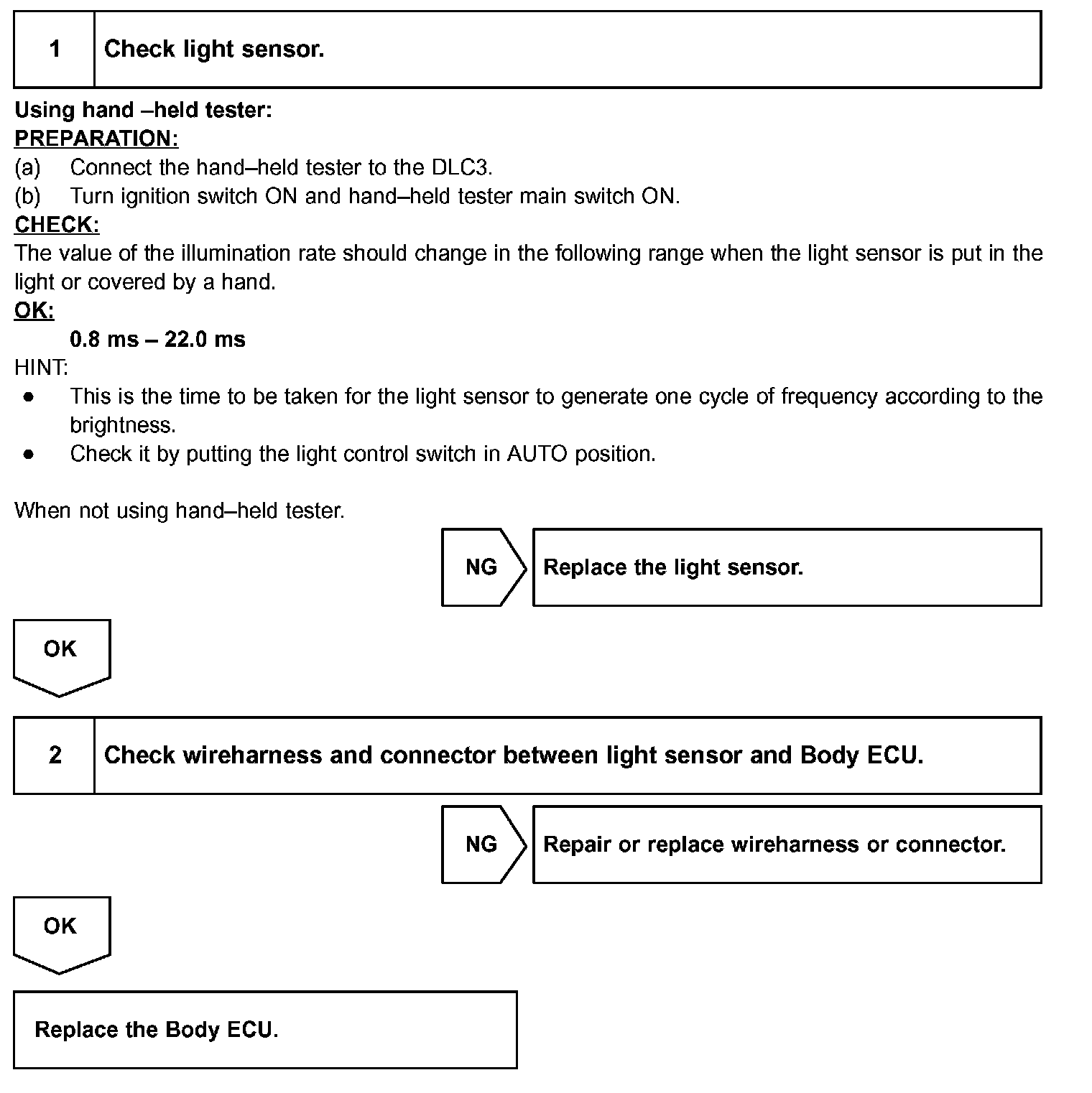

INSPECTION PROCEDURE
