DTC C1237 Wrong Number of Teeth at 1 of 4 Wheels

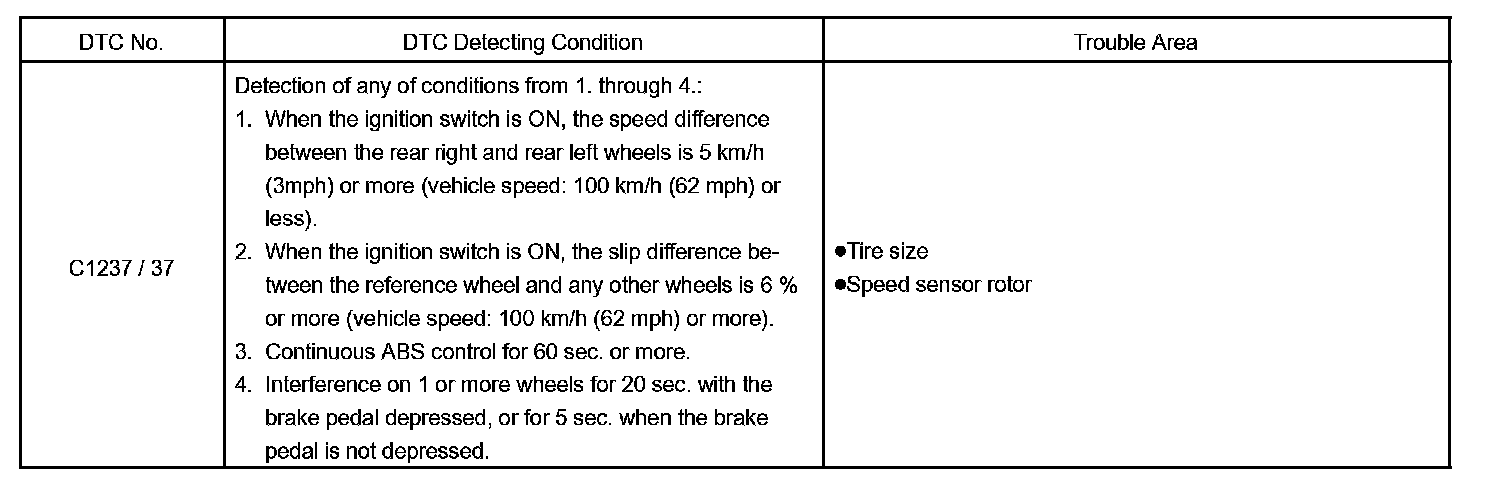

DTC Detecting Condition:
CIRCUIT DESCRIPTION

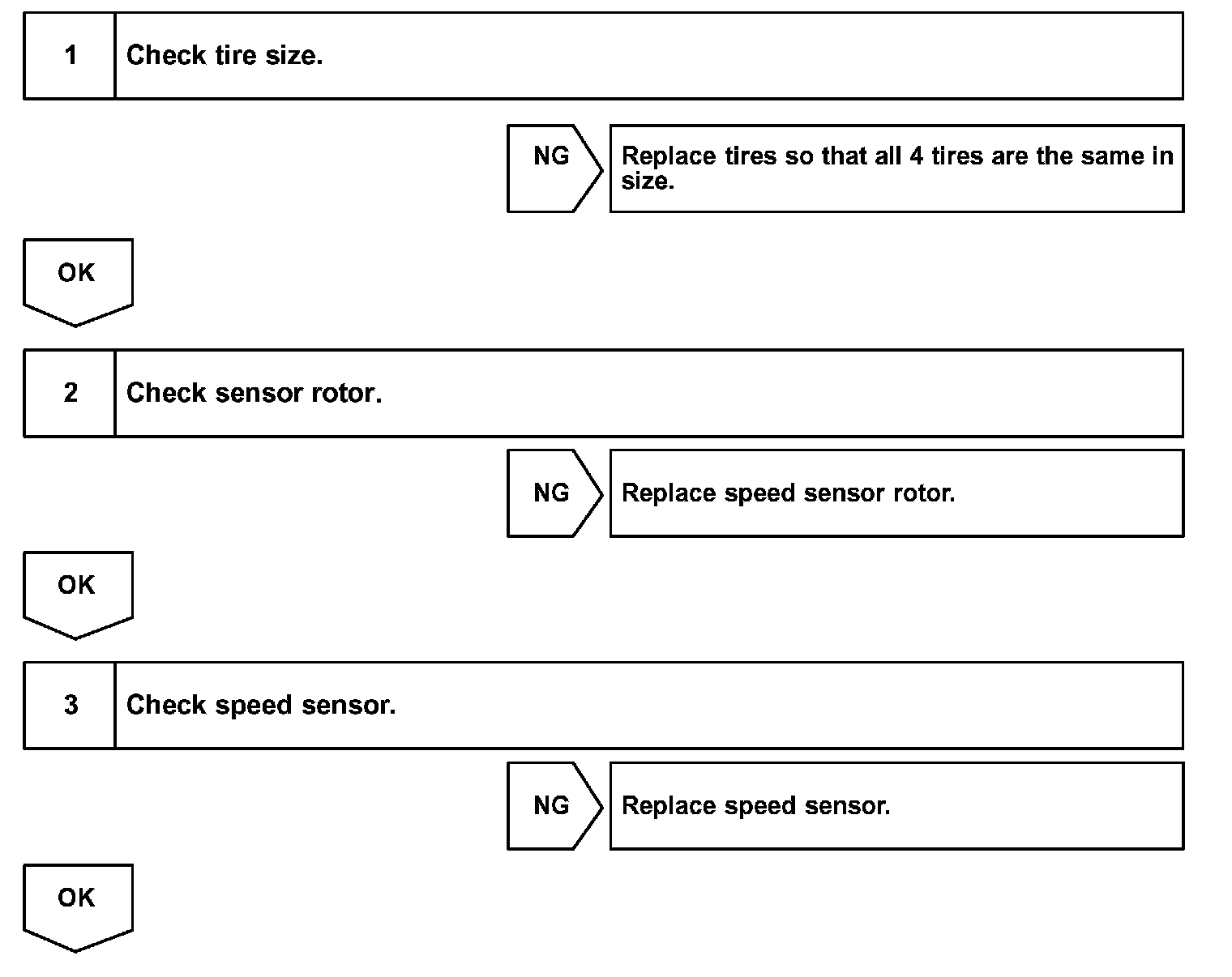

Step 1 - 3:

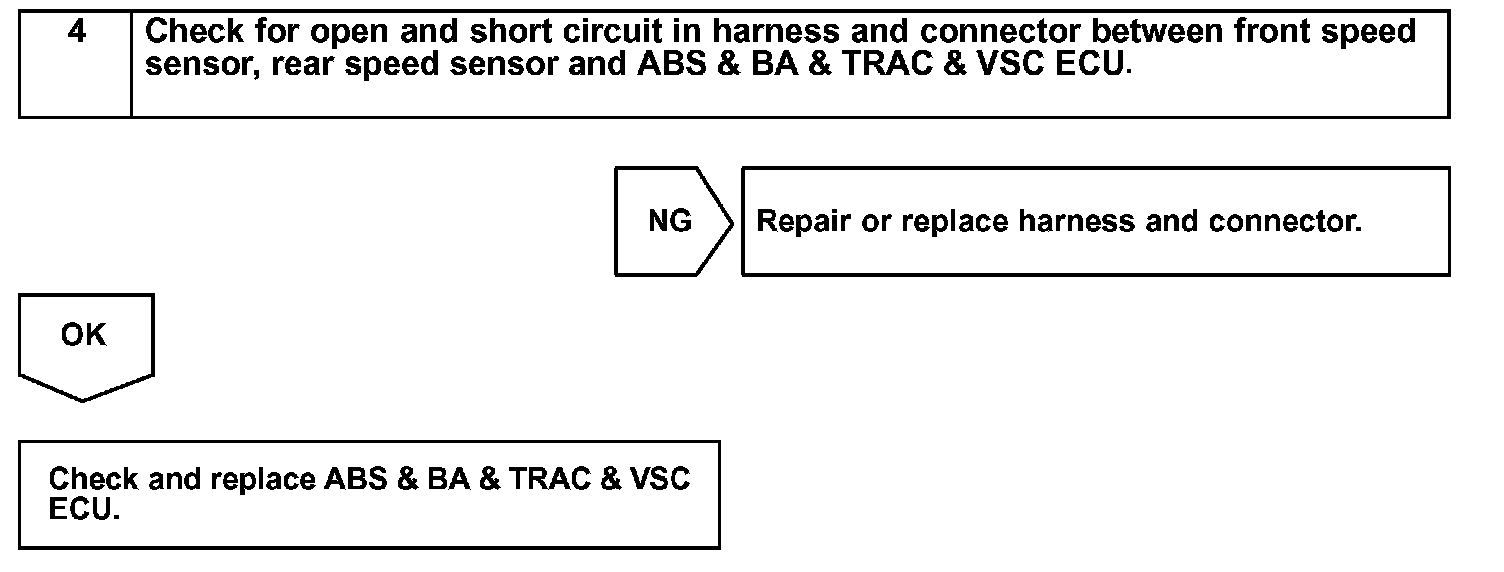

Step 4:
INSPECTION PROCEDURE
