Air Conditioning System

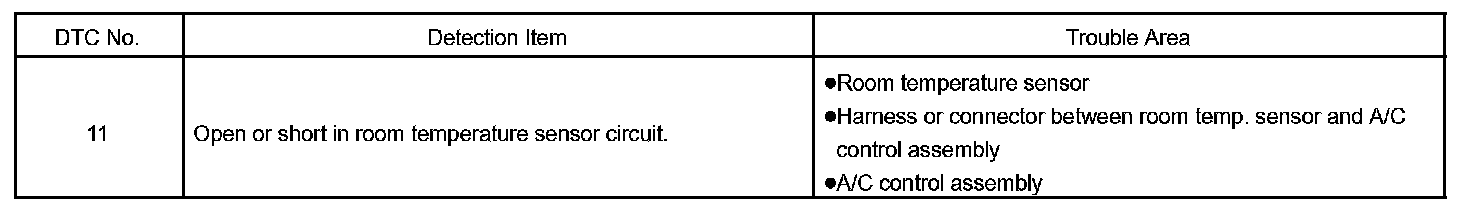

DTC 11 Room Temperature Sensor Circuit

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

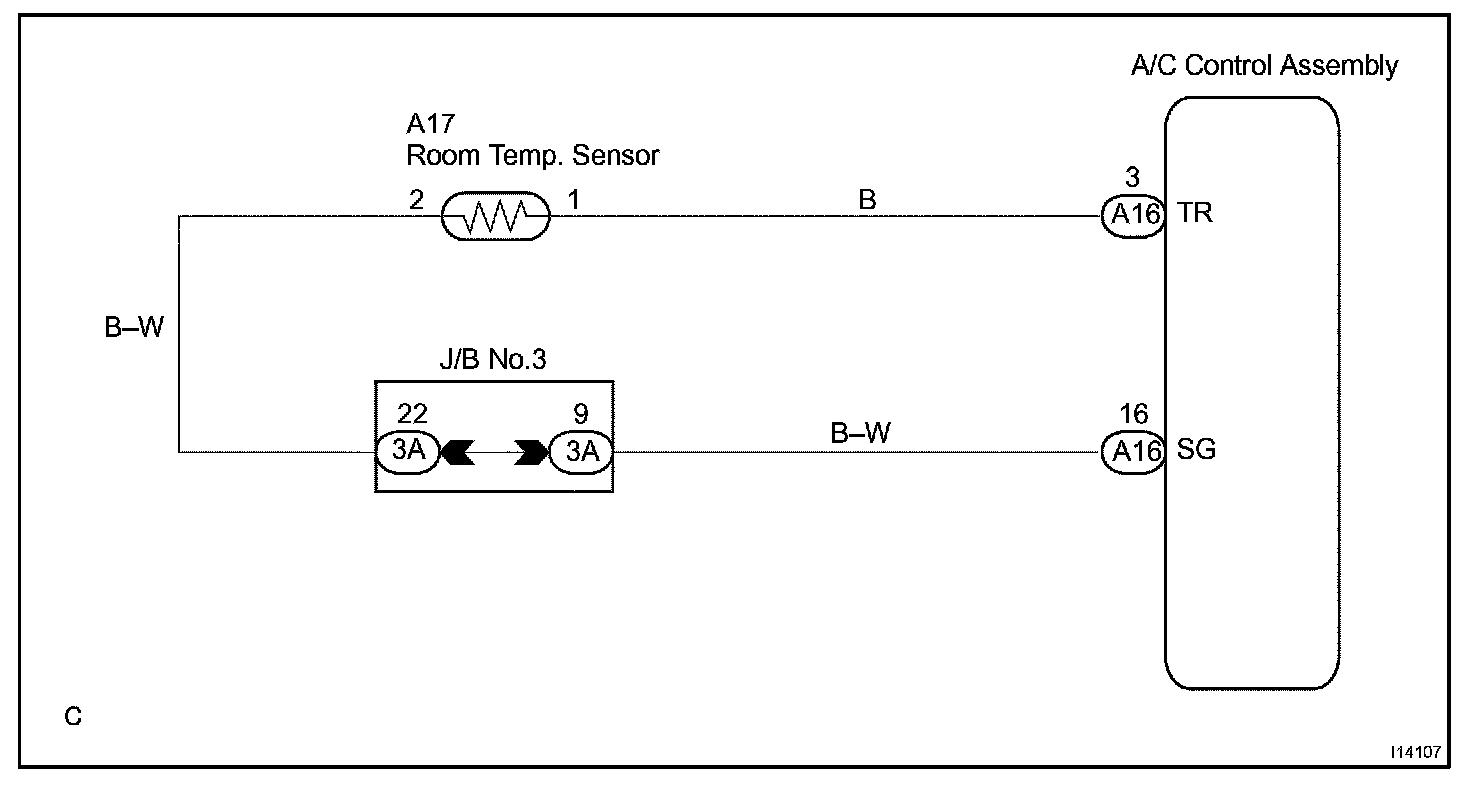

Wiring Diagram:

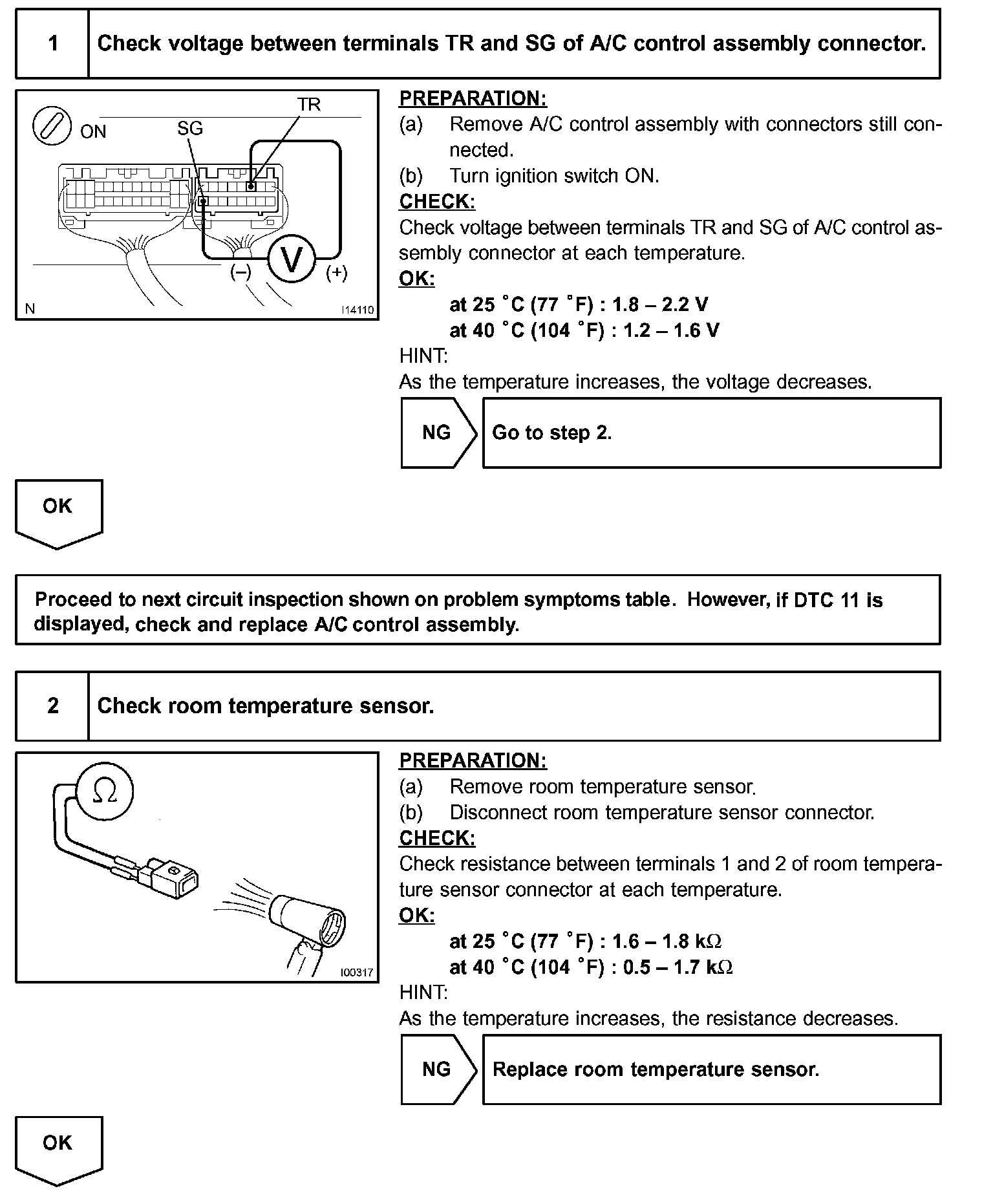

Step 1 - 2:

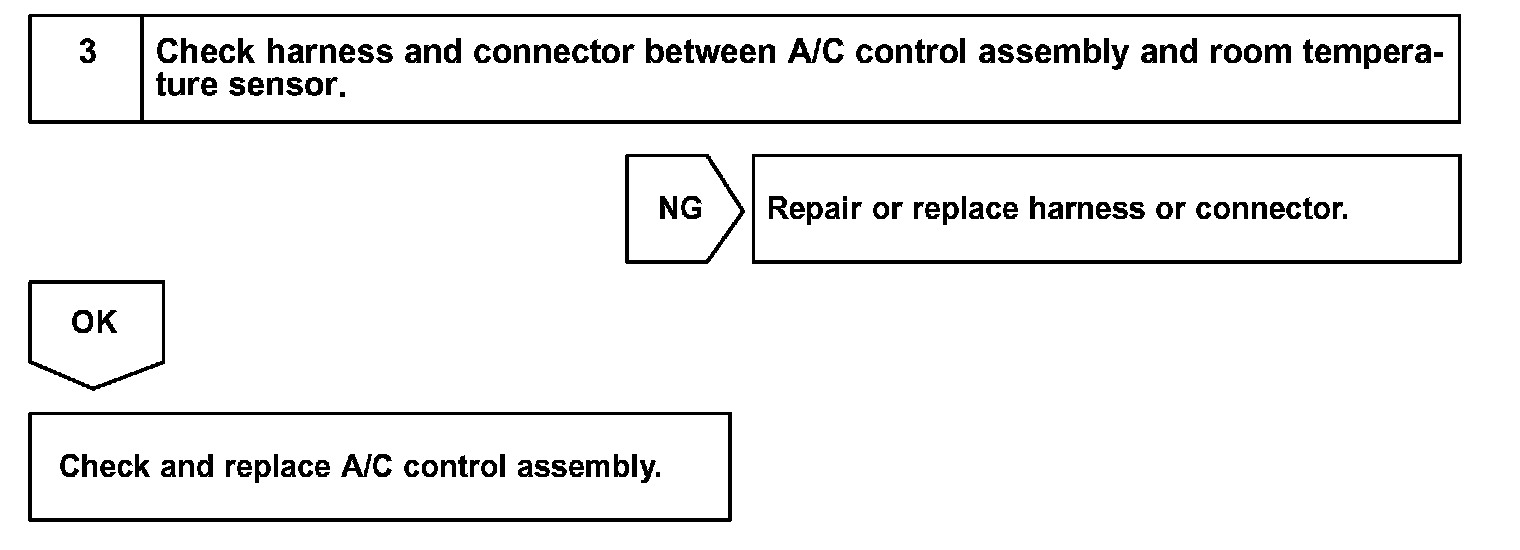

Step 3:

INSPECTION PROCEDURE
