Air Conditioning System

DTC 14 Engine Coolant Temperature Sensor Circuit

CIRCUIT DESCRIPTION

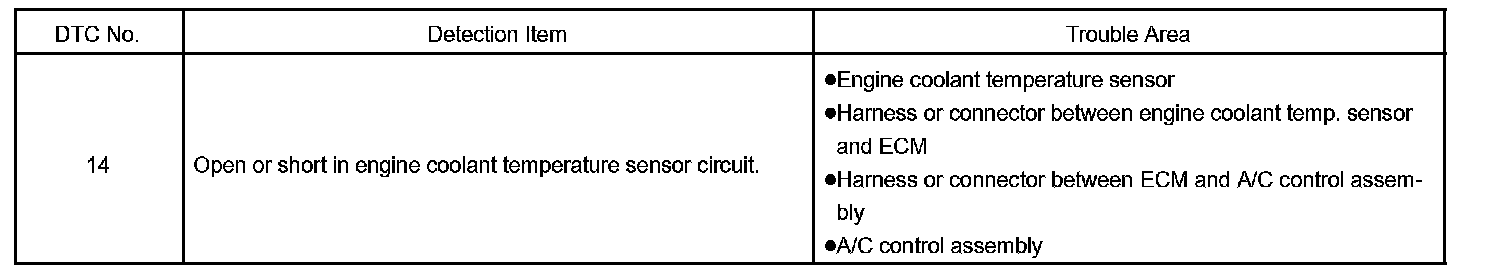

Detection Item:

This sensor detects the engine coolant temperature and sends the appropriate signals to the A/C control assembly. These signals are used for warm up control when the engine is cold.

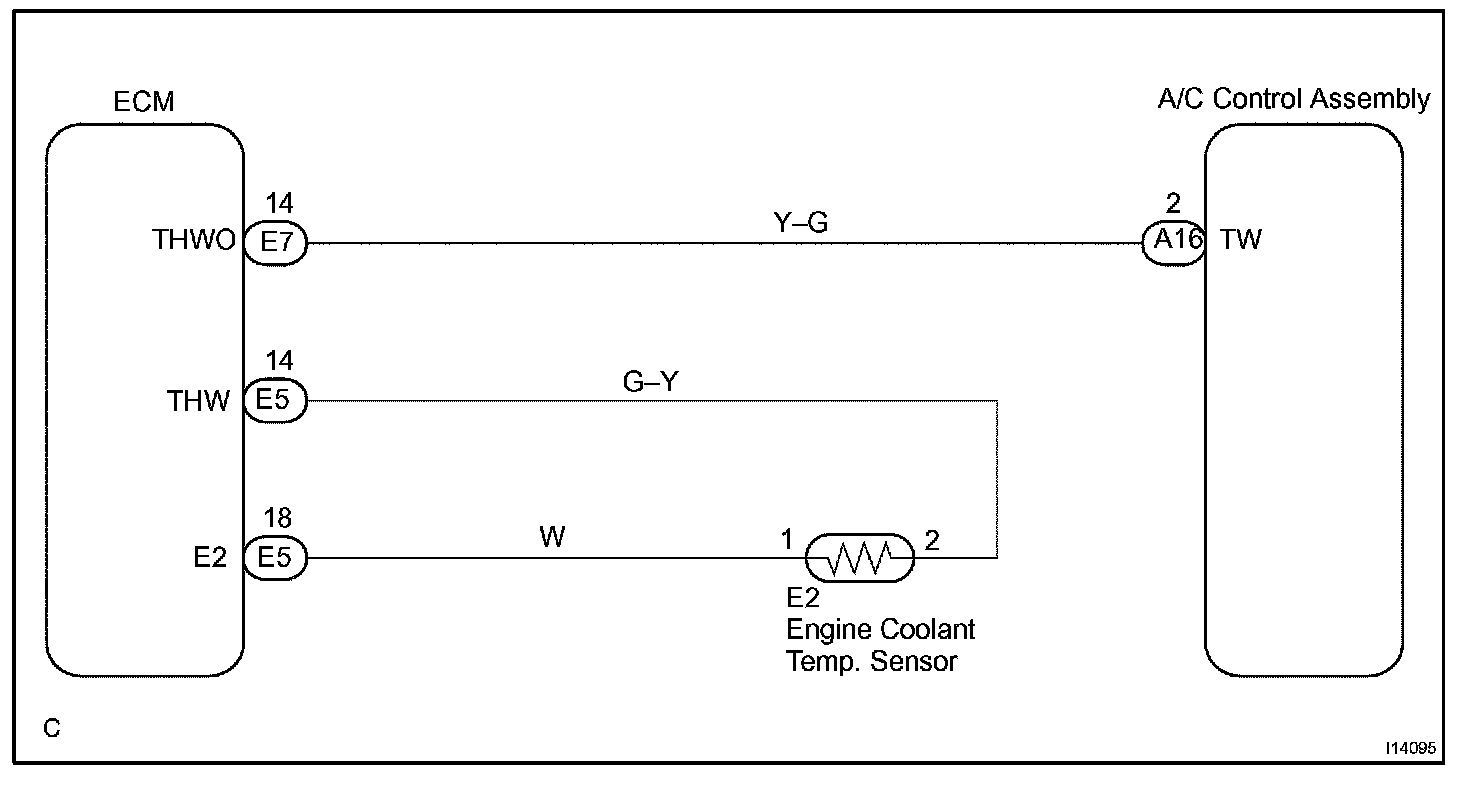

Wiring Diagram:

Step 1 - 2:

Step 3:

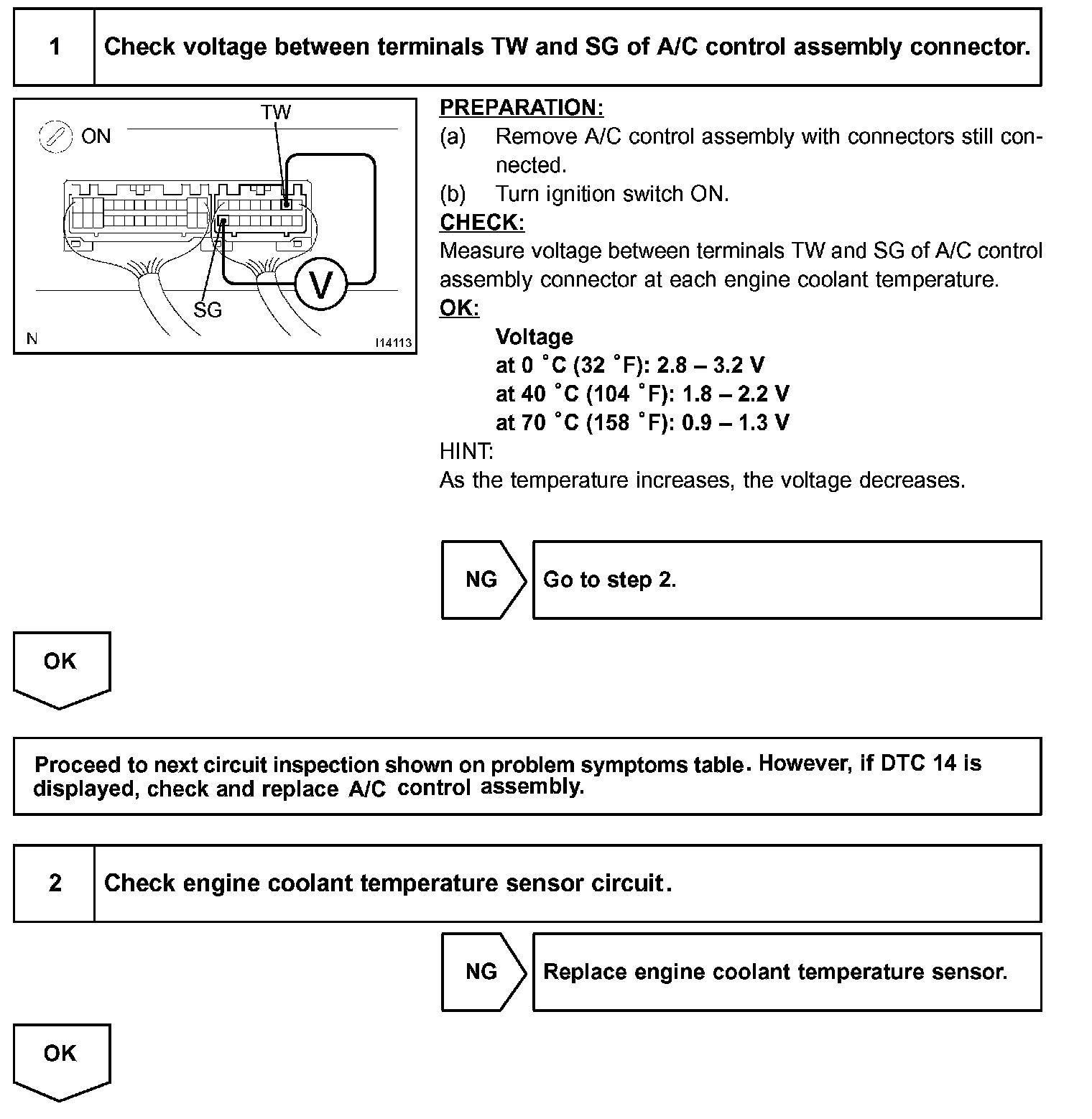

INSPECTION PROCEDURE
