Cruise Control System

DTC 32 Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

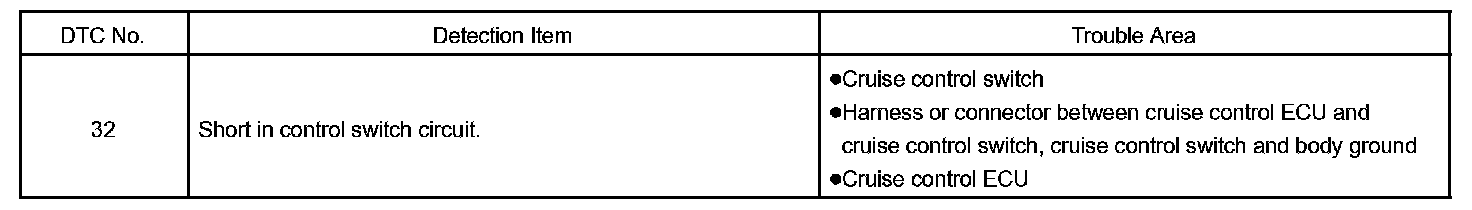

Detection Item:

This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

Wiring Diagram:

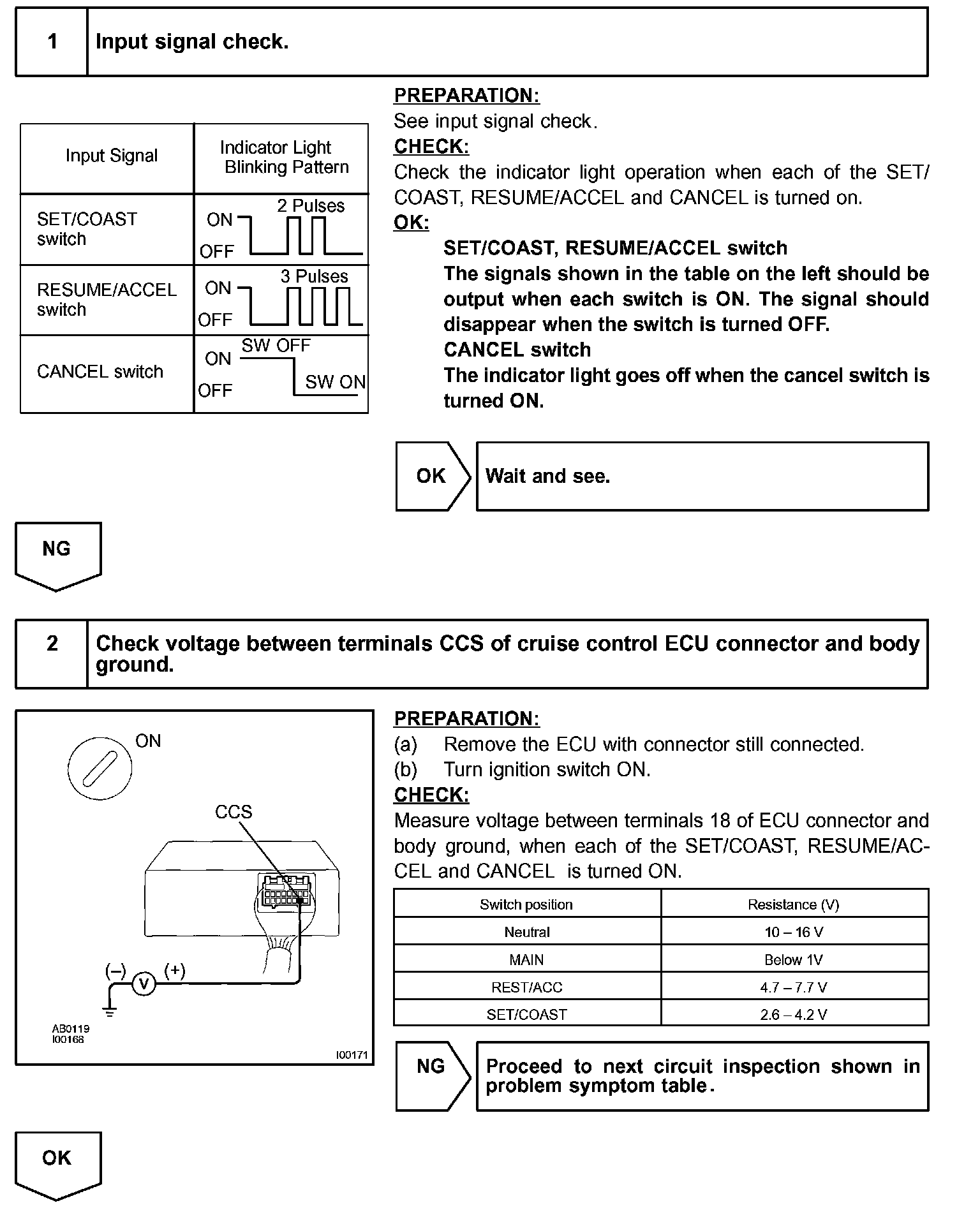

Step 1 - 2:

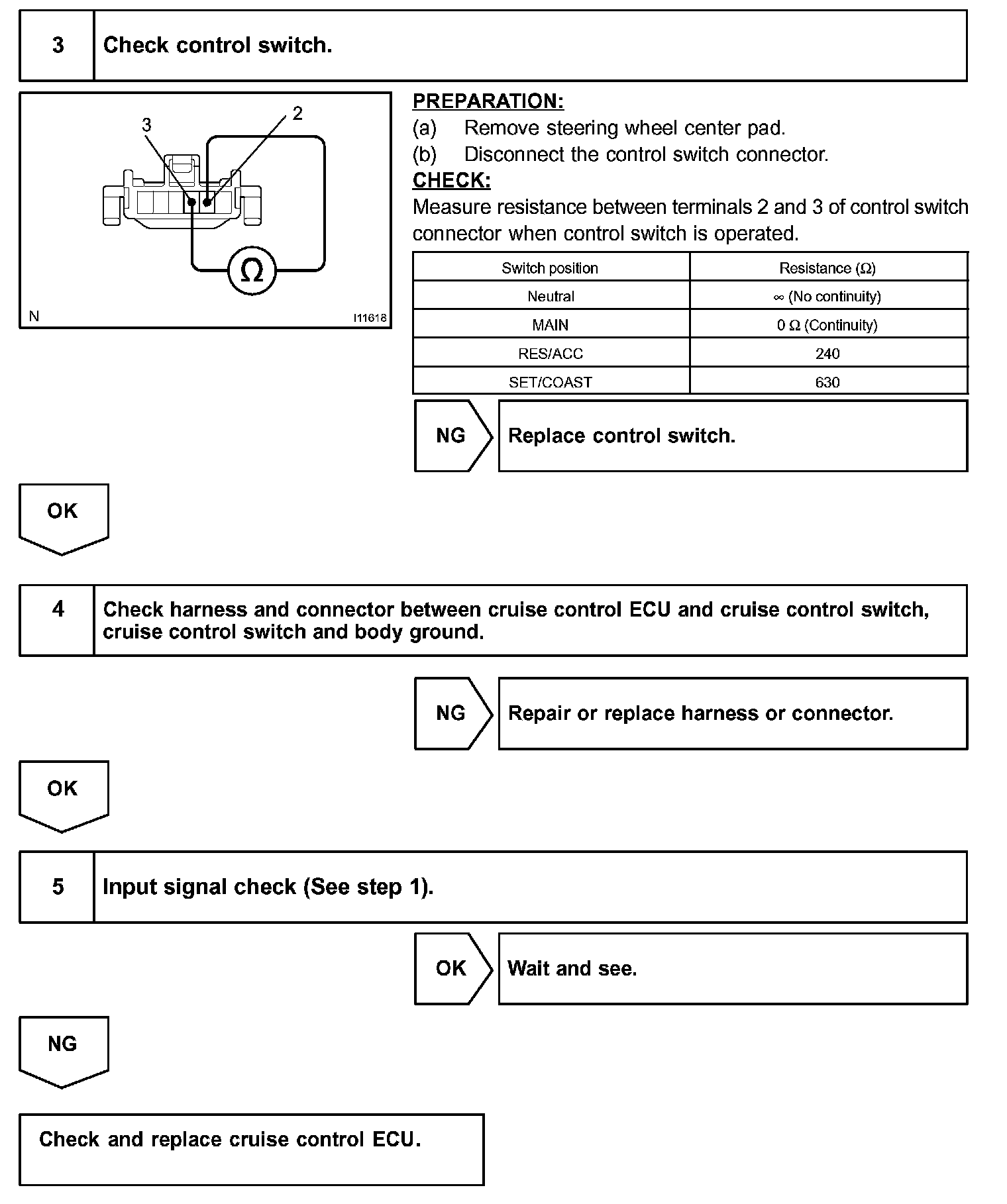

Step 3 - 5:

INSPECTION PROCEDURE
