DTC 37
>>
ABS W/EBD System
ABS W/EBD System
DTC 37 Speed Sensor Rotor Faulty

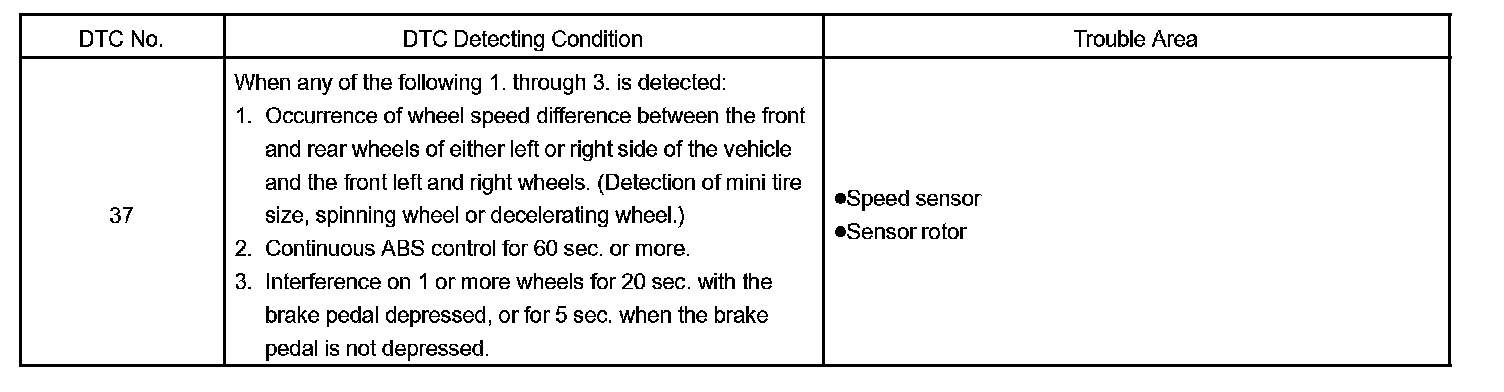

DTC Detecting Condition:
CIRCUIT DESCRIPTION

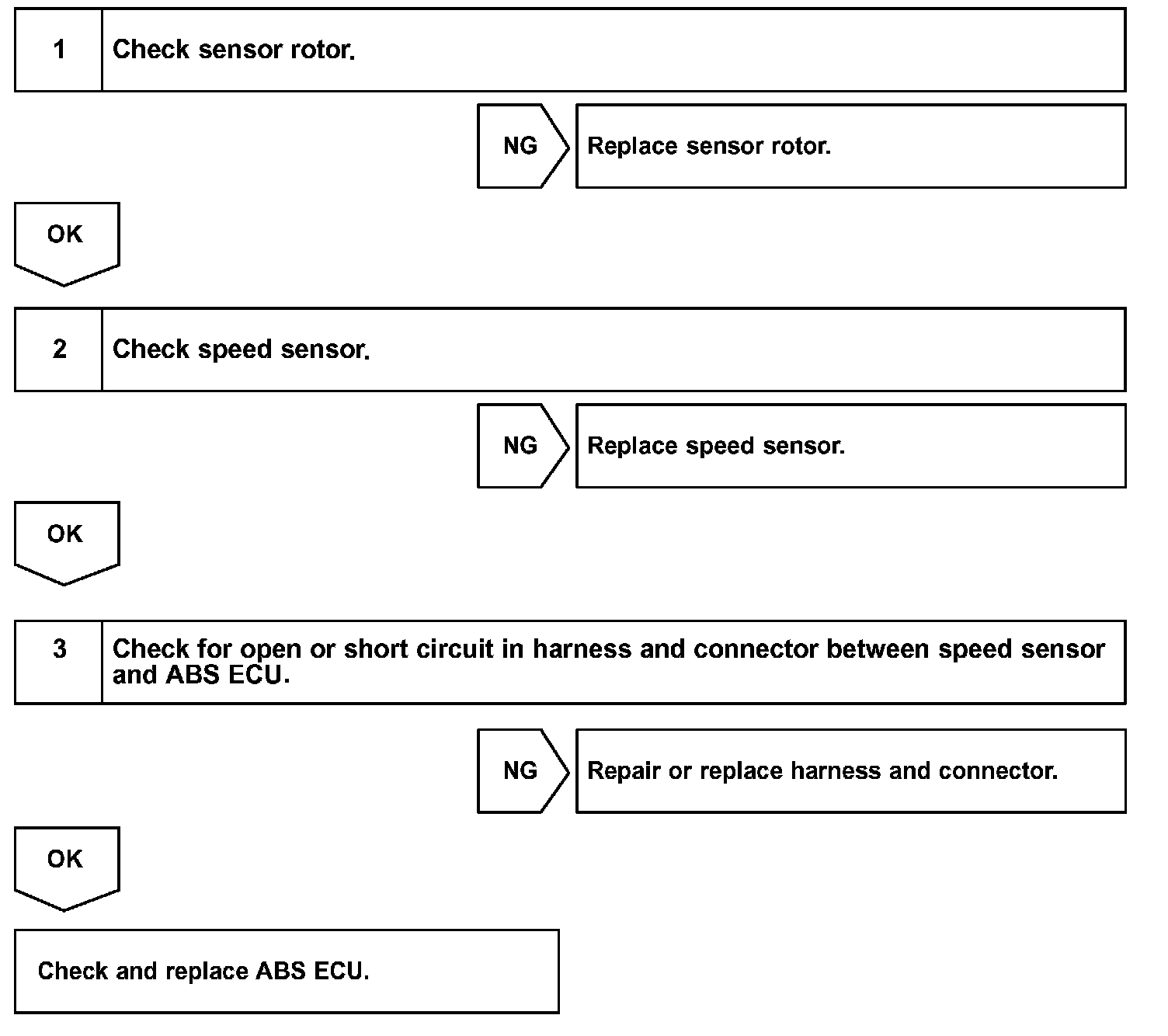

Step 1 - 3:
INSPECTION PROCEDURE
