ABS W/EBD System
DTC 41 Power Source CircuitCIRCUIT DESCRIPTION

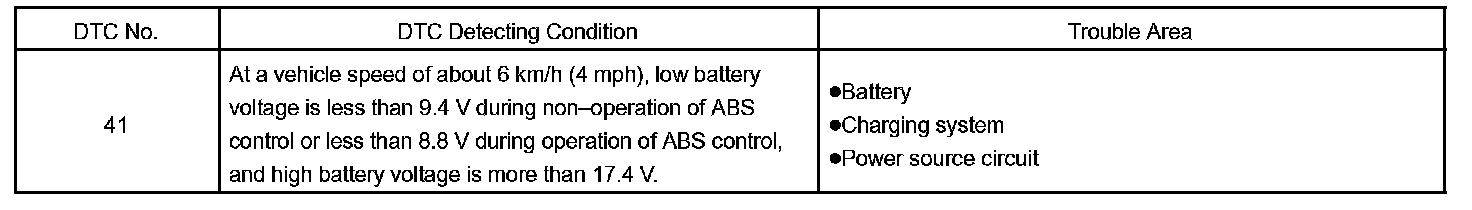

DTC Detecting Condition:
This is the power source for the ECU, hence the actuators.

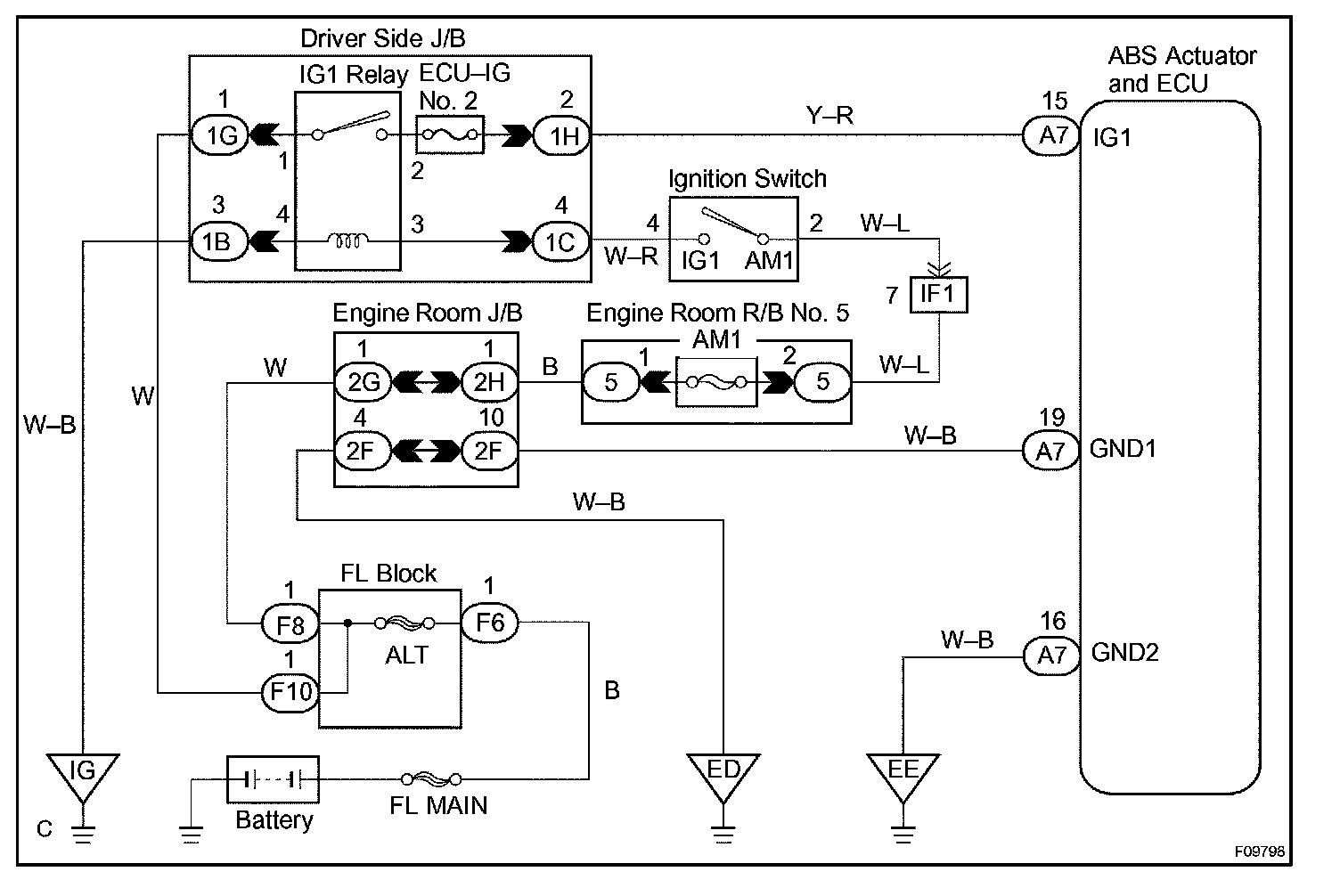

Wiring Diagram:

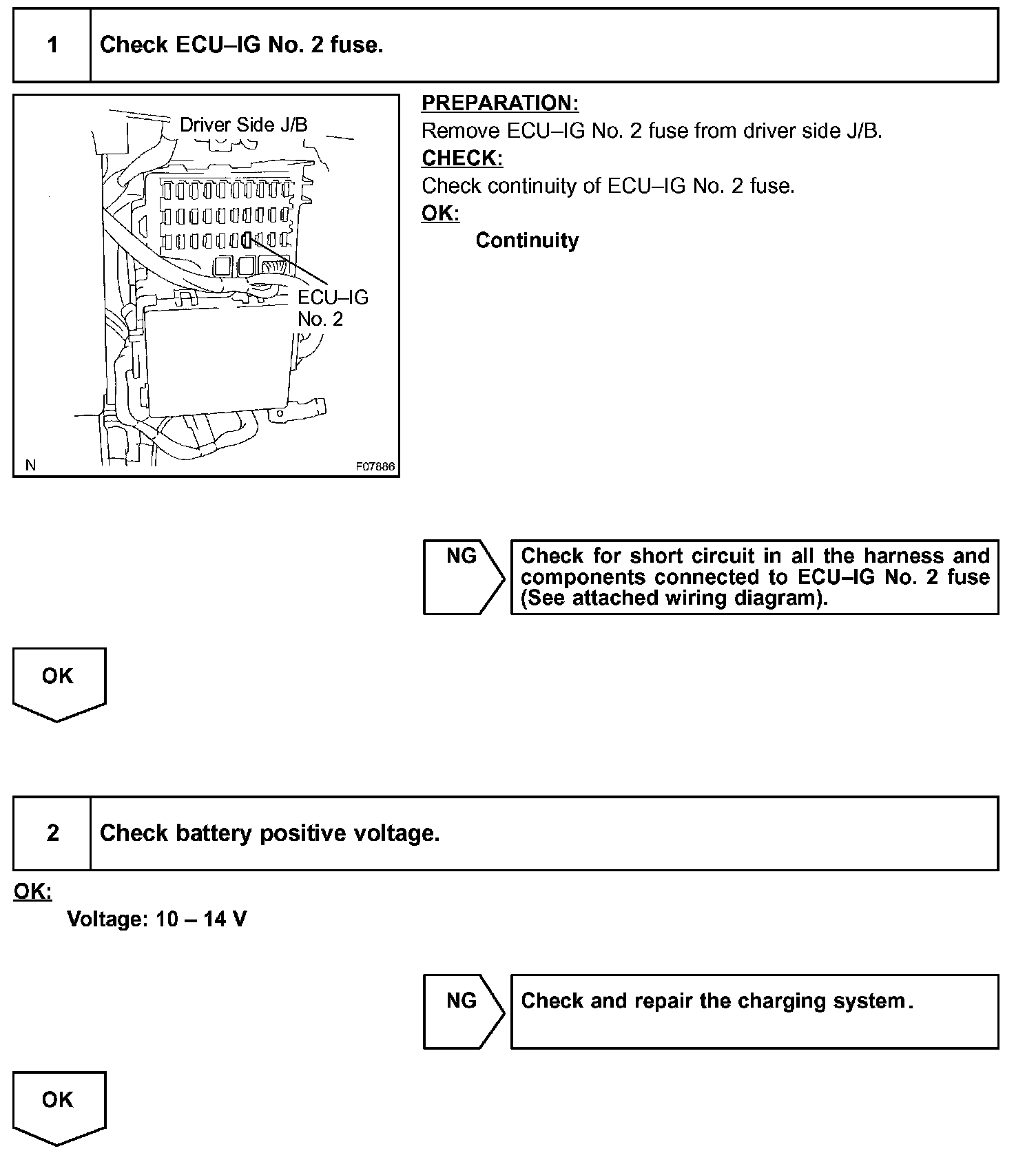

Step 1 - 2:

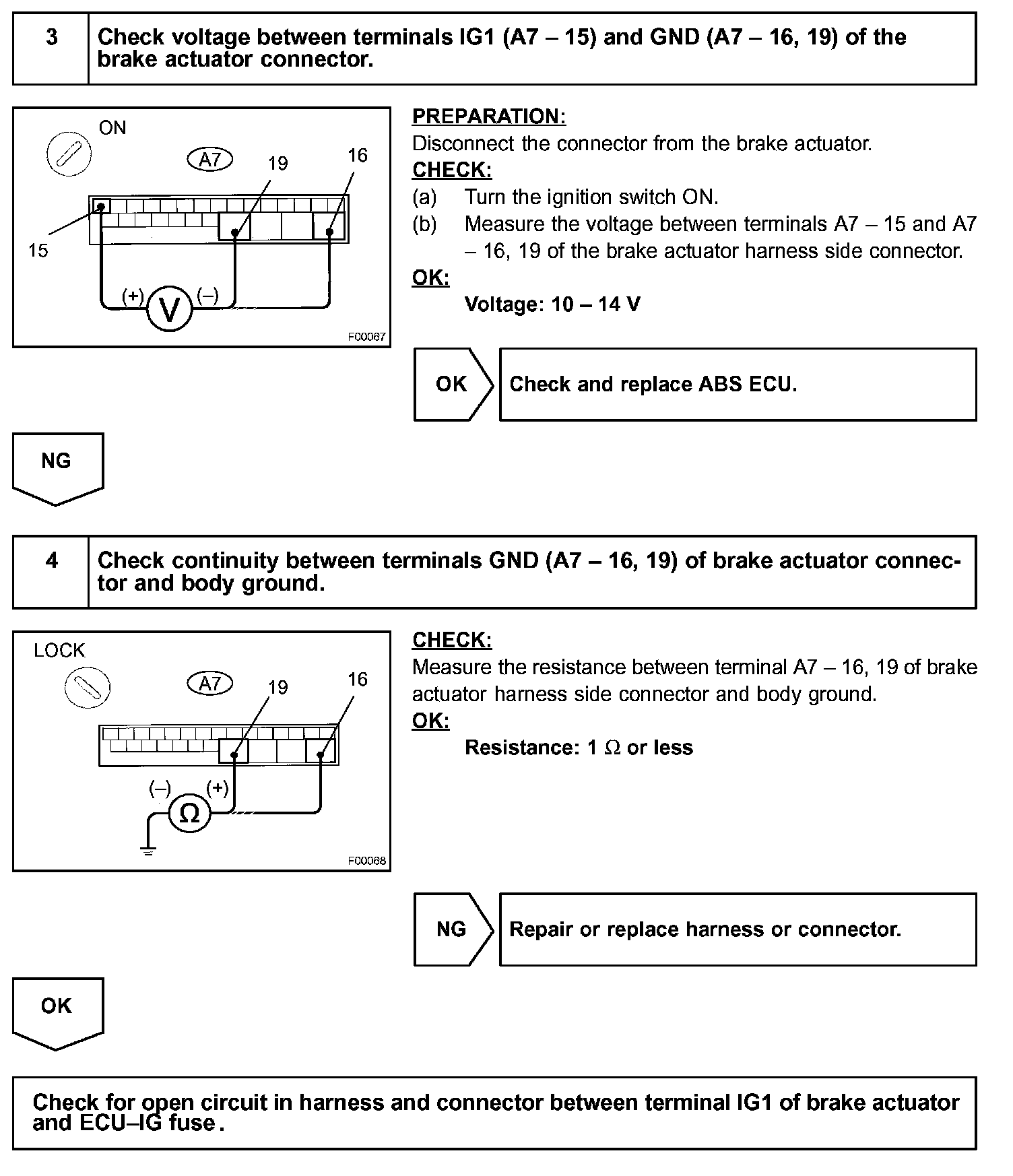

Step 3 - 4:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the actuators.
INSPECTION PROCEDURE
