Air Inlet Control Servomotor Circuit

DTC 42 Air Inlet Control Servomotor Circuit

CIRCUIT DESCRIPTION

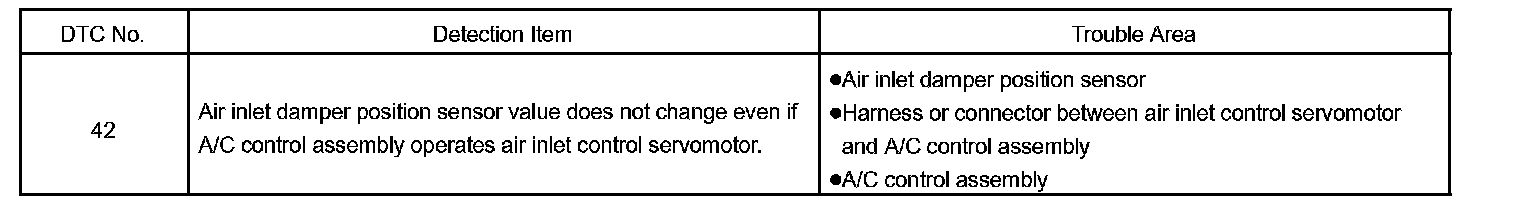

Detection Item:

The air inlet control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position

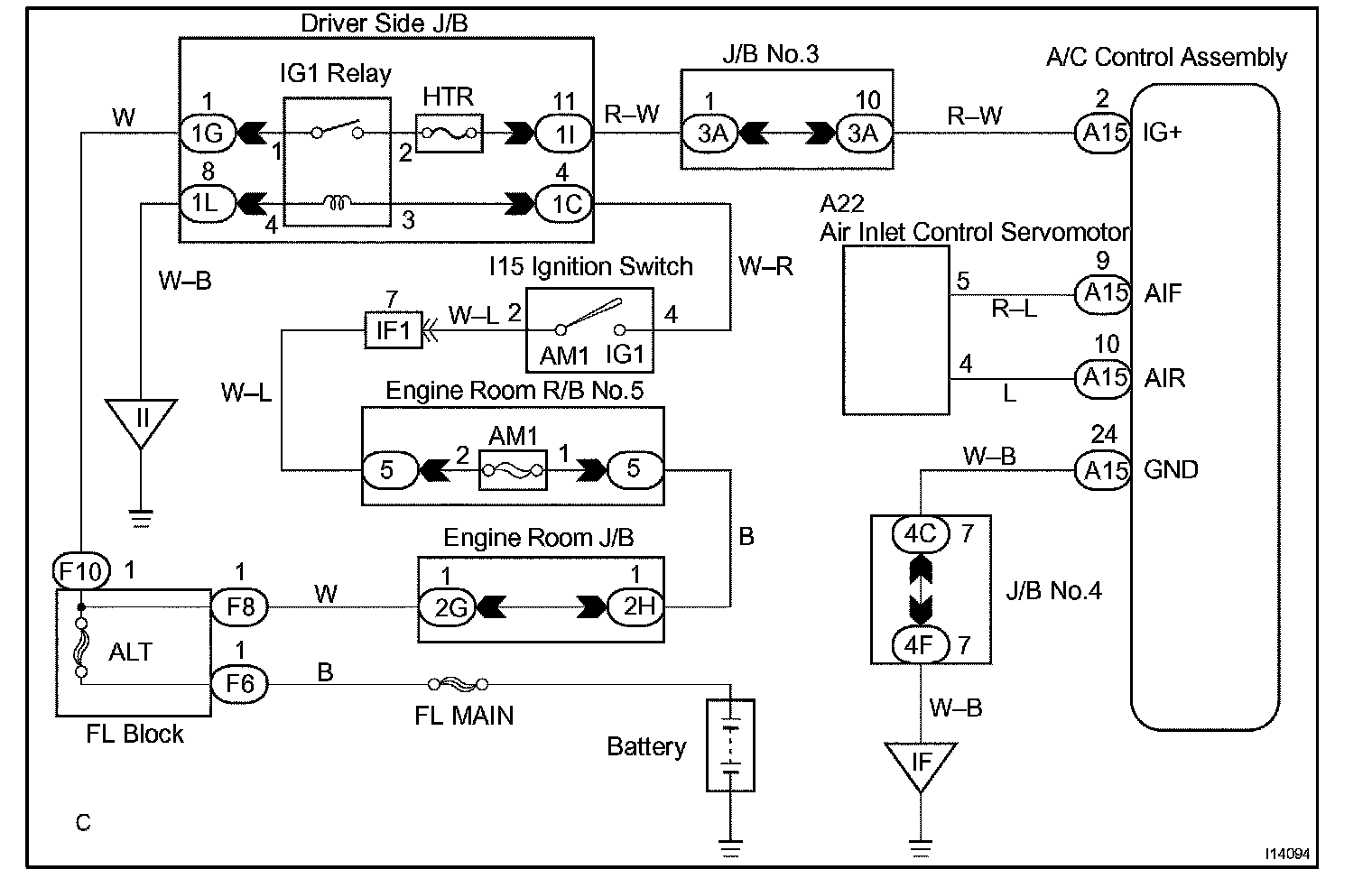

Wiring Diagram:

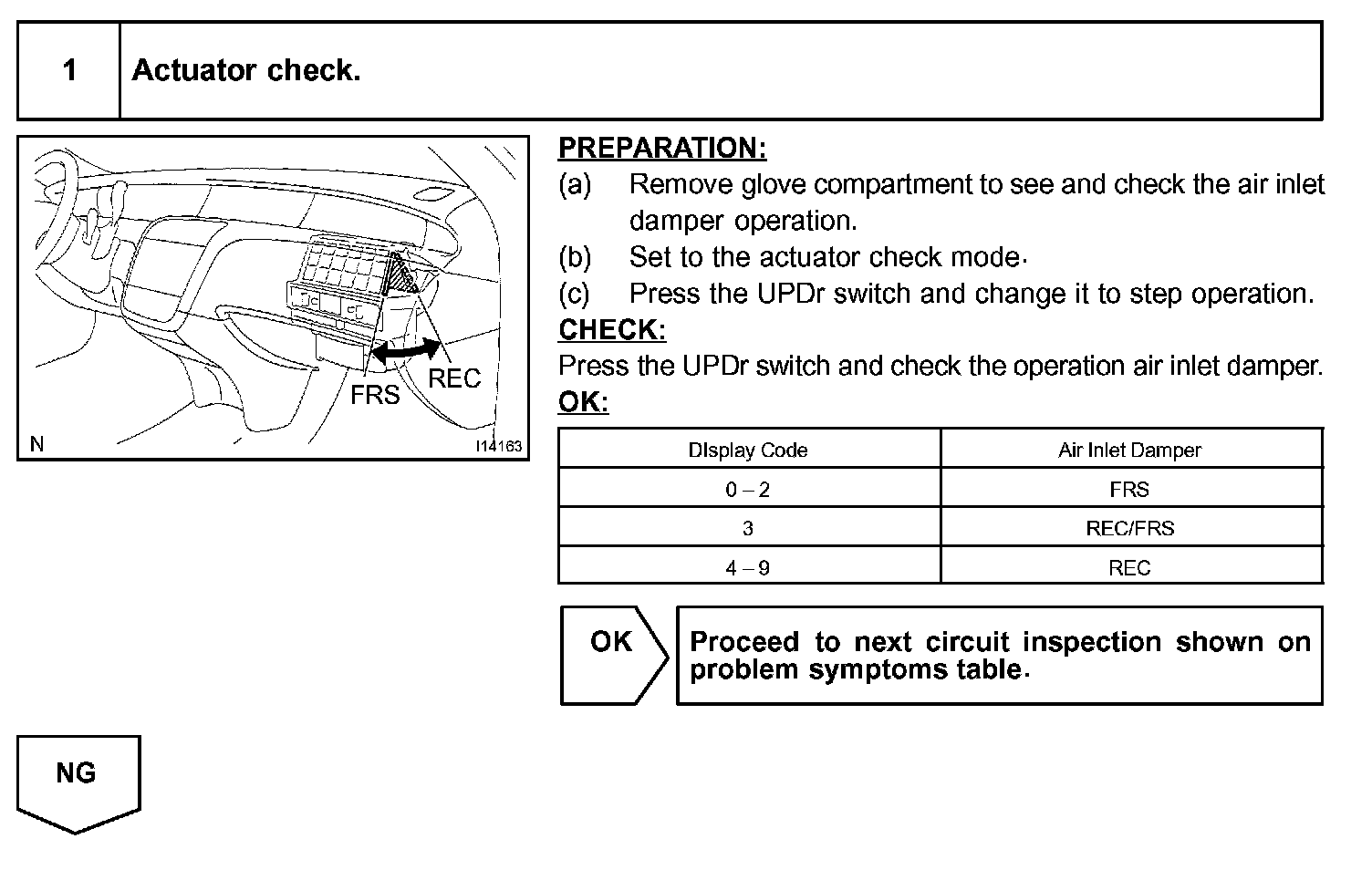

Step 1:

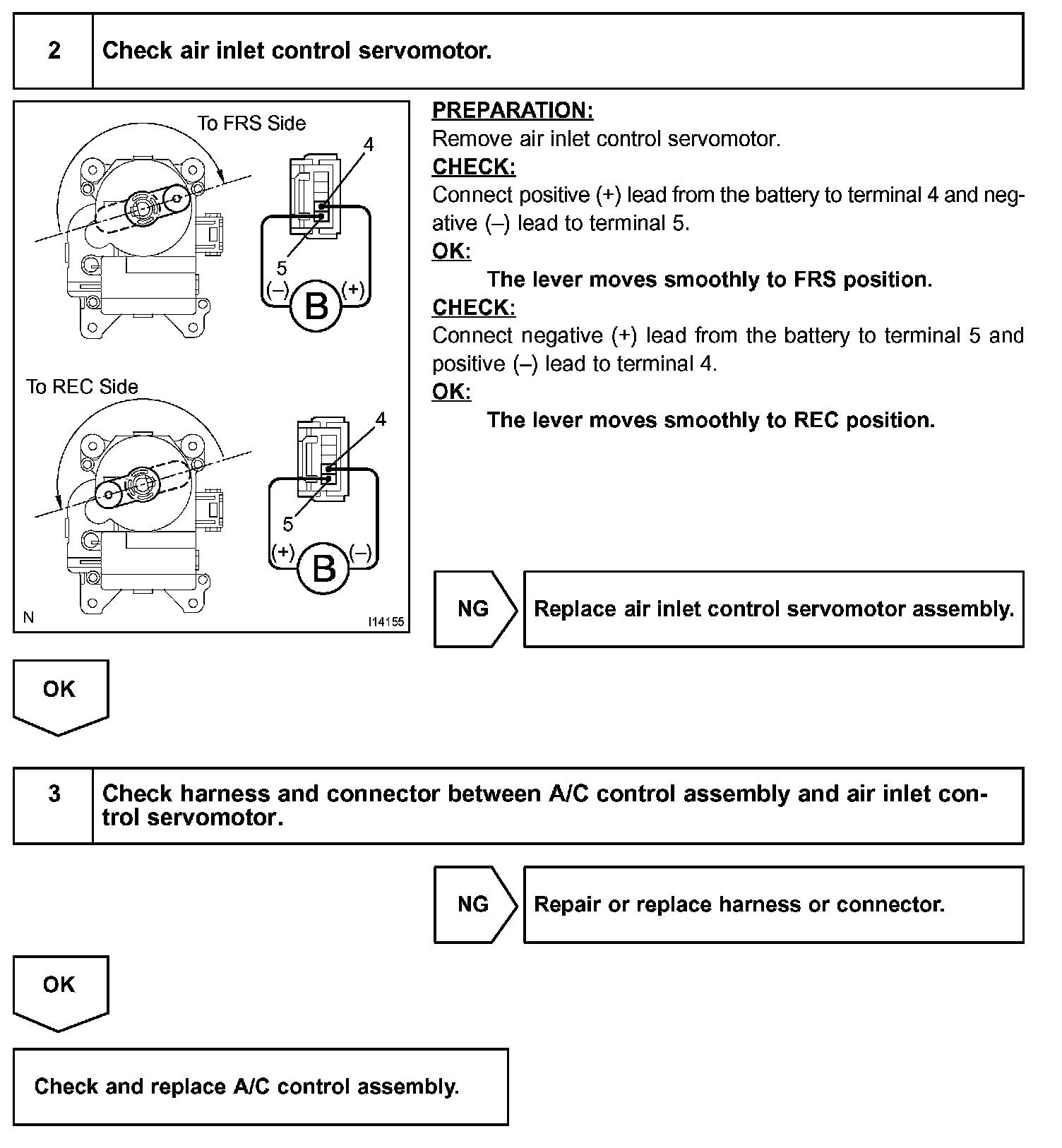

Step 2 - 3:

INSPECTION PROCEDURE
